20 Foot Horizontal Light Mast - Extend Equipment Over Work Area - Electric Winch - Skid Base

LARSON ELECTRONICSSKU: PL3-LM-20-HZ-EW
filler

Prix:
Prix réduit$21,658.00

Description

Specifications / Additional Information
LM-20-HZ Horizontal Light Tower Quick Summary
Length: 14-20` 14/20 Ft Light Mast
Weight: 380 lbs Steel Construction
Capacity: 150 lbs Electric Operation
Materials: Steel UL 508A
Operation: (1) 1,000lbs Electric Winches
Winch Voltage: 120V or 240V AC 50/60 Hz
Mounting: Skid platform Toll Free: 1-800-369-6671
Shipping: Common Freight Intl: 1-214-616-6180
Shipping Weight: 540 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '

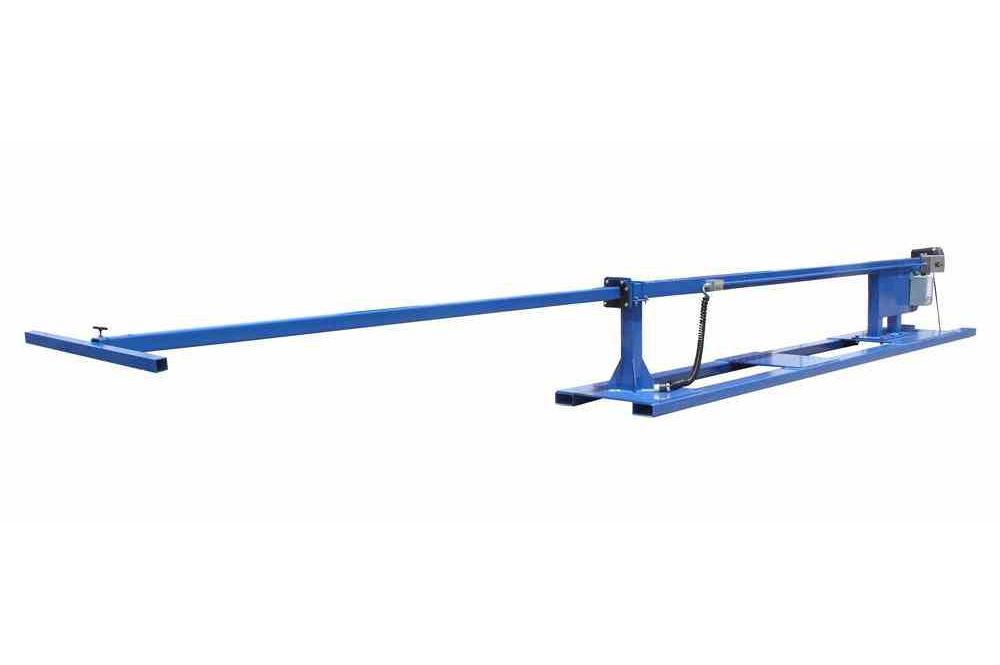

Made in the USA The Larson Electronics LM-20-HZ-EW Horizontal Light Mast provides a safe and effective way for operators to quickly extend lights, security cameras and other equipment up to twenty feet. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronics’ horizontal steel light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be extended above ground level effective application. This two section horizontal light boom can be extended to 20` for maximum area coverage and retracted to 14 feet when not in use. The mast boom is constructed of square steel tubing with a base section 14` in length and 3" by 3" by 1/8" thick and a boom section 8` feet in length and 2" by 2" by 1/8" thick with a 2` minimum overlap between stages. A 44" wide and 2" by 2" by 1/8" thick mounting platform at the end of the boom allows operators to mount equipment to the mast boom. The mast is extended and retracted via a lead screw that is driven by a 1,000 lb electric winch. The LM-20-HZ-EW uses a proprietary guidance system, which provide increased stability during deployment.
Click Photo to Enlarge
The mast is mounted to a skid mount platform with skid pockets from either end to aid in transportation. These masts are freestanding, but can be mounted to trailers or anchored down for long term use. A central platform allows operators to mount counterweights. A backplate below the mast control box provides convenient location for mounting customer provided panels, controls, and small transformers. Additional equipment can be factory equipped, such as transformers, controls, and lighting equipment. The skid platform is constructed of steel and powder coated blue or galvanized. This can be replaced with stainless steel, hot dip galvanized steel, or aluminum depending on the customer’s needs for an additional cost. Larger units are available upon request. Horizontal masts can be equipped with leveling outriggers, pickeyes, or trailer mounted. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , , , and . The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. This light tower weighs approximately 380 lbs, can easily support and extend 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 13 feet long, 4 feet wide, 3 feet tall and weighs 540 lbs. Suggested Applications: Deployment of lighting, security cameras, monitoring equipment, sensors in excavation, frac pads, marine vessels, mining, offshore, oil drilling rigs, oil field, oil refineries, power plants sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, waste treatment plants, and waste water facilities.
