Three Stage Light Mast - Trailer Mounted - Extends up to 30' - Mount Light Fixtures - Desert Tan

LARSON ELECTRONICSSKU: PL3-LM-30-3S-TLR-MOD2
filler

Prix:
Prix réduit$20,242.00

Description

Specifications / Additional Information

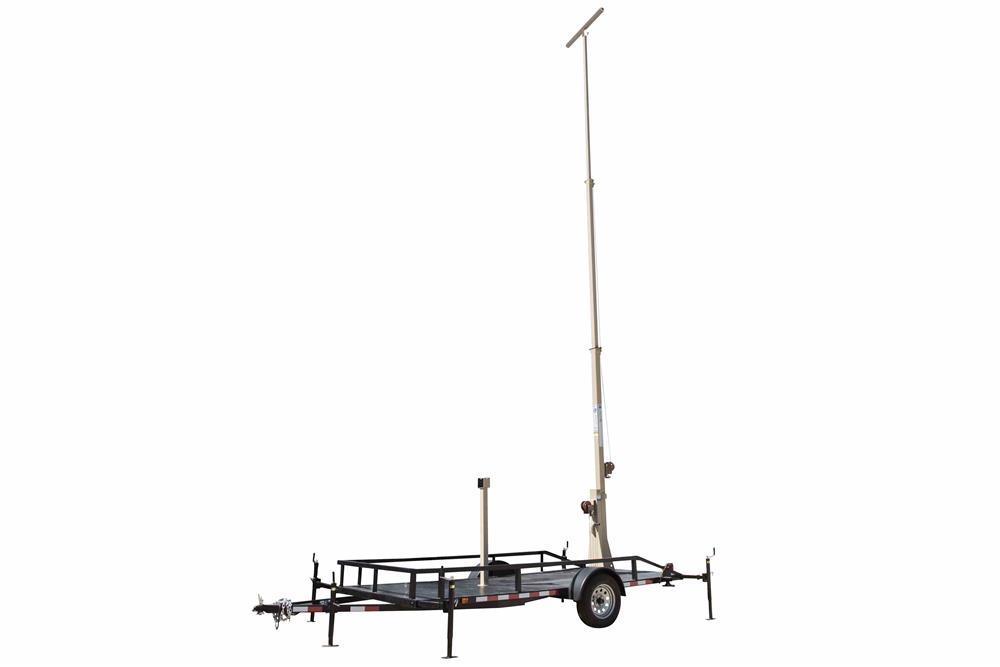

LM-30-3S-TLR-MOD2 Trailer Mounted 3-Stage Light Tower Quick Summary
Light Mast Specs 12` to 30` Light Mast
Tower Length: 12` to 30` Steel Construction
Mast Head Length: 44" Power Coated Finish
Capacity: 150 lbs Removable Mast Head
Materials: Steel (4) 1,000lb Retractable Outriggers
Finish: Powder Coated - Desert Tan 125 mph Wind Resistance
Operation: (2) 1,000lbs Hand Winches, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Galvanized Aircraft Cable

Trailer Specs
Materials: Steel
Trailer Dimensions: 14-L` x 6`-W trailer bed
Hitch: 2" Ball Coupler
Wiring: 4-Pin Flat
Axle: 3,500lb
Suspension: 5,400 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-1200 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: ~16.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-1700 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics LM-30-3S-TLR-MOD2 trailer mounted fold over 3-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to thirty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. The entire assembly is mounted onto a 14` single axle trailer, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping three stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 12` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 12` in length and 4" by 4" by 1/8" thick, middle section 9.5` in length and 3" by 3" by 1/8" thick, and an upper section 8.5` in length and 2" by 2" by 1/8" thick. Each section has 1` foot of overlap. The mast is elevated using an included 1,000lb rated hand winch with 3/16" galvanized steel cable and extended to its full height using a second 1,000 lbs winch. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for standard payloads up to 150 lbs. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.  The LM series of towers are powder coated for desert tan for corrosion resistances and aesthetics. This light mast is mounted to a 14` by 6`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lbs of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 14`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Retractable outriggers with 1,000 lb manual crank jacks and tail lights. Manual 1,000 lb hand crank winch for elevating and folding over the light mast on the LM-30-3S-TLR-MOD2. Mast support bracket for securing the mast boom in the fold-over position during transportation.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM-30-3S-TLR-MOD2 fitted with four HID-22-SL-REM 1000 Watt Metal Halide Light Fixtures Ready to Ship The LM-30-3S-TLR-MOD2 fitted with four EPL-HB-150LED-RT 150 Watt Explosion Proof LED Light Fixtures
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
This light tower assembly weighs approximately 1200 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier or flatbed. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. For example, the LM-40-4S is another model that reaches to a length of 40`, with base section 11.25` in length, lower section 11.25` in length, an upper section 11.25` in length, and a top section 11.75` in length. Larson Electronics can custom build these towers to meet your overall and collapsed height requirements. We also offer a choice of either the manual or electric winches, finishing, and equipped light heads. Winch options include 1,000 lbs hand winches (included standard) or optional electric winches for standard light towers, and heavy duty winches and hoists for high payload units. Mast location on the trailer bed can be tongue mounted, front of the trailer bed, or center of the trailer bed. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W HID-22-SL-REM or 1500W HID-22-15M-SL-REM Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , , , and .
