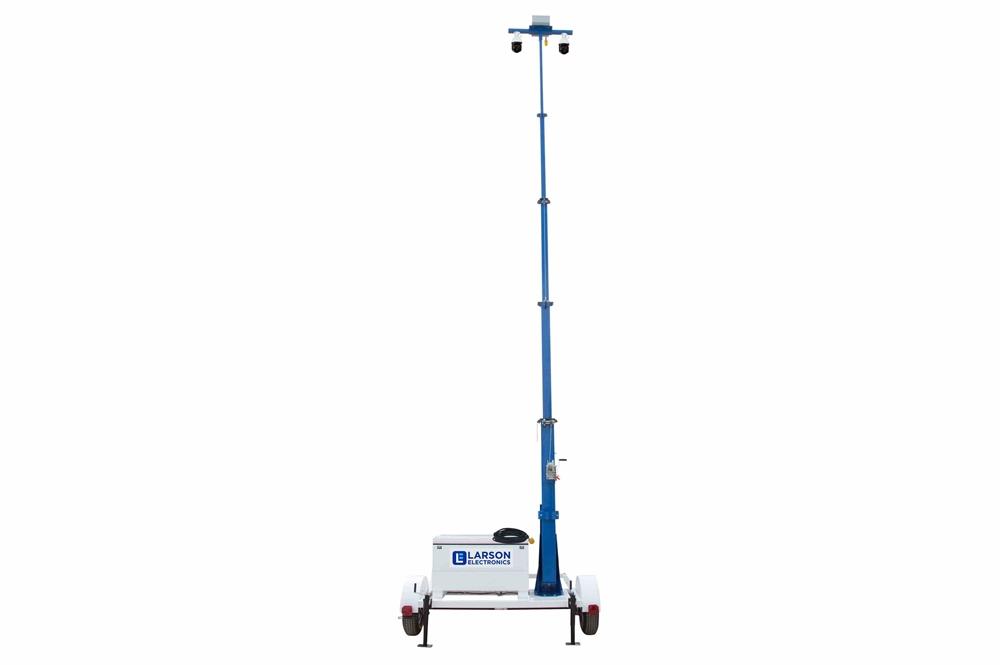

30' Telescoping Security Tower - 7.5' Trailer - (2) PTZ Cameras, 4TB NVR - 4G Router/Wi-Fi - 50' Cord

LARSON ELECTRONICSSKU: PL3-LM-30-5S-TLR7-2XPTZ.23X-4TB-AP-W4G
filler

Prix:
Prix réduit$58,594.00

Description

Specifications / Additional Information
LM-30-5S-TLR7-2XPTZ.23X-4TB-AP-W4G Trailer Mounted Security Mast Quick Summary
Mast Specs 8.75` to 30` Light Mast
Length: Telescoping from 8.75` to 30` Steel Construction
Weight: - Powder Coated Finish
Capacity: 150 lbs Removable Mast Head
Materials: Steel (4) 1,000lb Outriggers
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: 3,500lbs Manual Winch, Electric Optional Day/Night Monitoring
Cable: 3/16" Aircraft Cable 328` IR Distance
Mounting: 1/4" thick, 18"x18" Base Plate Full-HD, 23x Optical Zoom
Anchor Bolts: (6) 9/16" Bolts Motion Detection
  FCC NVR
PTZ Camera Specs Embedded Linux Operating System
Unit Type: (2) Security Cameras CAT5E Networking Cable
Camera Dimensions: 14.38" H x 7.12" D Wi-Fi and 4G/LTE Router
Camera Weight: 9 lbs Extended Coverage via External Antenna
Total Watts: 46W (Max) Customer-provided 4G Service
Voltage: 24V AC (PoE - 802.3at) NEMA 3R Job Box w/ Padlock
Image Sensor:  CMOS
Connectors: 1.0Vp-p, 75 Ohm, BNC
Effective Pixels: 2.1 MP, 1920 x 1080 Resolution
Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR
Electronic Shutter: 1 ~ 1/10,000s
Lens: 4.7-94mm Varifocal Lens
Angle of View: 58.3° (Wide) ~ 3.2° (Tele)
Pan: Endless, 360°
Tilt Control: 190° Minimum
Optical Zoom: 23x
Day/Night: ICR
IR Viewable Distance: 328` (850 nm)
Video Framerate: 1080p @ 30fps
Video Offload: MP4
Video Output: (1) BNC
Language: English
Ambient Temperature Range: -22°F to 149°F
Housing Materials: Aluminum
Lens Material: Polycarbonate
Mounting: Tower
Cord: 50` 12/3 SOOW Cord w/ Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail

NVR Specs
Device Type: Network Video Recorder
Storage Capacity: 4 TB SATA Hard Drive
Channels: 8
Camera Resolution Support: Up to 8MP
Installation Type: Plug and Play
Incoming Bit Rate: 40Mbps
Outgoing Bit Rate: 80Mbps
FPS: 60fps Per Channel
Compression Format: H.265, H.264, H.264 OVC
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA
Export Format: MP4
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear)
Two-way Audio Input: 1-ch, RCA
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at
Alarm Input: 4x (Rear Panel), Camera Dependent
Alarm Output: 1x (Rear Panel), Camera Dependent
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart
Monitor: 14" HD Screen w/ Anti-glare Monitor
Mouse: Included
Power Requirements: 100 ~ 240V AC
Housing Material: Aluminum
Operating Temp: 14°F ~ 131°F
Networking Cable: CAT5E
Remote Connectivity: Yes w/ Customer-provided 4G Service

Router/Antenna Specs
Router Type: 4G/LTE Rugged Router
Modem: 600 Mbps Minimum
Built-in Security: Yes
Monitoring: Uptime w/ Real-time Alerts
4G Plan/Service: Customer Provided
External Antenna Frequency: 690~960 MHz, 1710~2170 MHz, 2500~2700 MHz
External Antenna Gain: 5dB
External Antenna Height: 12`

Wireless Network Specs
Wireless Network Type: Wi-Fi
Bands: 2.4 and 5 Ghz

Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5`L x 7`W Trailer Bed- 10.75` Total Length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500 lbs
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Lights: DOT Listed - All Running Lights
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H Intl: 1-214-616-6180
Shipping Weight: +-600 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
The Larson Electronics LM-30-5S-TLR7-2XPTZ.23X-4TB-AP-W4G Trailer-mounted Security Tower provides a safe and effective way for operators to quickly deploy equipment to elevations up to 30 feet. This security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows for 360° rotation and a removable mast head for storage when not in use. The unit features two PTZ outdoor cameras, Wi-Fi connectivity and router/wireless 4G hotspot access (requires customer-provided 4G plan). With all system components mounted on a 7.5' trailer, a 4TB NVR can be found at the base of the mast. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This trailer mounted security mast has a 12" x 12" x 6" junction box and two outdoor cameras mounted at the top of the mast. The junction box supports the security cameras for a 360° field of view and can be used with other electrical devices for each operator`s specific needs, such as small sensors and monitoring devices. The junction box is mounted to the mast head via a half-moon shaped mounting plate. External sealtite coiled tubing runs around the mast to allow operators to run Ethernet cable to the junction box at the top of the mast. The entire assembly is mounted onto a 7.5` single axle trailer with DOT-listed running lights, allowing operators to transport this portable tower from location to location. Operators may access an 4TB NVR for network configurations. The system, which supports wireless customer-provided 4G hotspot access, utilizes CAT5E cable for networking. Network Cameras: Two security cameras provide operators with crisp, 1080p full-HD high resolution images. A 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 23x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable the day/night cameras to view objects at 328` minimum under nighttime conditions. The PTZ devices features endless 360° panning and 190° (minimum) tilt control. The units offload videos in MP4 format and features H.264 and MJPEG video compression. The cutting-edge security devices are designed to perform in outdoor locations and rainy conditions. The IP66-rated units resist the negative effects of non-corrosive liquids. De-fogging features enable the units to operate in rainy and foggy conditions. The devices are capable of operating in temperatures between -22°F and 149°F. NVR: The tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 4TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 100 - 240V AC of power and is suitable for use in temperatures between 14°F - 131°F. This unit is supported by a 14" HD screen with an anti-glare monitor and mouse. Remote monitoring is possible using a customer-provided 4G service. NVR Inputs: (1) RCA, 4 Sensor Inputs NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear) Router/Wireless 4G Hotspot: Connectivity features are facilitated by a 4G/LTE rugged router. Equipped with built-in security, the unit offers 600 Mbps internet speeds (minimum). The internal router can be utilized to monitor uptime and for real-time alerts. Customers must provide their own 4G service/plan for the router, as the system does not come with an internet plan. An external antenna is available for signal boosting and extending hotspot coverage. The antenna measures 12` and offers compatibility with the following frequencies: 690~960 MHz, 1710~2170 MHz and 2500~2700 MHz. Wireless Network: Operators may also connect to the system using Wi-Fi (customer-provided wireless network). This security tower is compatible with the following wireless bands: 2.4 and 5 GHz.
Click Images to Enlarge
Mast: This telescoping three stage steel mast from Larson Electronics is designed to allow operators to quickly and safely deploy security cameras in locations where the units must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 8.75` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 3,000 lbs hand winch with 3/16" galvanized steel cable. The LM series of telescoping towers are powder coated with glossy blue finish for corrosion resistance and aesthetics. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the cameras. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 8.75`, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This system is equipped with 50 feet of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. The trailer is equipped with complete DOT-listed running lights.
