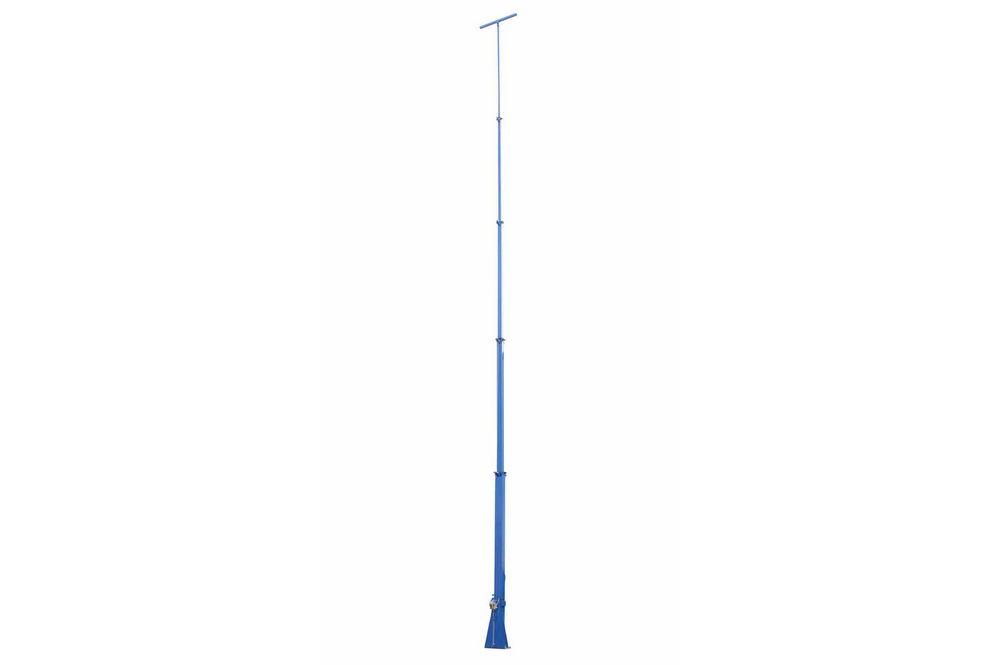

50 Foot Telescoping Light Mast - 13-50' Fold Over Five Stage Light Tower - 360° Rotating Boom

LARSON ELECTRONICSSKU: PL3-LM-50-5S
filler

Prix:
Prix réduit$16,848.00

Description

Specifications / Additional Information
LM-50-5S 50ft Five Stage Telescoping Light Tower Quick Summary
Length: 13.5feet - 50 feet 13.5 to 50 Foot Light Mast
Weight: +-1300 lbs Steel Construction
Capacity: 150 lbs Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue Manual or Optional Electric Operation
Operation: (2) 2,500lbs Hand Winches, Electric Optional
Cable: 3/16" Aircraft Cable
Mounting: 1/2" thick, 18" x 18" Six Bolt Hole Bracket
Recommended Concrete Base Size: 5' x 5' x 4' - Concrete Pad
Wind Speed Rating: 35 MPH (Extended to 50'), 50 MPH (Extended to 30'), 125 MPH (Retracted)
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5`-L x 4`-W x 5`-H Intl: 1-214-616-6180
Shipping Weight: +-2000 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics LM-50-5S fold over 5-stage light mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to fifty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping five stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 50 feet for effective coverage. This light boom can be extended to 50 feet for maximum area coverage and collapsed to 13.5 feet for applications where a footprint smaller is required. In a fully extended position, the light tower can withstand up to 35 mph wind speeds. When retracted to 30', the light mast is capable of withstanding up to 50 mph wind speeds. When retracted to 13.5', the light mast is capable of withstanding up to 125 mph wind speeds. The tower is constructed of square steel tubing with a base section 11` in length and 6" x 6" by 3/16" thick, lower section 11` in length and 5" x 5" by 3/16" thick, middle section 11` in length and 4" x 4" by 1/8" thick, an upper section 11` in length and 3" x 3" by 1/8" thick, and a top section 11` in length and 2" x 2" by 1/8" thick. Each section has a 15-18" overlap. The mast is elevated using an included 2,500 lbs hand winch with 3/16 inch cable and extended to its full height using a second 2,500 lbs winch.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via an 18" x 18", 3/8" thick mounting base-plate which has been drilled to accept six 1/2 inch anchor bolts. The recommended size for the concrete base/pad is 5' x 5' x 4'. A 44" wide and 1/8" thick mounting T head is attached to the upper section of the mast which provides a strong and stable platform for fixtures. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When elevated to its full upright position, the mast can be rotated a full 360°, regardless of the extended height of the mast. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. This light tower weighs approximately 1300 lbs, can easily support and lift 150 lbs of fixtures and/or equipment. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 2000 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 2,500 lbs hand winches included standard or optional electric winches. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
