Replacement Hydraulic Ram for Megatower Series Light Plants

Replacement Hydraulic Ram for Megatower Series Light Plants

Prix habituel $1,342.00 CAD
Prix habituel Prix promotionnel $1,342.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
LM-50-5S-TLR-SP5536 Quick Summary
Size: 1/2 inches NPTF
Maximum Pressure: 2500 PSI
Upper Temperature Range: 180° Fahrenheit
System of Measurement:  Inch
Bore Diameter:  3-1/2 inches
Overall Height:  4.25 inches
Overall Length:  44 inches
Overall Width:  3.75 inches
Pin Hole Diameter:  1 inches
Max Rod Outside Diamete: 1-1/2 inches
Piston Stroke Length:  36 inches
Mounting Type:  Crosstube Mounting
Seal Material Type:  Urethane
Seat Material Type:  Cast Iron Toll Free: 1-800-369-6671
Thread Size:  1/2" Intl: 1-214-616-6180
Color:  Black Fax: 1-903-498-3364
Exterior Finish:  Chrome Finish
' Product Overview '

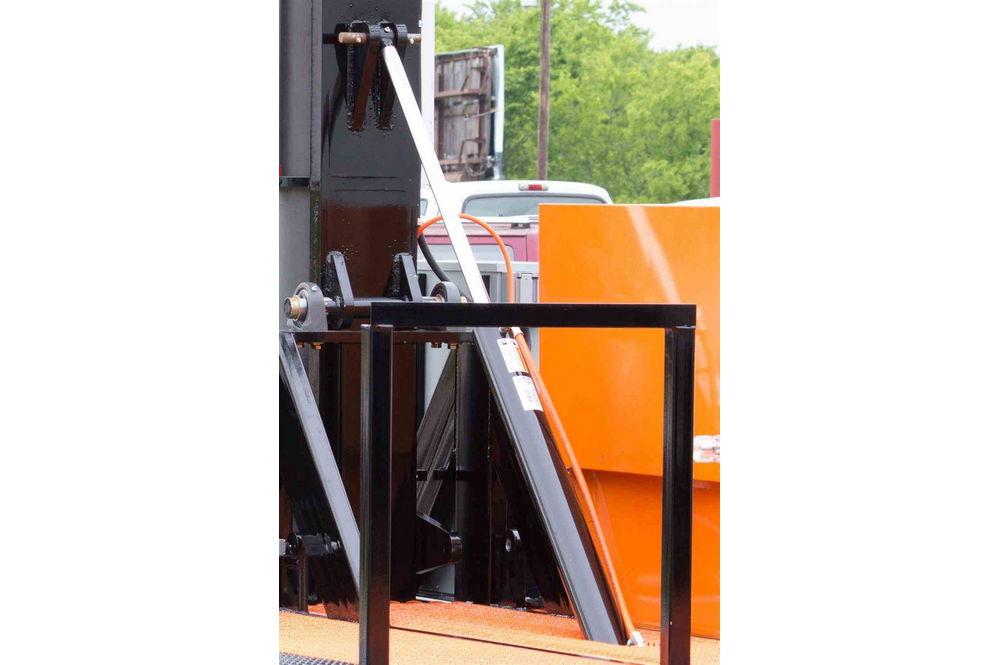

This unit is Made In USA - Manufactured in Texas Replacement Hydraulic Ram for Megatower Series Light Plants The LM-50-5S-TLR-SP5536 replacement hydraulic ram is an actuator for providing hydraulic power into mechanical motion, lifting the mast into the upright position on the Larson Electronics Megatower series light plants. It is a double-acting cylinder with two NPTF hydraulic ports for both extension and retraction of the rod. The cylinder has crosstube end fittings with grease zerks for mounting to the trailer. It has a welded construction for the payload of supporting the mast on the Megatower. The piston and gland are made of ductile iron for strength and durability, with a chromed, ground, and polished piston rod for resistance to wear. The u-cup seal and wiper ring in the gland are made of urethane for resistance to contaminants. This welded hydraulic cylinder has a maximum operating pressure of 2,500 pounds per square inch (psi).
