1920 Watt 30' LED Propane Light Plant - 4kW Propane Generator - 240,000 Lumens - 14' Trailer
1920 Watt 30' LED Propane Light Plant - 4kW Propane Generator - 240,000 Lumens - 14' Trailer
Prix habituel
$71,532.00 CAD
Prix habituel
Prix promotionnel
$71,532.00 CAD
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
| LPNG-LM-30-3S-TLR14-4X400LTL-LED Trailer Mounted 3-Stage Light Tower | Mast/Trailer Summary |
| Genset Specs: | 4.4KW Propane Genset |
| Fuel Type: Propane | 12` to 30` Light Mast |
| Generator: 4.4KW | Steel Construction Mast & Trailer |
| Horsepower: 7 HP | Mast - Power Coated Finish |
| Voltage: 120/240V Single Phase | Trailer - Industrial Paint Finish |
| Battery 12V | (4) 1,000lb Retractable Outriggers |
| Fuel Delivery: Propane Line w/ Regulator | 125 mph Wind Resistance |
| Outlets: (2) 20A 120V, (1) 120/240V 30A, (1) 12V | Manual or Optional Electric Operation |
| Removable Mast Head | |
| Light Mast Specs | Â |
| Tower Length: 12` to 30` | LED Lamp Head Summary |
| Mast Head Length: 44" | High Output LED Lamps |
| Capacity: 150 lbs | Extreme Area Coverage |
| Materials: Steel | Direct Replacement for (4) 800W MH Towers |
| Finish: Powder Coated - Gloss Blue | 1,600W LED compared to 800W MH |
| Operation: (2)Â 1,000lbs Hand Winches, Electric Optional | 216,000 Total Lumen Output |
| Cable: 3/16" Galvanized Aircraft Cable | Independently Adjustable Light Heads |
| Dial-in Adjustability per light head | |
| Lamp Specs | 98% Transmission High Purity PMMA Optics |
| Lamp Type: Cree® LED | Multiple LED Banks for Heat Dispersion |
| Lamps: (4) 400 Watt LED Fixtures | 135 Lumens Per Watt Efficiency |
| Total Watts: 1600 (400W per lamp) | 70% Lumen Retention after 80,000 Hours |
| Total Lumens: 216,000 (54,000 per lamp) | IP67 Waterproof LED Fixtures |
| Luminous Efficiency: 135 lm/w | Â |
| LED Life Expectancy: 80,000 hours | All Equipment Mounted on a 14` x 6` Trailer |
| Towable Height Under 13` When Folded Over | |
| Trailer Specs | 4-Point Outrigger System |
| Materials: Steel | Â |
| Trailer Dimensions: 14-L` x 6`-W trailer bed | Â |
| Hitch: 2" Ball Coupler | Â |
| Wiring: 7-Pin Flat | Â |
| Axle:Â 3,500lb | Â |
| Suspension: 5,400 Lb 4-Leaf Double Eye Springs | Â |
| Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable | Â |
| Wheels: (2) 15" 5x4.5 Steel Rims | Â |
| Tires: ST205/75/D15 H188 | Â |
| Weight: +-1200 lbs | |
| Shipping: Common Freight | |
| Shipping Dimensions:Â ~16.5`-L x 4`-W x 5`-H | |
| Shipping Weight: +-1700 lbs | |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | |
| 3 year warranty replacement on this light mast. The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit. |

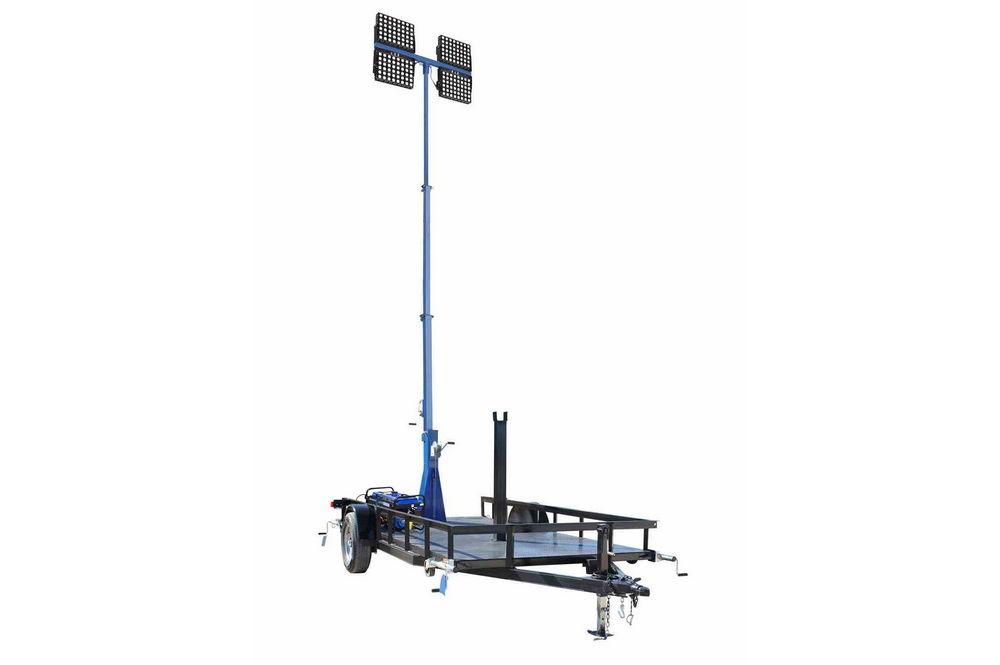

| This unit is Made In USA - Manufactured in Texas The Larson Electronics LPNG-LM-30-3S-TLR14-4X400LTL-LED 1,600 watt propane LED light plant with 30` light mast provides a safe and effective way for operators to quickly deploy the equipped high output LED light fixtures to elevations up to thirty feet. The four 400 watt LED lamps produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. The entire assembly is mounted onto a 14` single axle trailer, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LPNG-LM-30-3S-TLR14-4X400LTL-LED LED Light Plant is a self contained, towable, high power light tower package. This unit contains an air cooled propane engine powering a 4.4KW generator, which supplies the current for four 400 watt LED lights producing 54,000 lumens each, for a combined total of 216,000 lumens of light. This mobile floodlight package is ideal for large scale event illumination, construction, mining, industrial operations, and anywhere a mobile full power lighting system capable of extended operation is needed. This telescoping three stage steel light mast from Larson Electronics’ is designed to quickly and safely deploy 1,600 watts of LED lighting in locations where elevated illumination to heights up to 30` is needed for maximum area coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 12` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 12` in length and 4" by 4" by 1/8" thick, middle section 9.5` in length and 3" by 3" by 1/8" thick, and an upper section 8.5` in length and 2" by 2" by 1/8" thick. Each section has 1` foot of overlap. The mast is elevated using an included 2,500 lbs hand winch with 3/16" galvanized steel cable and extended to its full height using a second 2,500 lbs hand winch. | |||||||||||||||||||||
|
|||||||||||||||||||||
Lights: The lighting system on this articulating light mast is comprised of four our of 400 watt LED lamps producing 54,000 lumens of light each attached to the end of the telescoping pneumatic light boom. These floodlights produce a wide flood light pattern with a combined total of 1,600 watts and 216,000 lumens of light. The GAU-LTL-400W-LED lights are ideal replacements for fragile and hot running 800 watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The entire lighting assembly is connected to the power source via a 4-switch control box. Each light head is on an individual circuit and can be powered on or off independently of the other light fixtures.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. In addition, should an LED failure occur, these LED flood lights are field serviceable. Each bank of six LEDs can be replaced with the fixture installed. This allows for the tower to stay in operation until repairs can take place, and eliminates the need to remove and disassemble the entire fixture for repairs.
Durability: As well as unparalleled heat control, the GAU-LTL-400W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The Cree® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We use these LED lights for applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
Light Mast: A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four LED fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand.Â
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a 14` by 6`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. The trailer can support and haul an additional 3,500 lbs of equipment. A standard 2" ball coupling, two standard safety chains, and 4-pin flat trailer plug allow for easy hookup and towing.
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 12`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Genset: The LPNG-LM-30-3S-TLR14-4X400LTL-LED mobile light tower includes a 7 horsepower propane genset. This genset is air cooled and features a single phase generator with electric start ignition. The propane generator features a regulator at the generator and hose connections to connect to user provided propane bottles. This genset features key operated electric starting, a twelve volt electrical system, two 20 amp 120v outlets, and 30 amp 120/240V outlet.
|
|||||||||||||||||||||
