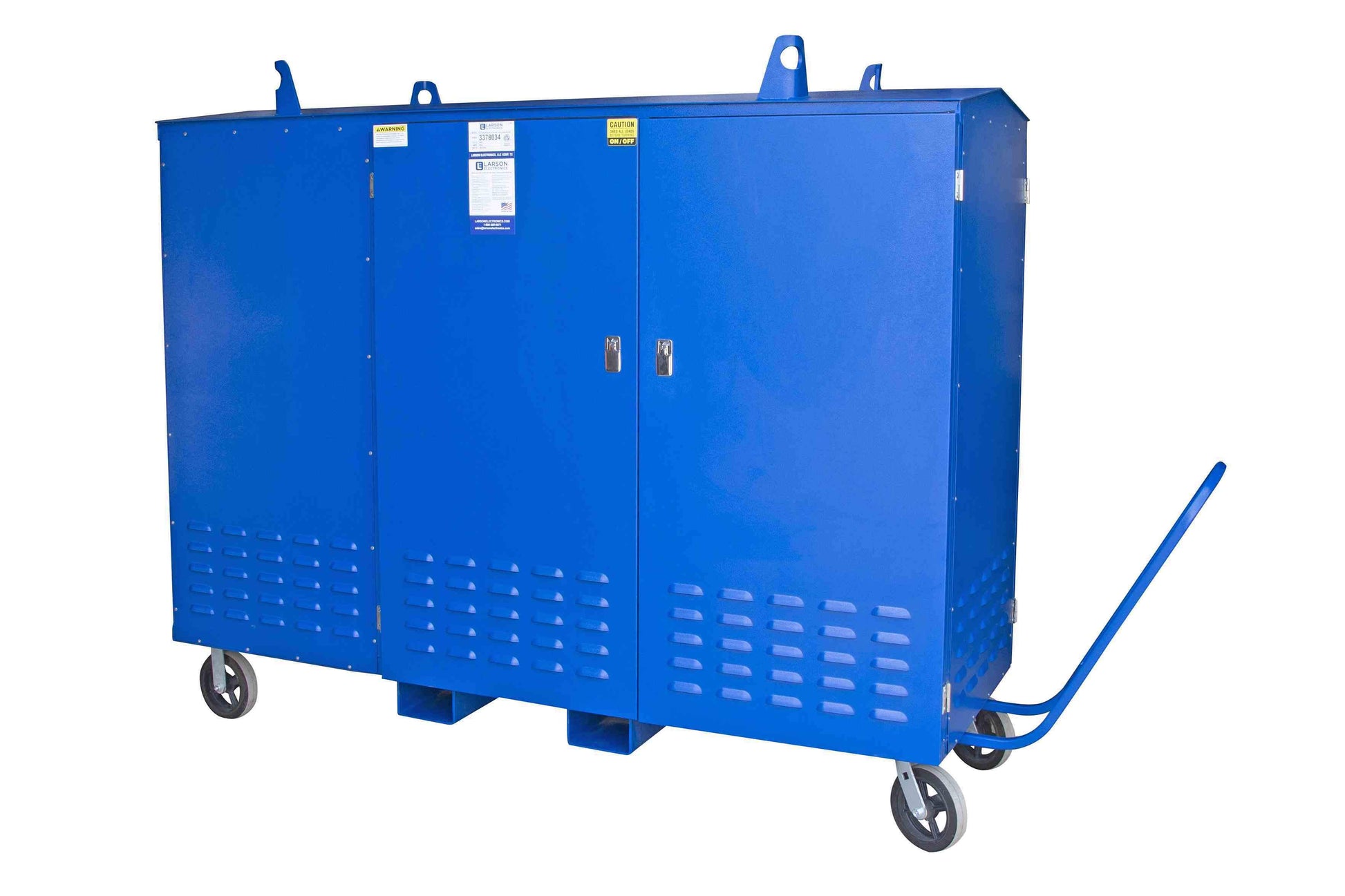

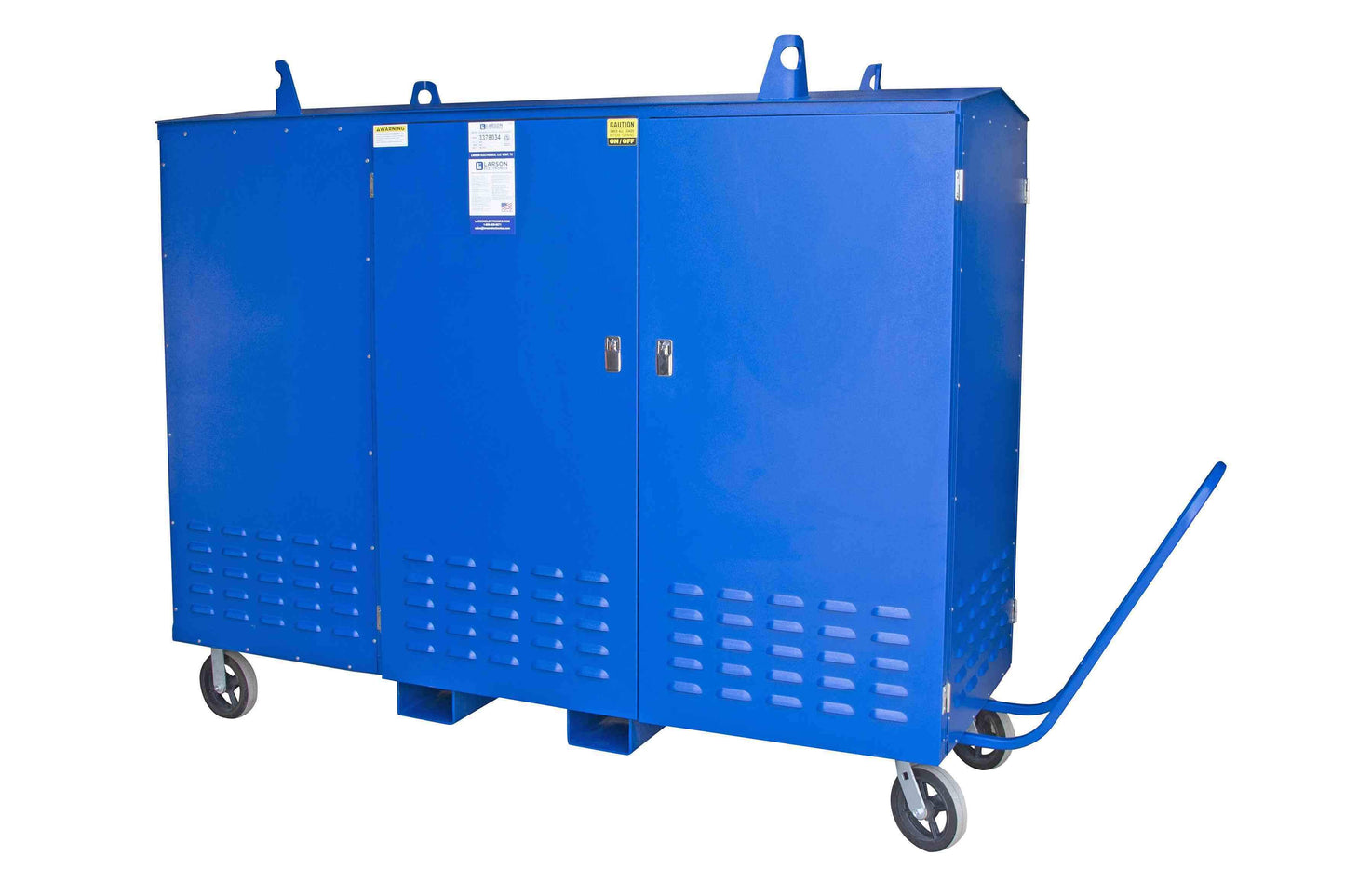

Larson Power Distribution Panel System - 15 KVA - Converts 480V to Eight 120VAC Outlets & Two 208Y outlets
Larson Power Distribution Panel System - 15 KVA - Converts 480V to Eight 120VAC Outlets & Two 208Y outlets
Sold by: Larson Electronics
This unit is Made In USA - Manufactured in Texas
The Larson Electronics MGS-15KVA-120X8O-2X208Y heavy duty power transformer substation converts 480 VAC three phase current to single phase 120V AC and three phase 208Y. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power.
The MGS-15KVA-120X8O-2X208Y provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs, and any activities requiring an alternative to native power sources. This unit is designed to operate with 480 VAC which it then steps down to 120V single phase and 208Y three phase. This transformer makes 120VAC available via 8 GFCI protected receptacles and 208Y available via two 208Y outlets.
The MGS-15KVA-120X8O-2X208Y converts 480 VAC to single phase 120V AC and 208Y three phase AC. Protection is provided through the use of 8 GFCI protected 120 Volt, 20 amp outlets. 20 feet of Line Power SOOW Cord connects to a fused ON/OFF disconnect switch which controls power to the 15 KVA, 480 Volt transformer. The transformer is mounted to a 1/8†thick diamond plate and the distribution assembly is mounted onto a rugged 2 inch square carbon steel frame with rectangular carbon steel skid pockets and a top located lifting eyelet to allow easy transport.
This unit incorporates NEMA 3R panels and transformer and is ideal for use in applications including but not limited to, plant maintenance, hazardous location operations, as a welding station, shows and exhibits and marine applications. These units are popularly used in hazardous locations where external power sources are often necessary and work well in combination with explosion proof lights.
Larson Electronics is a manufacturer and as such can build transformers to your Specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
.
Specifications
Line In: 480 via 20` SOOW cord and 20amp disconnect
Line Out: 120 & 208Y
Transformer: 15KVA 3P 480 to 120/208Y
120 VAC Outlets:  8 X 20amp GFCI Protected Receptacles
208Y VAC Outlets: 2 X 30amp Receptacles
Protection: GFCI Outlets, Circuit Breakers, fused disconnect
Mounting: Skid pockets and top lift eye
Max Secondary OCP: 42 amps
M Skid pockets and top lift eye 42 amps
ax Primary OCP
Dimensions: 36"W X 36"D X 36"T
Disconnect: Fused On/Off Disconnect Switch
