3-Phase Monitoring Relay - 220V AC 60Hz - 10A SPDT Switch

LARSON ELECTRONICSSKU: PL3-MOD-RLY-PHM-3PH-190.500V-10A-SPDT
filler

Prix:
Prix réduit$386.00

Description

Specifications / Additional Information
' Product Overview '

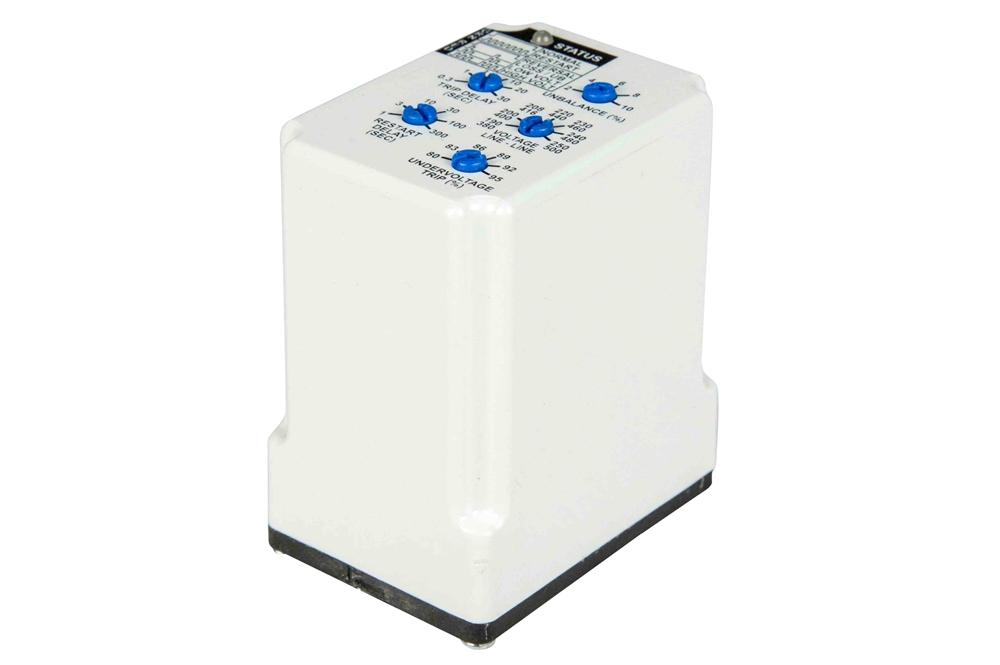

The Larson Electronics MOD-RLY-PHM-3PH-190.500V-10A-SPDT is a 3-Phase Monitoring Relay. This protective relay runs on 220V AC and protects motors and equipment from damage due to voltage faults on three-phase systems. When the proper 3-phase line voltage is applied to the unit and the phase sequence is correct, the relay is energized after the restart delay is completed. Any one of five fault conditions will de-energize the relay after a delay. Re-energization is automatic once the fault has been successfully fixed. A bi-color LED indicates normal condition and provides specific fault indication.
MOD-RLY-PHM-3PH-190.500V-10A-SPDT Explosion Proof Ratings/Approvals
Listing: United States - Canada
Nominal Voltage: 220V AC
Nominal Frequency: 60 Hz
Low Voltage Disconnection: 170-210V AC
Max Current (Relay Contractor): 10
Time Delay: 3-5 Minutes
Load: 40VA
Output Contacts: 10A @ 277V AC, 7A @ 30V DC, 1HP @ 250V AC, 1/2HP @ 125V AC
Life Expectancy: Mechanical-10,000 Operations; Full Load-100,000 Operations
Storage Temp: -40° C to 85°C
Operating Temp: 28° C to 65°C
