Temporary Power Distribution -Stainless -50KVA - 480V to 120/240 - 14 2P Breakers and 28 1P Breakers

LARSON ELECTRONICSSKU: PL3-MPD-480-50K-200MB-7X20-7X30-28X120.120-SSDC-W
filler

Prix:
Prix réduit$29,938.00

Description

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
MPD-480-45K-200MB-7X20-7X30-28X120.120-DC-W  Ratings
Line In: 20` #8 Type W cable UL 1640 Portable Power-Distribution Equipment
Primary Voltage: 480V NEMA 3R Indoor or Outdoor Use
Disconnect: 60 amp fused disconnect, fused at 60 amps Made in the USA
Transformer: 50 KVA
Secondary Voltage: 120/240 Delta/Delta
Load Center: 200 amp main breaker NEMA 3R 120/240 panel
Breakers: 7 x 20 amp double pole, 7 x 30 amp double pole, 28 x 20 amp single pole
Dimensions: W-38" X D-32" X H-60"
Weight: 380 lbs
Mounting: Stainless steel tube dolly cart w/ wheels
Features:
Max Primary OCP: 60 amps @ 480V
Max Secondary OCP: 200 amps @ 240V

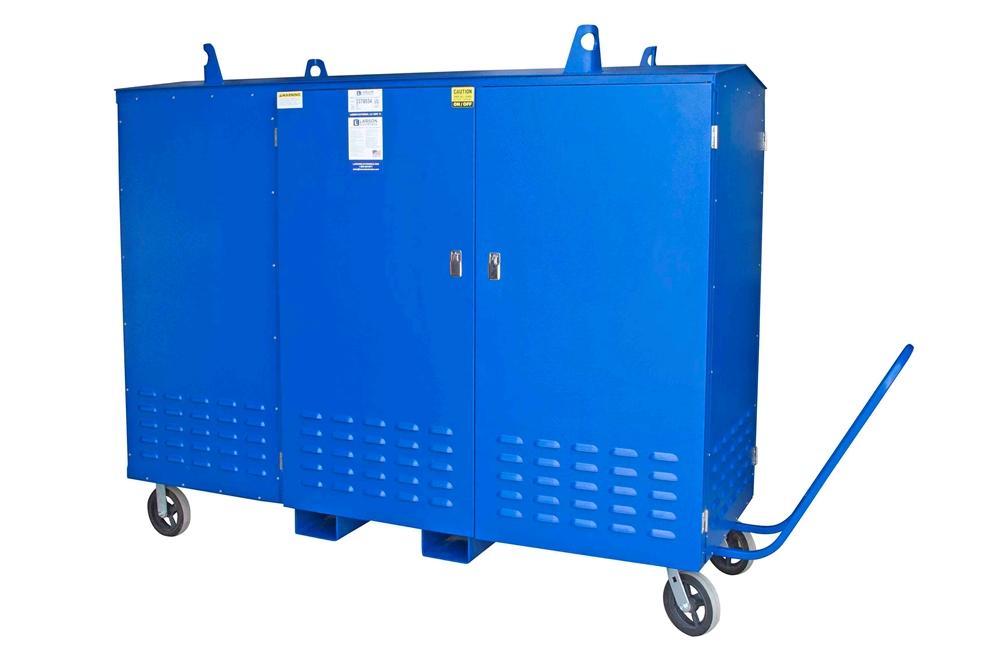

Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics MPD-480-50K-200MB-7X20-7X30-28X120.120-SSDC-W Temporary Power Distribution System converts 480V AC three phase to 120/240 Delta/Delta electrical current. This power distribution system provides operators the ability to safely tap into 480V and distribute 120/240V to their equipment. This portable substation is suitable for outdoor applications with a stainless steel frame and NEMA 3R gear. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* This power distribution system is designed to enable contractors using 120/240 volt equipment to operate off 480V service at customer sites. This dolly cart style configuration is easy to move around the customer site and can be loaded easily on a truck or other conveyance for transport to a different site.
Click Photo to Enlarge
Features: - 20` #8 Type W line in cable w/ flying leads - 60 amp fused disconnect (fused at 60 amps) - 50 KVA 480V to 120/240 Delta/Delta NEMA 3R transformer - 200 Amp MB panel in NEMA 3R enclosure w/ 42 circuits      - (7) 20A double pole breakers      - (7) 30A double pole breakers      - (28) 20A single pole breakers - Stainless steel tube dolly cart w/ wheels
The transformer and load center/distribution assembly is mounted to a standard steel cart style frame resulting in an extremely stable, durable and mobile power distribution platform. Two run flat style rubber tires and a cart style mounting platform provides easier substation mobility, and a center point lift eye allows easy lifting with cable or chain hooks. This temporary power distribution solution can be modified to meet the needs of job-site receptacle requirements. Units can be equipped with skid pockets, wheels or trailer mounted. Applications: This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations.  The stainless steel cart is ideal for saltwater or other corrosive environments. Larson Electronics is a manufacturer and as such can build portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
