Portable Spider Box - 480V Delta Input, (3) Receptacles - Steel/Safety Yellow - 20' #4/4 AWG Type W Input Cord

LARSON ELECTRONICSSKU: PL3-MPD-CS2-309.100AB-DE0DE-ZZ-1.C06-2.L26-M1
filler

Prix:
Prix réduit$13,261.99

Description

Specifications / Additional Information
This unit is Made In USA - Manufactured in Texas
MPD-CS2-309.100AB-DE0DE-ZZ-1.C06-2.L26-M1 Spider Box Ratings/Approvals
Line-In Cord: 20' #4/4 AWG TYPE W Cord [2000V] Max Primary OCP: 100A @ 480V
Line-In Cord Cap: 4100P7W IEC 60309 Pin & Sleeve Male Plug [480V] NRTL Certified to UL 1640
Primary Voltage: 480V AC, Delta NEMA 3R Weatherproof
Primary Phase: 3-Phase (3PH) Overload Protection
Primary Frequency: 60 Hz (60-cycles) Short Circuit Protection
Output: -
Primary Panel: 480V 3PH 100A MLO Yellow Spider Box N3R
Primary Breakers: (1) 40A 3P MCB [480V]; (2) 30A 3P MCB [480V]
Primary Outlets: (1) CS8169 California Standard Twist-Lock [480V]; (2) L16-30R NEMA Twist-Lock [480V]
Primary Protection: MCB Circuit Breakers; Weather-proof Device Covers Special Orders - Requirements
Housing Material: Steel
Form Factor: Yellow Powder Coated Spider Box w/ Legs
Mounting: Portable/Base Stand
Dimensions: -
Weight: -
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

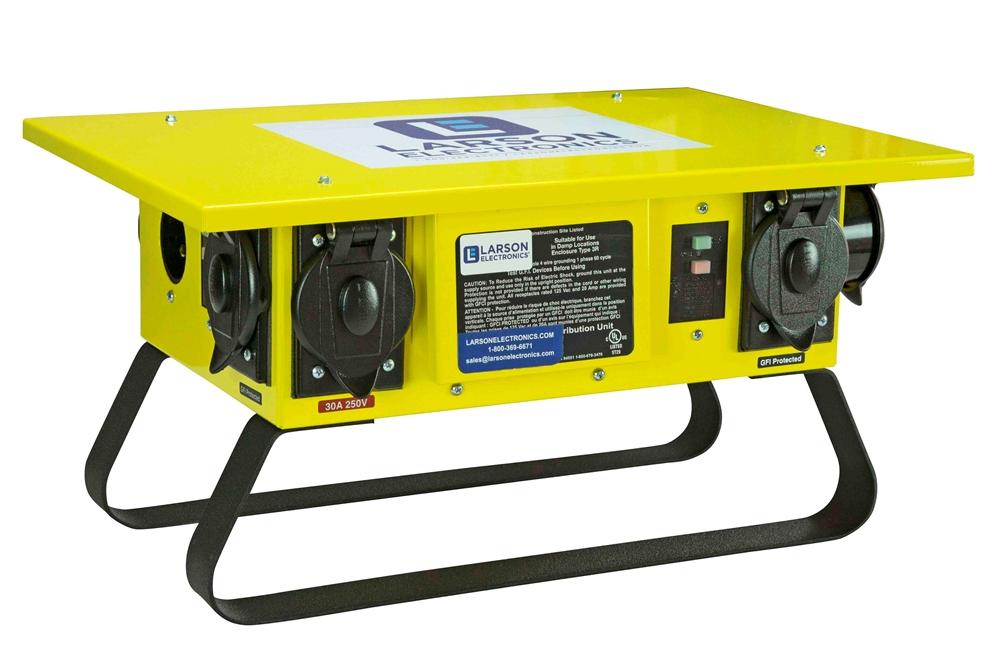

This unit is Made In USA - Manufactured in Texas The MPD-CS2-309.100AB-DE0DE-ZZ-1.C06-2.L26-M1 from Larson Electronics is a Portable Spider Box for indoor, outdoor, and rugged applications. This unit allows operators to use 480V Delta power via a 20' line-in cord. The device is equipped with three output receptacles for equipment. For robust protection, the safety yellow spider box is NEMA 3R rated and protected by impact/flame resistant weatherproof covers. This portable spider box has a 20' #4/4 AWG Type W cord with a 100-amp 480V 4100P7W IEC 60309 pin/sleeve cord cap for bringing power into the unit. The device is compatible with three-phase 480V AC Delta. Operators may access one 40-amp 3-pole 480V circuit breaker protecting one 50-amp 480V CS8169 twist-lock receptacle and two 30-amp 3-pole 480V circuit breakers protecting two 30-amp 480V L16-30R NEMA twist-lock receptacles on the system. The MPD-CS2-309.100AB-DE0DE-ZZ-1.C06-2.L26-M1 spider box features short circuit, overload, open neutral, and reverse phasing protection. Should circuit overload occur, the unit will automatically shut down to protect the spider box from damage. The housing on the MPD-CS2-309.100AB-DE0DE-ZZ-1.C06-2.L26-M1 is constructed of steel with a NEMA 3R enclosure rating. This safety yellow device is approved for wet locations and features heavy-duty impact/flame resistant weatherproof covers. Two angled black legs at the base of the unit and low center of gravity ensures this spider box does not tip over in the field. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4x equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
