MPD-EB21-TB-YT0YT-NZ-30.R10-N3R Power Distribution Panel | Ratings |
Line-in Cord: Not Included - Requires Minimum Use Wiring 150A Rated Cu @ [600V] (**Customer Provided**) | Max Primary OCP: 150A @ 208V |
Line-in Cord Cap: Not Included - Requires Minimum Use Device 150A @ [208Y/120V] (**Customer Provided**) | NEMA 3R |
Primary Voltage: 208/120V AC Wye | Left Side Hinged Door |
Primary Phase: 3-phase | NRTL Certified to UL 489 Rated MCCB Breaker for Main Breaker |
Primary Frequency: 60 Hz | NRTL Certified to UL 1077 Rated Din Rail Mount Branch Breakers |
Panel: 208Y/120V 3PH 150A MCCB Hinged 30Ckt. N3R | Made in the USA |
Primary Breakers: (30) 20A 1P MCB [125V] |  |
Primary Protection: MCCB Circuit Breaker; MCB Circuit Breakers | Powder Coat Finish Standards: |
Transformer: N/A | Complies with ASTM D-523 |
Secondary Breakers: N/A | Complies with ASTM D-3359 |
Secondary Protection: N/A | Complies with ASTM D-522 |
Circuits: - | Complies with ASTM D-3363 |
Feed Type: Bottom | Complies with ASTM D-2794 |
Top Entry: - | |
Interrupting Rating: 14 | |
Operating Temperature: 40°C | |
Materials: Steel, Copper |  |
Bus Material: Copper |  |
Ground Bar Material: Aluminum (Bolted) |  |
Panel Finish: High-strength TGIC Polyester Powder Coated Blue | Special Orders - Requirements |
Form Factor: Blue Powder Coated N3R Hinged Enclosure - Left Side Hinged Door | |
Input Wire Size: - | Toll Free: 1-800-369-6671 |
Internal Dimensions: - | Intl: 1-214-616-6180 |
Weight: - | |
Mounting: Surface Mount | |

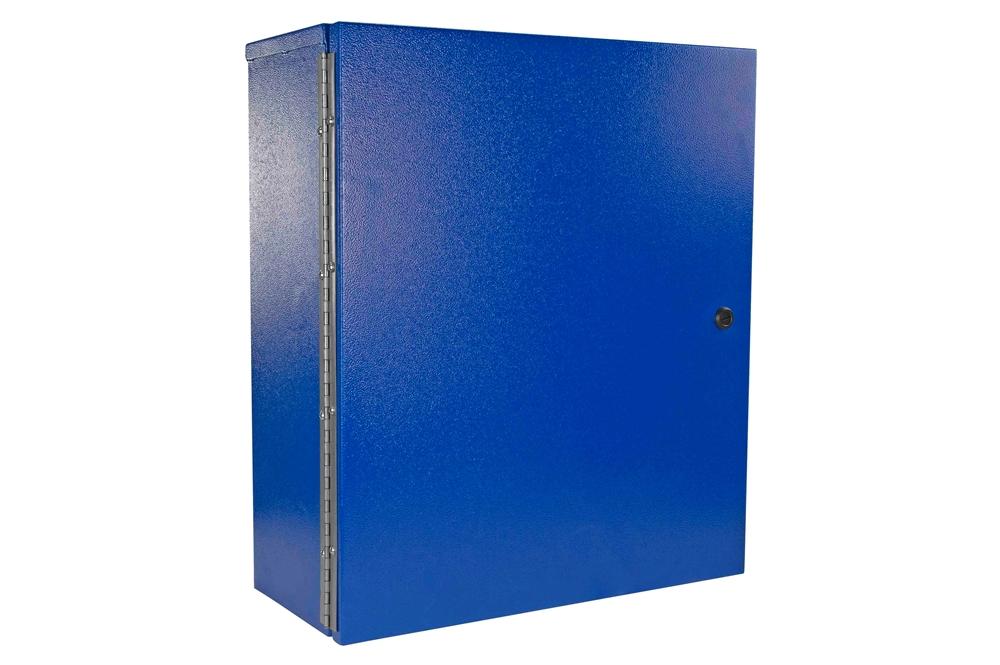

Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
The Larson Electronics MPD-EB21-TB-YT0YT-NZ-30.R10-N3R Power Distribution Panel is designed for reliable, safe and convenient power distribution at industrial work sites. This 150-amp unit provides three-phase 208/120V AC Wye via a main circuit breaker panel. The power distribution panel provides operators the ability to safely tap into and distribute 208/120V AC Wye power from a variety of sources including generators and direct grid power. The MPD-EB21-TB-YT0YT-NZ-30.R10-N3R has a left side hinged panel. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The MPD-EB21-TB-YT0YT-NZ-30.R10-N3R power distribution panel provides a safe and reliable way for operators in industrial settings to tap into and utilize power sources independently of the work area. The MPD series of power distribution panels require operators to provide their own line-in cables for use. Knockouts located at the bottom of the unit are provided for convenient installation of operator-provided input and output cables. The panel is designed to operate with three-phase 208/120V AC Wye voltage. Power distribution for this panel runs 208/120V AC Wye through a 150-amp main circuit breaker panel. The NEMA 3R 150-amp 208Y/120V main breaker panel is protected by a 150-amp NRTL certified to UL 489 rated MCCB breaker and contains thirty 20-amp 1-pole 125V NRTL certified to UL 1077 rated din rail mount branch breakers. Enclosure Design: This power distribution system is housed in a space-saving enclosure and carries a NEMA 3R rating for protection against debris and ingress of water (dripping or minimal splashing) in indoor locations. A left side hinged door offers access to internal system components. The power distribution system is constructed of steel with a polyester powder coated blue finish for durability against dirt, moisture and mild corrosion. This special coating creates a high-strength barrier for protection from accidental bumps and scratches. The TGIC polyester powder coat finish offers reliable resistance against chemicals, UV light (sun light) and degrading elements in outdoor locations. Our powder coating solution ensures robust color retention for many years without fading. Custom colors, such as blue (standard), black, desert tan or forest green, and galvanized finishes are available upon request. Non-standard powder coat colors or galvanized finishes may increase price and lead times. We also offer similar power distribution panels on dolly carts with wheels, powder coated cube frames with lifting eyelets/skid pockets or stand-alone with handles for faster turnarounds and completion of temporary tasks. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations. |
