Description
Specifications / Additional Information
MT-BBT-208D-230D-3P-62.5A-6.20FT-BCE Prewired Buck and Boost Transformer | Ratings |
Phase: Three Phase | NRTL Listed for United States and Canada |
Frequency: 50/60 Hz | CSA Certified |
Transformer Type: Buck/Boost | Buck and Boost Transformer |
Input Voltage: 208 V AC | Rated for Indoor/Outdoor Environments |
kVA: 25.5 | |
Primary Amps: 70.8 A @ 208 V | |
Primary Configuration: NEMA | |
Output Voltage: 229 V | |
Secondary Amps: 62.5 A | |
Winding Material: Copper | |
Wiring: 6' 2/4 SOOW Whip on Input Side w/ Blunt Cut End; 20' 2/4 SOOW Whip on Output Side w/ Blunt Cut End | |
Wiring Termination: Blunt Cut Ends | |
NEMA Rating: NEMA 3R | |
Primary Termination (Std): Wire Leads | |
Secondary Termination (Std): Wire Leads | |
Insulation: 180°C | |
Temperature Rise: 115°C | |
Sound Level: Meets NEMA ST-20 Standards | Special Orders - Requirements |
Enclosure Material: NEMA Type 3R | |
Finish: Painted Steel | |
Dimensions: 11.75"-H x 16"-W x 6.5"-D | |
Weight:Â 72 lb |
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}

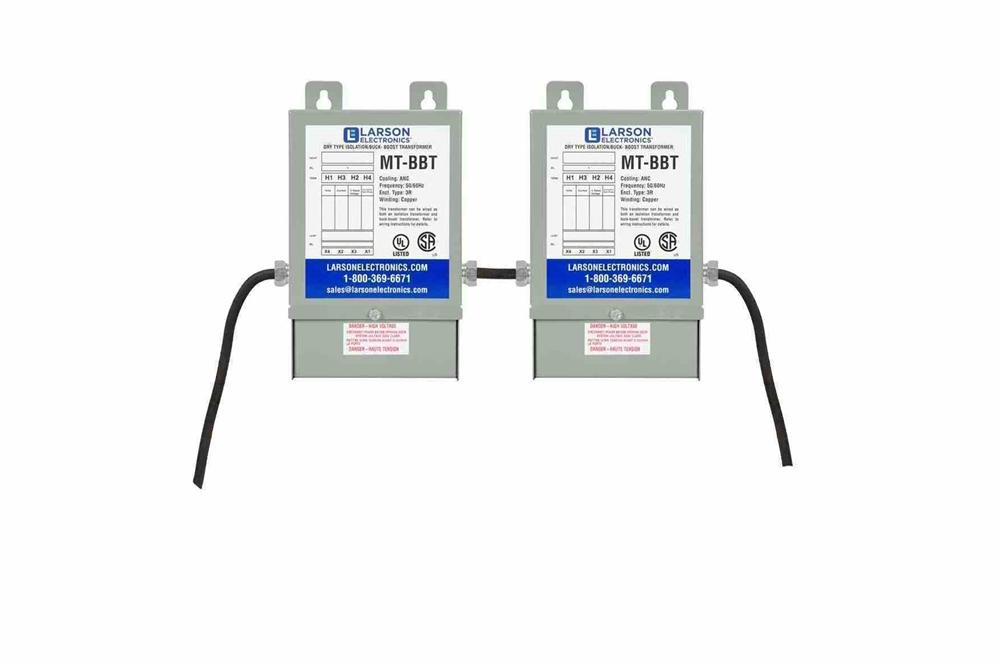

The MT-BBT-208D-230D-3P-62.5A-6.20FT-BCE Three Phase Energy Efficient Prewired Buck and Boost 50/60 Hz Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-BBT-208D-230D-3P-62.5A-6.20FT-BCE provides increased reliability, protection against critical equipment failures and an extra level of protection by isolating the power source from the connected device. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. The MT-BBT-208D-230D-3P-62.5A-6.20FT-BCE is a prewired transformer for customer installation and is equipped with 6' of 2/4 SOOW cable on the input side and 20' 2/4 on the output side. Each whip is terminated in a blunt cut end. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: The MT-BBT-208D-230D-3P-62.5A-6.20FT-BCE buck and boost transformer is a three phase unit with a 25.5 kVA rating and a primary voltage of 208 V AC with 70.8 amps available on the primary side. It also provides a secondary voltage of 229 V and has 62.5 amps available on the secondary side. Featuring robust construction, this unit's cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The NEMA 3R painted steel enclosure makes the unit suitable for both indoor and outdoor applications and it can be wall mounted. The unit features a 180°C insulation with a 115°C temperature rise. Benefits: The MT-BBT-208D-230D-3P-62.5A-6.20FT-BCE buck and boost transformer offers many benefits to the consumer. Precision cut copper transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. Buck and boost transformers are designed to maximize the performance and life of electrical equipment. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Integrated wall mounting brackets make installation fast and easy. Wiring/Installation: The MT-BBT-208D-230D-3P-62.5A-6.20FT-BCE is equipped with a 6' 2/4 SOOW whip on the input side and a 20' 2/4 SOOW whip on the output side. Each whip is terminated in a blunt cut end. This transformer makes installation simple. Operators connect them to the corresponding current. For example, the 208 V whip gets connected to 208 V current. Applications: Air conditioners, lighting systems, heating elements, motor applications and other applications that that require the ability to power loads that differ from the available line voltage. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
