Larson Direct Burial Magnetic Transformer - 12.5V AC Output - 300W Max Load - NEMA 12 Enclosure

Larson ElectronicsSKU: PL3-MT-DBXF-240V-300-12.5VAC
filler

Prix:
Prix réduit$1,214.00

Description

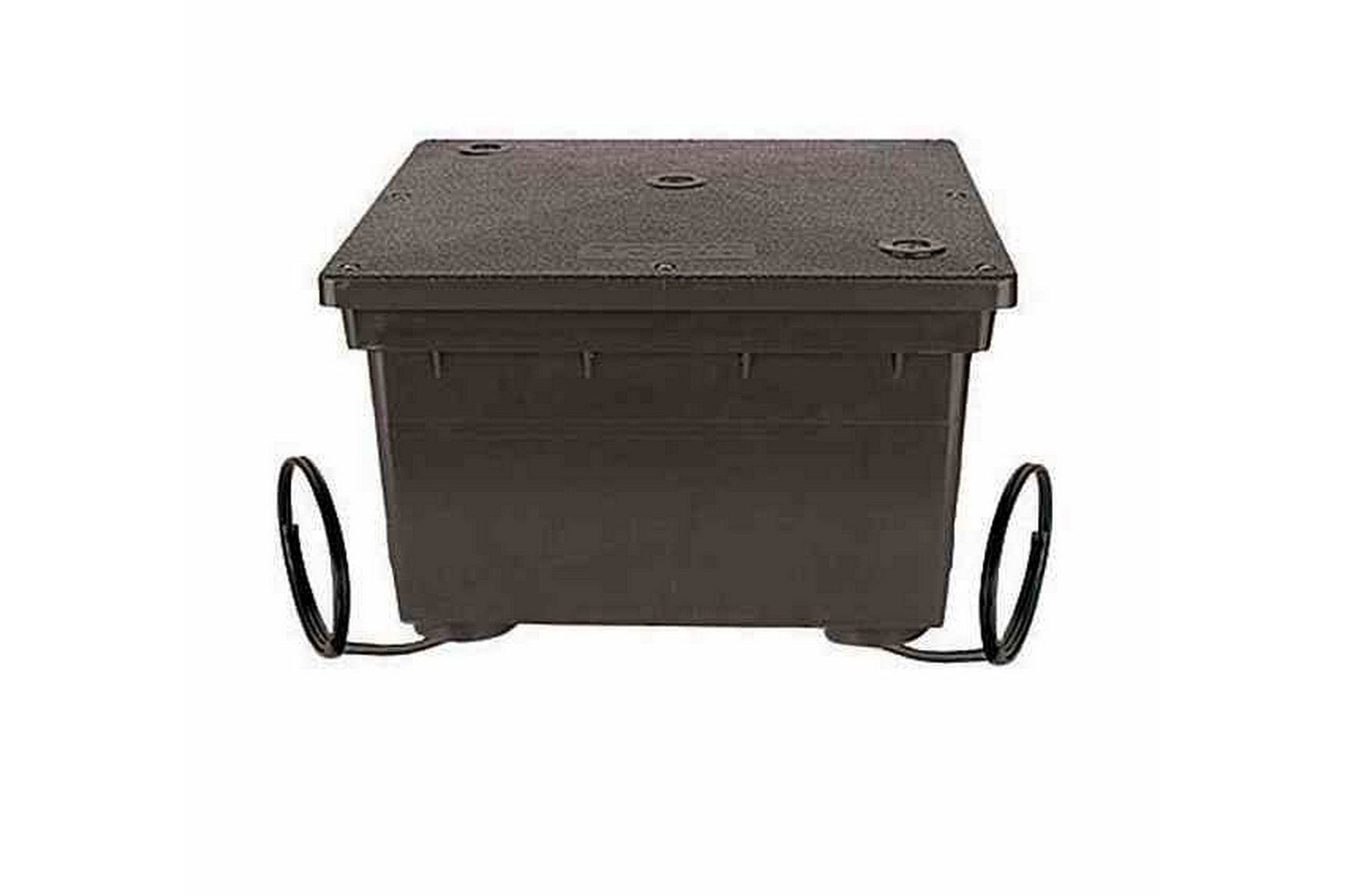

The MT-DBXF-240V-300-12.5VAC from Larson Electronics is a Direct Burial Transformer that is completely potted and has a NEMA 12 rated enclosure for direct burial. The MT-DBXF-240V-300-12.5VAC has a 300W max load and has a secondary voltage of 12.5V AC.
The MT-DBXF-240V-300-12.5VAC is a direct burial magnetic transformer that can be used in direct burial applications. This isolation type magnetic transformer uses 240V AC primary voltage and has a secondary voltage of 12.5V AC. This transformer is fully potted for moisture resistance and the enclosure is rated NEMA 12 which makes it suitable for use in direct burial applications. This direct burial transformer is equipped with two feet of 12/2 direct burial cable on both sides to allow operators to complete wiring connections.
Suggested Applications:
Landscape lighting, outdoor lighting, pool/spa applications, fountains and any other situation that requires a direct burial transformer.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Device Type: Direct Burial Magnetic Transformer
Dimensions: 10.00"L x 10.00"W x 7.75"H
Weight: ~10 lbs
Frequency: 50/60Hz
Primary Voltage: 240V AC
Phase: Single Phase
Power Rating: 300W
Output Voltage: 12.5V AC
Number of Taps: 1 Per Circuit
Hubs: 1/2" & 3/4" NPS on Bottom for Wiring - 1/2" NPS Hub on Top for Fixture Mounting
NEMA Rating: NEMA 12
Enclosure: Direct Burial
Short Circuit Protection: Yes
Overload Protection: Yes
Wiring: 2` 12/2 Direct Burial Cable - Input & Output Sides
