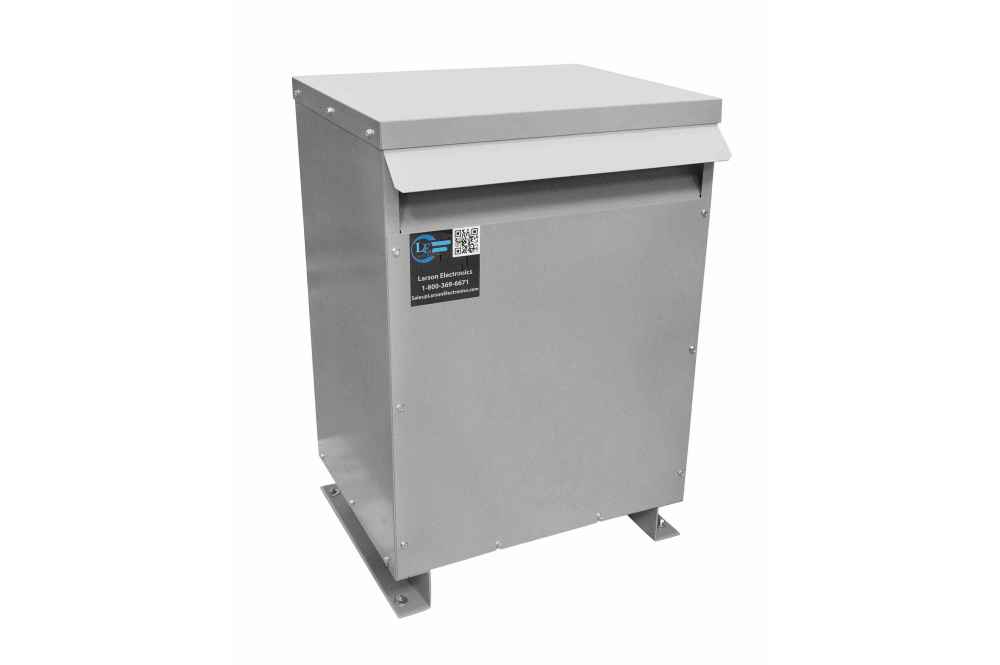

30 kVA 3PH Isolation Transformer, 240V Delta Primary, 480V Delta Secondary, N3R, Ventilated, 60 Hz
30 kVA 3PH Isolation Transformer, 240V Delta Primary, 480V Delta Secondary, N3R, Ventilated, 60 Hz
| MT-ISX-3P-240D-30KVA-480D-N3R DOE Efficiency Isolation Transformer | Approvals/Ratings |
| Transformer Type: Isolation Transformer | NRTL listed for United States |
| Transformer Configuration: Dry Type | NRTL listed for Canada |
| Phase: Three Phase | NEMA 3R Indoor/Outdoor Steel Enclosure |
| Frequency: 60 Hz | Meets or Exceeds NEMA ST-20 Standards |
| Primary Voltage: 240V AC | Isolation Transformer |
| Primary Connection: Delta | Distribution Type Transformer |
| Capacity: 30 KVA | Built to UL-50 Standards |
| Secondary Voltage: 480V AC | Seismic Qualified for Earthquake Loads |
| Secondary Connection: Delta | RoHS |
| Knockouts: - | CE Certified |
| FCAN (Above) Taps: 2 | |
| FCAN (Above) Taps: 4 | |
| Tap %: 2.5 | |
| Impedance: 2.5-6.5% typical | |
| Efficiency @ 35% Load: ~98% | |
| Winding Material: Aluminum | |
| Primary Termination (Std): Terminal Lugs | |
| Secondary Termination (Std): Terminal Lugs | |
| Termination Access: Front Access Cover | |
| Mounting: Floor | |
| Cooling: Air/Dry | |
| Insulation: 220°C | |
| Temperature Rise: 150°C | |
| Sound Level: Meets NEMA ST-20 Standards | |
| Enclosure Material: NEMA Type 3R Heavy Duty Ventilated - Steel | Â |
| Finish: ANSI 61 Grey | |
| Dimensions: 19.37"L x 24.39"W x 25.5"H | |
| Weight: 325 lbs | |
| Shipping Method: Pallet Freight - LTL | |
| Shipping Weight: 390 lbs | |
| Shipping Dimensions: 48''L x 40''W x 34''H | |
| The MT-ISX-3P-240D-30KVA-480D-N3R Three Phase 240V to 480 30 KVA Isolation Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-ISX-3P-240D-30KVA-480D-N3R provides increased reliability and protection against critical equipment failures. This 30 KVA isolation is designed for distribution loads and potential seismic activity. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: The MT-ISX-3P-240D-30KVA-480D-N3R Isolation transformer is a three phase transformer with a 30 KVA capacity rating. This isolation transformer is configured with an input voltage of 240V Delta 3-Phase AC on the primary side and an output voltage of 480 Delta 3-Phase AC on the secondary side. Featuring robust construction, this unit's cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The standard NEMA Type 3R enclosure makes the unit suitable for both indoor and outdoor applications and is designed to be floor mounted. Wall mount brackets or additional mounting accessories can be purchased separately. This 30 KVA distribution transformer features 220°C insulation with a 150°C temperature rise. Benefits: The MT-ISX-3P-240D-30KVA-480D-N3R 240V to 480 general purpose transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Integrated floor and wall mounting brackets make installation fast and easy and the offset outward facing floor installation holes allow for easy power tool access. The MT-ISX series of isolation transformers from Larson Electronics meet or exceed efficiency standards for United States and Canada. This results is overall lower cost of ownership throughout the life of the transformer. Safety: The MT-ISX-3P-240D-30KVA-480D-N3R is an isolation transformer which means that it provides operators with an increased level of protection against electric shock and injury. An isolation transformer can also suppress electrical noise in sensitive devices and transfer power between two circuits which must not be connected. The MT-ISX-3P-240D-30KVA-480D-N3R achieves these safety features by separating or "isolating" the powered device from the power source and insulation between the primary and secondary power sources. Applications: Converting 240V local grid power to 480 for on-site equipment. This 30 KVA power transformer is ideal for sensitive equipment such as CNC equipment, computers, medical devices, ovens, or laboratory instruments. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
