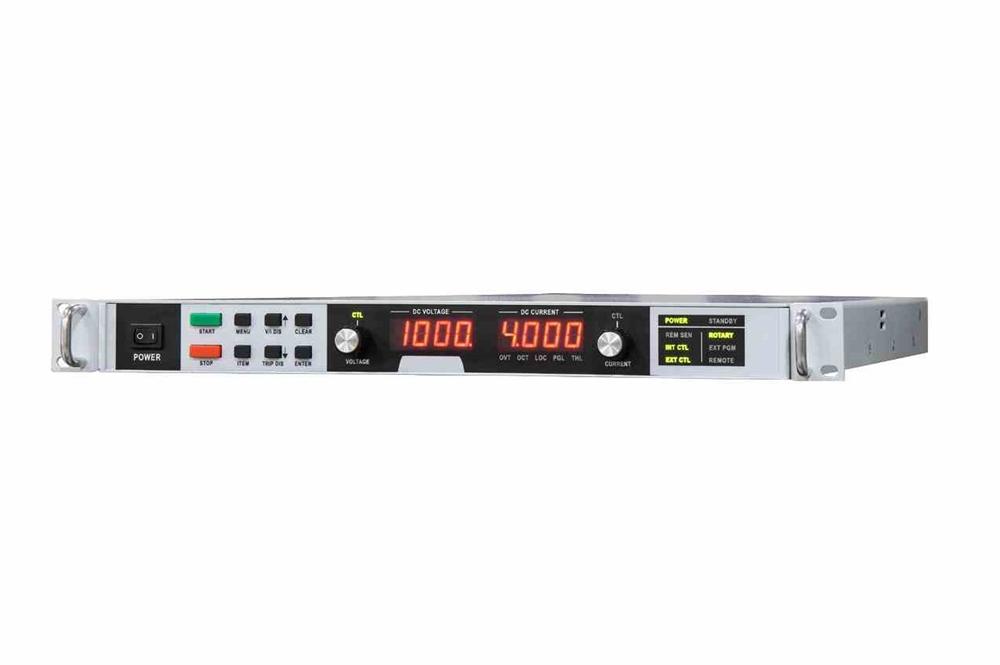

1.5 kW Programmable DC Power Supply - 85 -265V AC Input - 0-40V DC Output - LXI TCP/IP Ethernet

LARSON ELECTRONICSSKU: PL3-MT-PPS-120.240V-1.5KW-40VDC-NW-R1
filler

Prix:
Prix réduit$13,778.00

Description

Specifications / Additional Information
MT-PPS-120.240V-1.5KW-40VDC-NW-R1 Industrial DC Power Supply Summary
Device Type: Programmable DC Power Supply Side Air Intake/Rear Air Exhaust
Input Voltage Range: 85-265V AC (120-240V), 1PH +LXI Interface
Frequency Range: 50-400 Hz
Output DC Voltage: 0-40V DC (0-37ADC)
Rated Power: 1.5 kW
Ripple: 40 mVrms
Line Regulation (Voltage Mode): ± 0.004% of Full Scale
Line Regulation (Current Mode): ± 0.02% of Full Scale
Load Regulation (Voltage Mode): ± 0.01% of Full Scale
Load Regulation (Current Mode): ± 0.04% of Full Scale
Isolation: Maximum Input Voltage to Ground ±2500V AC; Maximum Output Voltage to Ground ±1000V DC
Maximum Slew Rate: 100 ms for Output Voltage/Current Change from 0 to 63%
Bandwidth: 3 Hz for Remote Analog Voltage Programming, 2 Hz for Remote Analog Current Programming
Power Factor: 0.99
Efficiency: 86%
Interface: LXI TCP/IP Ethernet Interface (+LXI)
Control Accuracy: ± 0.075% of Full Scale Voltage (Voltage Programming), ± 0.075% of Full Scale Voltage (OVT Programming), ± 0.075% of Full Scale Current (Current Programming), ± 0.075% of Full Scale Current (OCT Programming), ± 0.2% of Full Scale Voltage (Voltage Readback), ± 0.2% of Full Scale Current (Current Readback)
External Analog Programming and Monitoring Levels: 0-10V DC
External Analog Output Impedances: 100Ω (Voltage/Current Output Monitoring)
External Digital Programming and Monitoring Limits: 0 to 5V DC/10k Input Impedance (Input); 0 to 5V DC, 5 mA Drive Capacity (Output)
Remote Sense Limits: 3% Maximum Voltage Drop from Output to Load
Communication: Front Panel, 37-pin Isolated Analog-digital User I/O, RS232 Computer Interface
Diagnostics/Protection: AC Phase Loss, Excessive Thermal Conditions, Over Voltage Trip, Over Current Trip, Cleared Fuse, Excessive Program Line Voltage, Interlock Fault
Ambient Operating Temp: 0°C to +50°C
Humidity: Up to 95% Non-condensing RH
Materials: -
Mounting: Front Panel
Input AC Connection: 38660 Molex Input Connector
Output DC Connection: 0.25” x 0.75” Tin Plated Copper Bus; (2) 3/8-16 Threaded Insert
Dimensions: 1.75" x 19" x 24"
Weight: 32 lbs
' Product Overview '
The MT-PPS-120.240V-1.5KW-40VDC-NW-R1 from Larson Electronics is a Programmable DC Power Supply for industrial sites and systems. This 1.5 kW unit is designed to convert single-phase input voltages ranging between 85-265V AC to low voltage 0-40V DC. This device may be installed on front panels and comes with several diagnostic and protective features. The unit is suitable for use in marine-related installations, electro-mechanical applications, semi-conductor fabrication equipment and factory automation. Features: This programmable DC output power supply supports a single-phase input range of 85-265V AC (120-240V AC). Output is provided within a low voltage range of 0-40V DC (0-37ADC) and maximum 1.5kW. Equipped with a stepless rotary knob for setting voltage/current, the device features power and standby modes. Function keys on the panel includes: menu, item, V/I DIS, TRIP DIS, CLEAR and ENTER. Meters display output voltage, output current, voltage set point, current set point, over voltage trip and over current trip. Operators may view various enabled/disabled configurations on the front panel. The industrial power supply features front panel, RS-232 computer interface and isolated 37-pin I/O communication. This device features an efficiency rate of 86 percent and offers the following diagnostic/protective functions: AC phase loss, excessive thermal conditions, over voltage trip (programmable), over current trip (programmable), cleared fuse, excessive program line voltage and interlock fault. It supports cooling by side air intake and rear air exhaust. Interface/Connections: This DC power supply features LXI TCP/IP Ethernet interface (+LXI). A 38660 molex input connector can be used for input connections. Output is facilitated by two 3/8-16 threaded insert ports. Mount: The MT-PPS-120.240V-1.5KW-40VDC-NW-R1 is suitable for front-panel mounting requirements, via four openings at every corner of the unit. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit's output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 12 volts to find the total amperage draw that will be placed upon the converter. For example, if you are using two of our LEDP10W-120E 120 watt LED lights, 120 watts divided by 12 volts is 10 amps. This would mean the MT-PPS-120.240V-1.5KW-40VDC-NW-R1 is well suited as it would run at under 75% capacity to produce the necessary 10 amps. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life.
