Uninterruptible Power Supply - 208V to 120/208V - (4) Lead Acid Batteries - (11) Output

Uninterruptible Power Supply - 208V to 120/208V - (4) Lead Acid Batteries - (11) Output

Prix habituel $69,046.00 CAD
Prix habituel Prix promotionnel $69,046.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
MT-UPS-1P-208V-120KVA-120.208V-R1-N1 Industrial Battery Backup Ratings/Approvals
Unit Type: Uninterruptible Power Supply Surge Suppression
Dimensions: 30.4" x 27.9" x 17"
Weight: 767.2 lbs
Input Voltage: 208V AC, 40/70Hz +/- 5%
Output Voltage: 120/208V AC, 50/60Hz +/- 5%
Output Power Capacity: 20 KVA for 208V, 10 KVA for 120V
Output Form: Sinewave
Battery Type: (4) Lead Acid
Run Time: 4.9 Minutes @ Full Load
Recharge Time: 2.5 Hours
Remote Management Interface: Ethernet 10/100, RS-232
Remote Management Protocol: HTTP, SNMP
Interface: (1) RS-232 - 9 pin D-Sub (DB-9), (1) Ethernet - RJ-45, (1) EPO
Expansion Slots: SmartSlot
Surge Response Time: 0 nanosecond
Power Device: Emergency Power Off, Audible Alarm, Built-in Static Bypass, LCD Display, Internal Bypass
Operating Temp: 32°F to 104°F
Operating/Storage Relative Humidity: 0-95%
Sound: 59 dBA
Materials: -
Hardware Material: -
Mount: Rack Mount (Kit Included)
Input Connections: Hardwire 3-wire (2PH + G)
Output Connections: (2) NEMA L14-30R, (2) NEMA L6-30R, (4) NEMA L6-30R, (2) NEMA 5-20R, (1) Hardwire 4W - 2PH+N+G
Cable: External Serial Cable
Color: Black
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

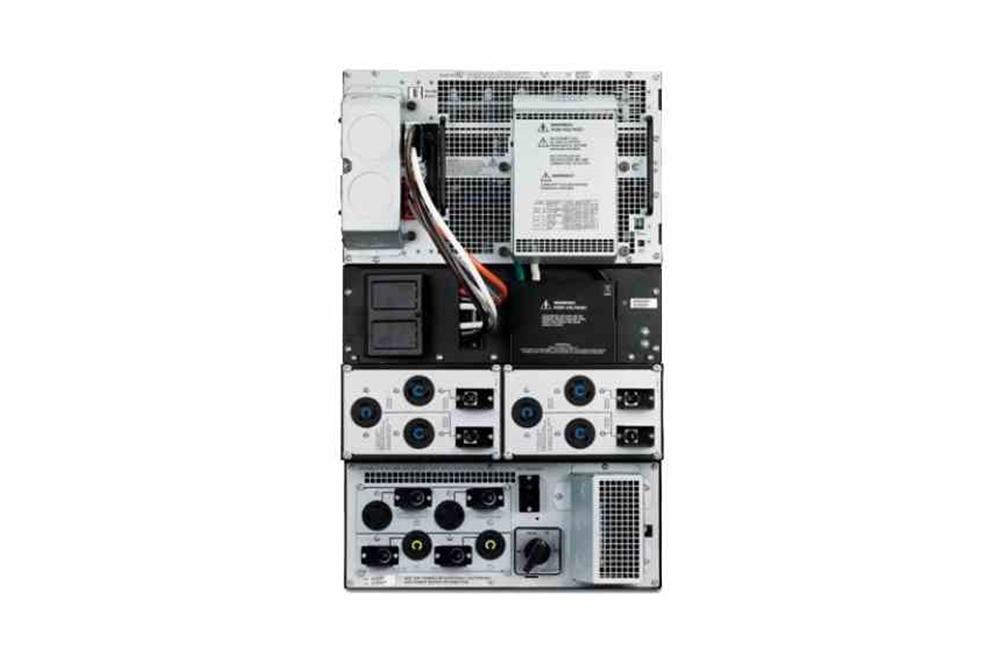

The MT-UPS-1P-208V-120KVA-120.208V-R1-N1 is an Industrial Uninterruptible Power Supply (UPS) for work sites and large facilities. This battery backup unit accepts single-phase 208V AC on the input side and provides single-phase 120/208V AC on the output side. The system is equipped with four lead acid batteries and is compatible with rack mounting installations. The MT-UPS-1P-208V-120KVA-120.208V-R1-N1 facilitates battery backup support for customer-provided equipment in work sites. This UPS features 208V AC, 40/70 Hz on the primary side and 120/208V AC, 50/60 Hz on the secondary side. Equipped with 20KVA at 208V and 10KVA at 120V capacity, the unit has four lead acid batteries that offer 4.9 minutes of run time at full load. The batteries take approximately 2.5 hours to recharge. The sine-wave UPS features emergency power off, an audible alarm, built-in static bypass, LCD display and internal bypass. The following interface ports are available on the unit: (1) RS-232 - 9 pin D-Sub (DB-9), (1) Ethernet - RJ-45 and (1) EPO. This system is expandable via a SmartSlot. Wiring: This unit accepts hardwire, 3-wire (2PH + G) input connections. The following output connections are available: (2) NEMA L14-30R, (2) NEMA L6-30R, (4) NEMA L6-30R, (2) NEMA 5-20R and (1) Hardwire 4W - 2PH+N+G. An external serial cable is included with the system. Mounting: The MT-UPS-1P-208V-120KVA-120.208V-R1-N1 is compatible with rack mounting applications (kit included).
