Smart Digital Phase Converter - 1PH to 3PH - 208/240 - 11 kVA - 10HP - Indoor Use - NEMA 1

Smart Digital Phase Converter - 1PH to 3PH - 208/240 - 11 kVA - 10HP - Indoor Use - NEMA 1

Prix habituel $10,294.00 CAD
Prix habituel Prix promotionnel $10,294.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
MTPC-DRB-208.240-1P-10HP-3P Digital Phase Converter Ratings/Approvals
Unit Type: Smart-Phase Digital Phase Converter Indoor Use (NEMA 1)
Phase Conversion: Single Phase to Three Phase Solid-state Performance
Horse Power: 10 HP (11 kVA 60 Hz) Start/Stop Push Button Switch
Single Phase Voltage Input: 208-250V Phase Power Failure Protection
Input Amp Range: 50-60 Accurate Voltage Balancing
Fuse/Circuit Breaker Size: 50 (Minimum)/60 (Maximum) Power Indicator Light
Minimum Wire Input: 6 AWG Made in the USA
Idle Amps: 6.4
Three Phase Voltage Output: 208-250V
Output Amps: 28
Voltage Balance: 2-3%
Form Factor: Rectangular Enclosure, Cylindrical Idler w/ Four Legs
Dimensions: 18" X 18" X 8" (Enclosure)
Weight: 131 lbs
Color: Natural Gray
' Product Overview '

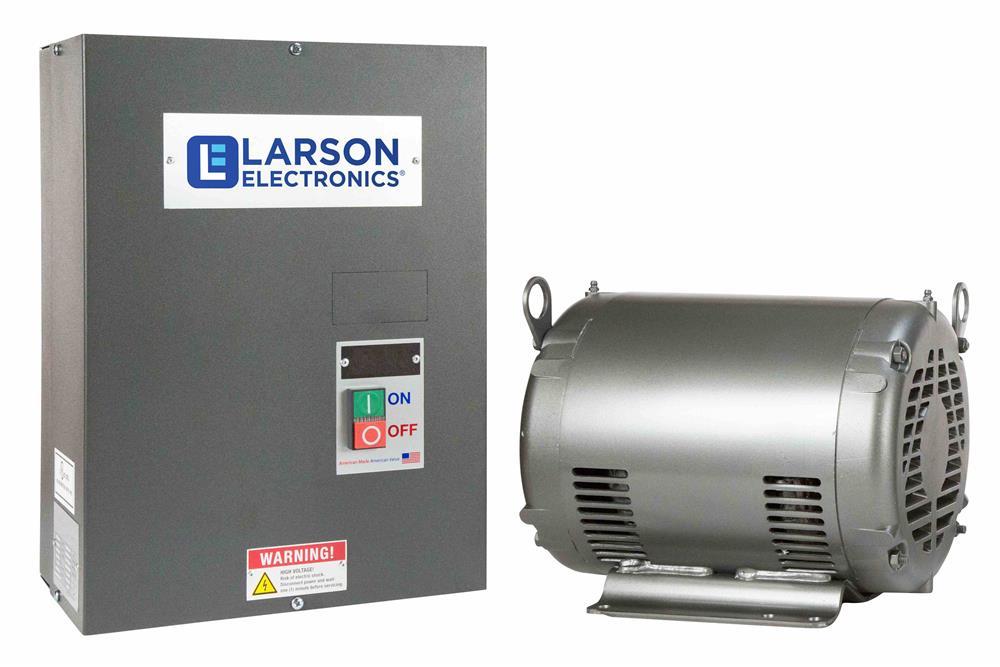

Made in the USA The Larson Electronics MTPC-DRB-208.240-1P-10HP-3P digital phase converter is designed to convert single phase power to three phase power. This solid-state unit accepts a single phase input range of 208-250V and provides a three phase output range of 208-250V. Operators may use this smart phase converter to power machines that require three phase power in locations where only single phase power is available. The MTPC-DRB-208.240-1P-10HP-3P digital phase converter is suitable for electronically converting single phase power to three phase power at 208-250V (input/output). This 10HP (11 kVA) unit accepts a single phase input range of 208-250V and an input amp range of 50-60. After conversion, 208-250V three phase power is provided on the output side at 28 amps. The unit offers +/- 2-3% voltage balance, depending on the single phase input power. This smart phase converter features a solid-state design for quiet and efficient operation when producing the third leg of power (with help from an induction generator). A microprocessor is used to regulate the output voltage for consistent performance. The unit comes with a with a start/stop push button switch for seamless activation. The power distribution blocks are oversized for easy installation in the preferred location. This unit supports complete phase power protection in the event of failure. The MTPC-DRB-208.240-1P-10HP-3P is housed in a NEMA 1 enclosure, making it suitable for indoor environments. This level of protection allows the smart phase converter to withstand the ingress of solid objects, such as falling dirt. Applications: Table saws, milling machines, drill presses, belt sanders, grinders, mixers, dust collectors, fans, air compressors, pumps and more.
