30 Amp Non-Fused Manual AC Disconnect Safety Switch - 600V AC, 3-Pole - 316 Stainless Steel
30 Amp Non-Fused Manual AC Disconnect Safety Switch - 600V AC, 3-Pole - 316 Stainless Steel
| PDU-NFMDS-SS-600V-3P-30A Non-Fused AC Disconnect Switch | Ratings/Features: |
| Unit Type: Non-Fused Manual AC Disconnect Switch | NSF Certified |
| Dimensions: 4.9" x 7" x 5.4" | NEMA 4X Enclosure |
| Weight: - | UV Stabilized Materials |
| Voltage: 600V | Â |
| Max Amp Rating: 30 Amps | Â |
| HP: 15 HP | Â |
| Disconnect Type: Non-Fused | Â |
| Poles: 3P | Â |
| Contacts: (2) Auxiliary | |
| Operating Temperature: -40°C to 75°C | |
| Materials: 316 Stainless Steel | |
| Mount: Din Rail Mount | |
| Â | |
| Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | |

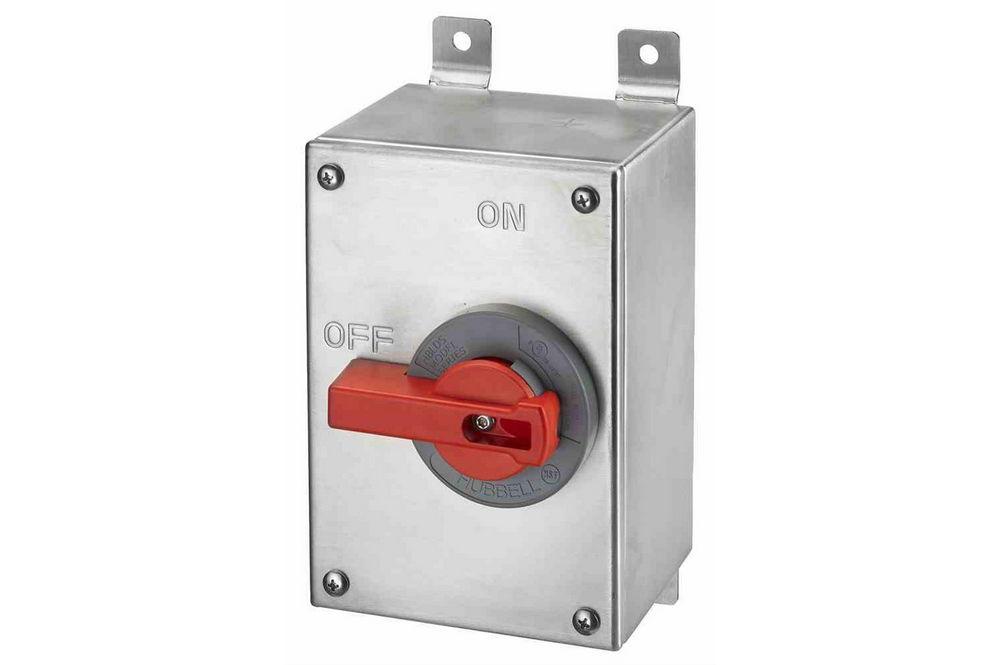

| The PDU-NFMDS-SS-600V-3P-30A is an AC Disconnect Switch that is an accessory for power distribution systems. This 30-amp power distribution accessory acts as an overload breaker and comes with a 600V voltage rating. The non-fused unit is constructed of stainless steel and UV stabilized materials. The PDU-NFMDS-SS-600V-3P-30A is a non-fused AC disconnect switch that is rated for 30 amps. This 15 HP power distribution accessory has a 3-pole configuration along with a 600V AC voltage rating. A red handle is used to engage the non-fused disconnect, which can be locked in its OFF position to prevent tampering. The cover cannot be removed when the handle is in the ON position. The PDU-NFMDS-SS-600V-3P-30A is constructed of 316 stainless steel with a neoprene gasket. Suitable for outdoor locations, the unit`s enclosure is rated Type 4X and is suitable for NSF compliance. All of the materials are UV stabilized for durability. This non-fused disconnect supports din rail mounting configurations for space-saving installations. Applications: Industrial and light commercial applications, air conditioning units, food processing and any other power distribution systems that require overload breaker protection. Â |
