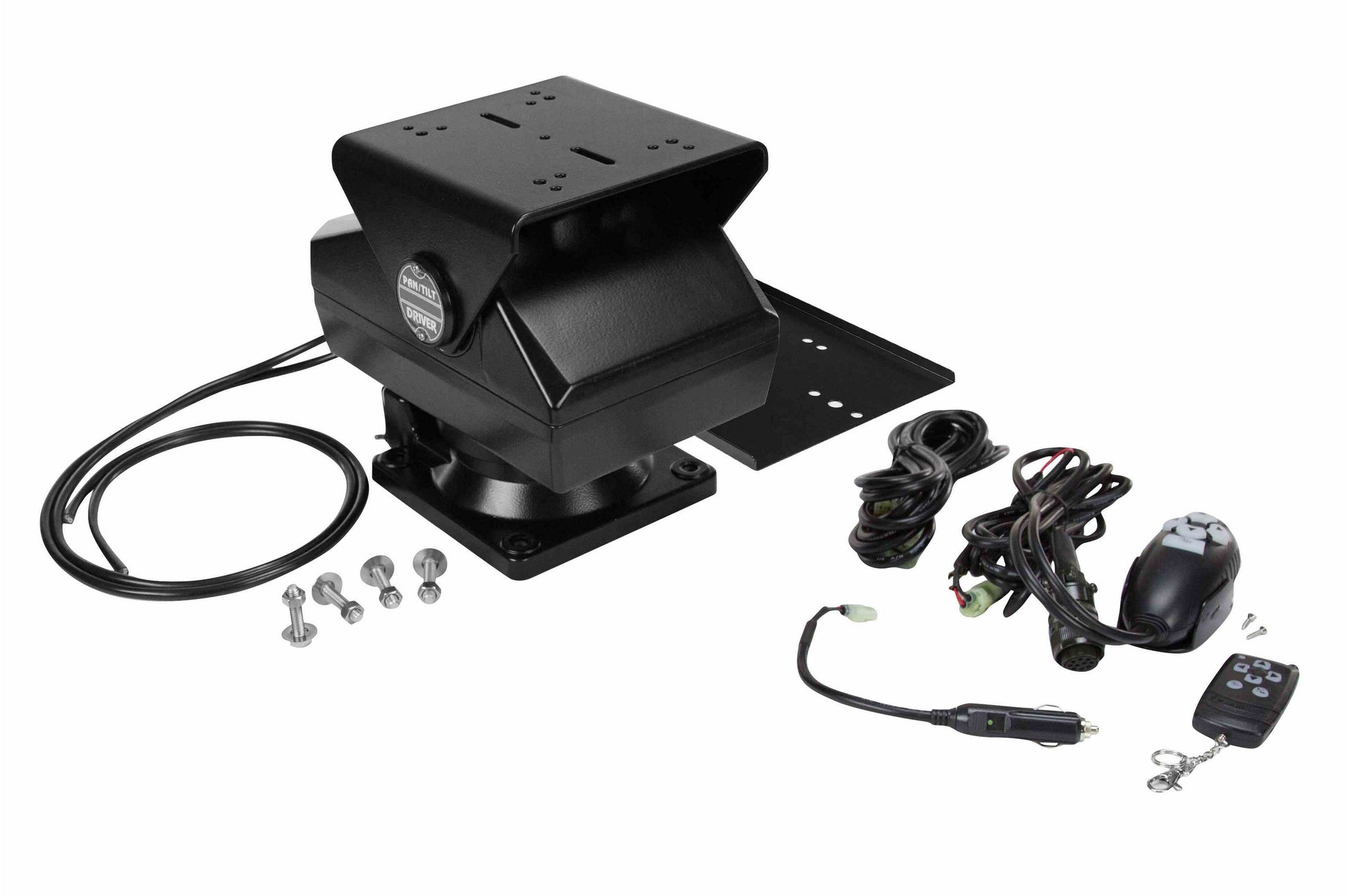

Larson Remote Controlled Pan Tilt Base Rotates and Tilts with Mounting Plate

Larson ElectronicsSKU: PL3-PTB-1
filler

Prix:
Prix réduit$3,488.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
The PTB-1 industrial grade pan tilt base is designed to provide wireless and hard wired remote control of lights and equipment. This remote control unit allows operators to rotate through from 0° to 355°, tilt from -60° to +30°, and mount equipment weighing up to 65lbs.
The PTB-1 pan/tilt base provides operators with a remote way to control lights, cameras, and other equipment mounted to the base. An 8" by 10" mounting plate allows operators to mount a variety of user provided equipment to the top of the pan/tilt base, including LED and HID lights, cameras, and antennas. Wired and wireless remote controls are provided with this unit, providing flexibility in the field.
This unit is constructed of die-cast aluminum and powder coated for added corrosion resistance. The internal gears of the PTB-1 provide no slip and no "slop" during operation, and the pan/tilt base holds its position after movement has stopped. Mounting is provided via four-corner thru-holes. This pan/tilt base will keep its position during storms and strong winds, and holds up to vibrations in vehicle and offshore applications.
The PTB-1 is configured for remote software control via Pelco-D protocol. This allows operators to control the pan and tilt this unit from a computer control station.
Hard wired and wireless remote controls are both included with the PTB-1. The wireless remote control is operated from the wireless key fob, is battery operated, and controls up, down, left, right, and on/off. The hard wired remote provides 25` of cable with an Am phenol 10-SL waterproof disconnect at the base of the fixture. The handheld wired remote is located 15` from the light, with a 10` from the light leading to the power source. Two individual +/- leads on the pan/tilt base allow operators to power user provided equipment from the same power source without running additional cabling. The PTB-1 is offered in 12V or 24V DC
.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Dimensions: 15.86"-L x 8.03"-W x 9.92"-H
Weight: 24 lbs
Voltage: 12V or 24V DC
Rotation: 0° to 355°
Tilt: -60° to +30°
Pan Speed: 12°/Sec
Tilt Speed: 6°/Sec
Pan Electrical Power: 6 Watts
Tilt Electrical Power: 15 Watts
Maximum Load: 65 lbs
Maximum Torque: 468.68 ibf-in
Ambient Operating Temp Range: -25° C to +50°C
Ingress Protection: IP54
Housing Material: Die-Cast Aluminum
Finish: Powder Coated - Black
Mounting: 4-Corner Thru-Hole
Remote: Hard wired & wireless
Wiring: 25` Cable w/ Inline Remote - (2) 1` Pigtails
