Larson Remote Controlled Magnetic Pan Tilt Base Rotates and Tilts with Mounting Plate - (4) 200 lb Magnets
Larson Remote Controlled Magnetic Pan Tilt Base Rotates and Tilts with Mounting Plate - (4) 200 lb Magnets

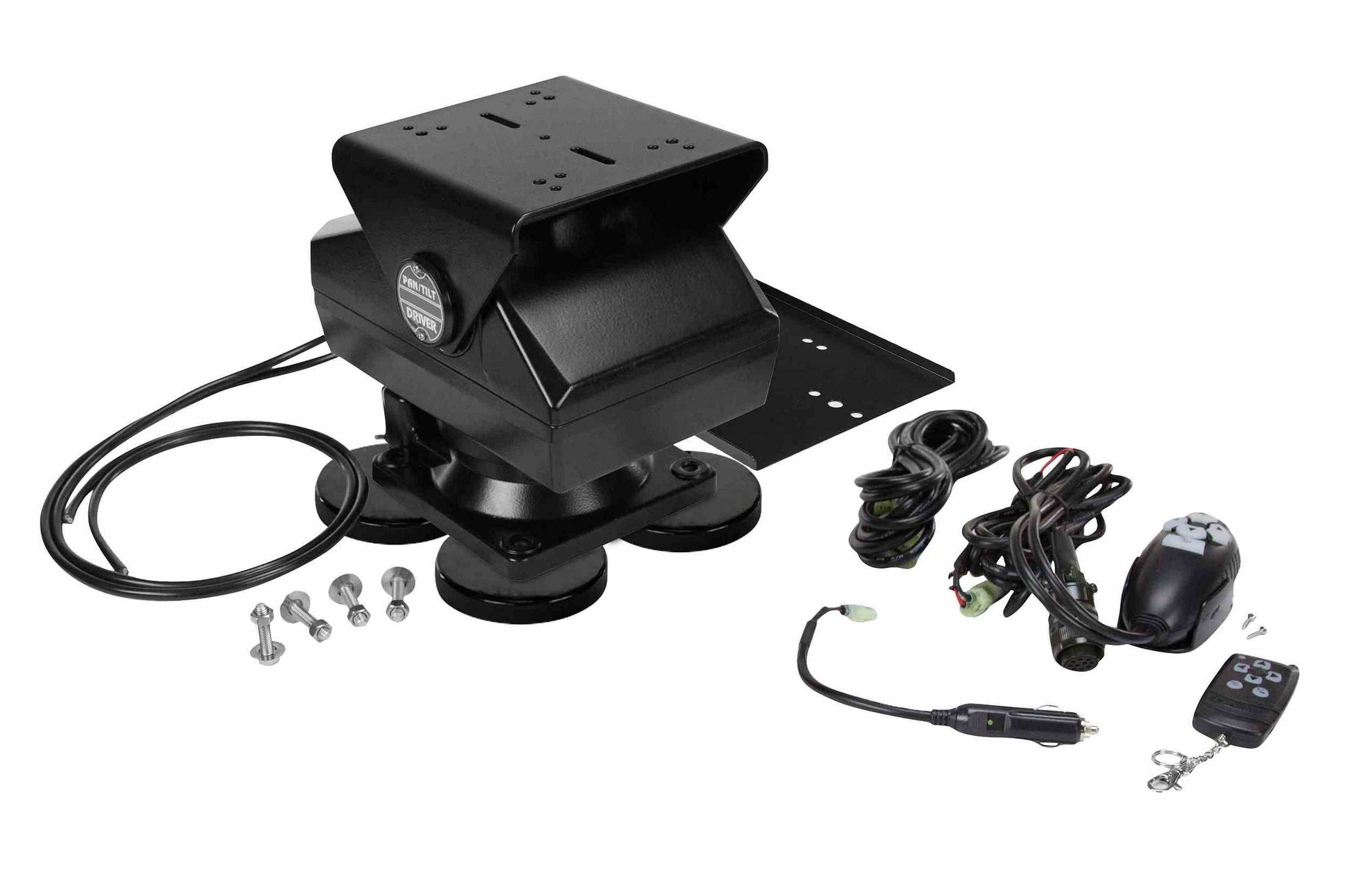

The PTB-1-M-30C-4C from Larson Electronics is an Industrial Grade Magnetic Pan Tilt Base that is designed to provide wireless and hard wired remote control of lights and equipment. This remote control unit allows operators to rotate through from 0° to 355°, tilt from -60° to +30°, and mount equipment weighing up to 100 lbs. The
PTB-1-M-30C-4C
features one 200 lb magnet on each corner of the base for a total of four 200 lb magnets for quick and easy temporary mounting of the base and attached equipment.
The PTB-1-M-30C-4C magnetic pan/tilt base provides operators with a remote way to control lights, cameras, and other equipment mounted to the base. An 8" by 10" mounting plate allows operators to mount a variety of user provided equipment to the top of the pan/tilt base, including LED and HID lights, cameras, and antennas. Wired and wireless remote controls are provided with this unit, providing flexibility in the field.
This unit is constructed of die-cast aluminum and powder coated for added corrosion resistance. The internal gears of the PTB-1-M-30C-4C provide no slip and no "slop" during operation, and the pan/tilt base holds its position after movement has stopped. Mounting is provided via four 200 lb magnets with one one each corner of the unit for simple and secure temporary mounting. This pan/tilt base will keep its position during storms and strong winds, and holds up to vibrations in vehicle and offshore applications.
Hard wired and wireless remote controls are both included with the PTB-1-M-30C-4C. The wireless remote control is operated from the wireless key fob, is battery operated, and controls up, down, left, right, and on/off. The hard wired remote provides 30` of cable between the pan tilt base and handheld remote, and an additional 4' of cable from the remote to the cigarette plug. This unit also includes an Am phenol 10-SL waterproof disconnect at the base of the fixture. Two individual +/- leads on the pan/tilt base allow operators to power user provided equipment from the same power source without running additional cabling. The PTB-1-M-30C-4C is offered in 12V or 24V DC
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Dimensions: 8"L x 11"W x 10"H
Weight: 24 lbs
Voltage: 12V or 24V DC
Rotation: 0° to 355°
Tilt: -60° to +30°
Pan Speed: 7.2°/Sec
Tilt Speed: 3.6°/Sec
Pan Electrical Power: 6 Watts
Tilt Electrical Power: 15 Watts
Maximum Load: 100 lbs
Ambient Operating Temp Range: -25°C to +50°C
Ingress Protection: IP54
Housing Material: Die-Cast Aluminum
Finish: Powder Coated - Black
Mounting: (4) 200 lb Magnets (One Per Corner)
Remote: Hard wired & wireless
Wiring: Â 30` Cable b/w PTB & Remote - 4' Cable b/w remote & cigarette plug - (2) 1` Pigtails
