PWM Controller - Pulse Width Modulator - Dims LED lights - 30A - 12V-24V DC

LARSON ELECTRONICSSKU: PL3-PWM-30
filler

Prix:
Prix réduit$506.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
PWM-30 Pulse Width Modulator Controller Features/Ratings
Dimensions: 3.98"L x 2.06"W x 1.65"D Waterproof Enclosure
Weight: 0.26 lbs 0-100% Dimming Control
Voltage: 12/24V Requires 12V-24V DC Input
Wattage: Up to 360W 12V or 720W 24V Easy to Use Turn Knob
Power Rating Max Amps: 30
Power Input: Deutsch Connectors
Power Output: 1 ft. wiring
Working Temperature: -20ºC to +60ºC
Dimmable Range: 0-100%

' Product Overview '

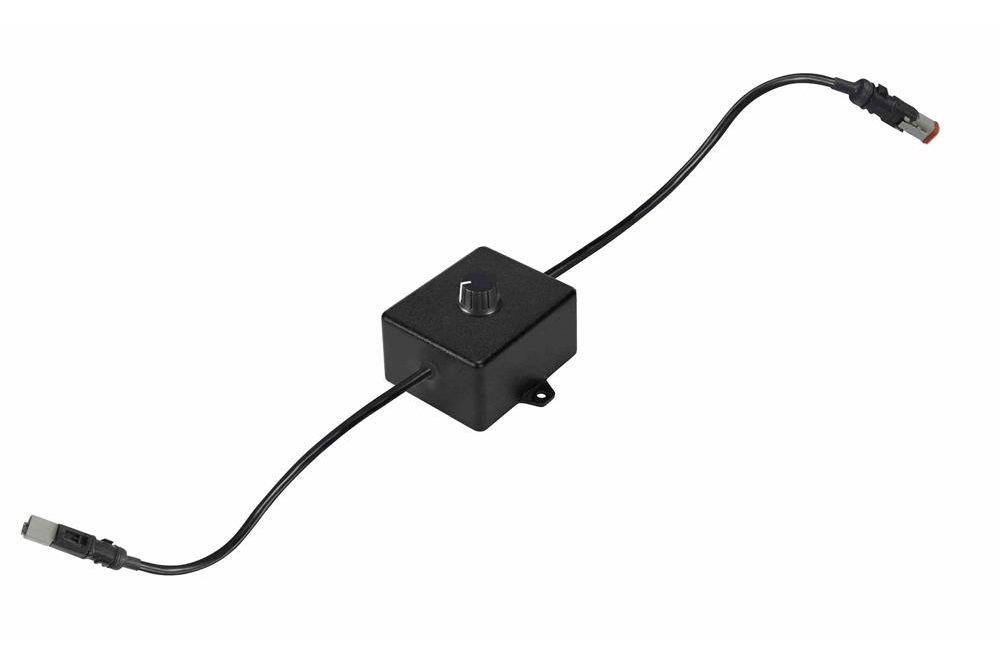

The PWM-30 Pulse Width Modulator Controller is designed to dim any flexible LED strips with 0-100% dimming control. PWM controllers are CPU controlled, digital alternatives to resistance based rheostats. This 30A max PWM controller has a rotating knob that enables the operator to control the brightness of the LED light, making this PWM ideal for operators who have use for a "dimmer" switch. The PWM-30 dims light up to 360W on 12v or 720W on 24v. This surface mounted PWM is housed in a waterproof enclosure and can also be used to dim halogen lights. Dimming halogen lights with a PWM is more efficient than using standard rheostats. Rheostats create resistance, but always draw the same amount of amps. Thus, operators using halogen lights while dimming with a rheostat will draw down their battery capacity at the same rate as if they were running the light at full power. By using a PWM, the light will only draw the amps necessary to produce the dimmed output. If an operator were running the light at half brightness, then they would double their battery life.
Plug/Wiring: The PWM-30 is designed to operate on 12-24V DC voltage with 30A max and also produces 12-24V DC on output channel 1. It is equipped with male and female 2 pin Deutsch connectors for input wiring and 1 foot of output wiring.
