PWM Controller Kit - Pulse Width Modulator - Dims LED Lights with Signal Wire

LARSON ELECTRONICSSKU: PL3-PWM-SGV
filler

Prix:
Prix réduit$492.00

Description

Specifications / Additional Information
PWM-SGV Pulse Width Modulation Controller Kit Ratings/Approvals
Type: Pulse Width Modulation Controller Kit Dims LED Lights
Input Voltage: 12 V DC Compact Design
Dimming Range: 50% to 100%

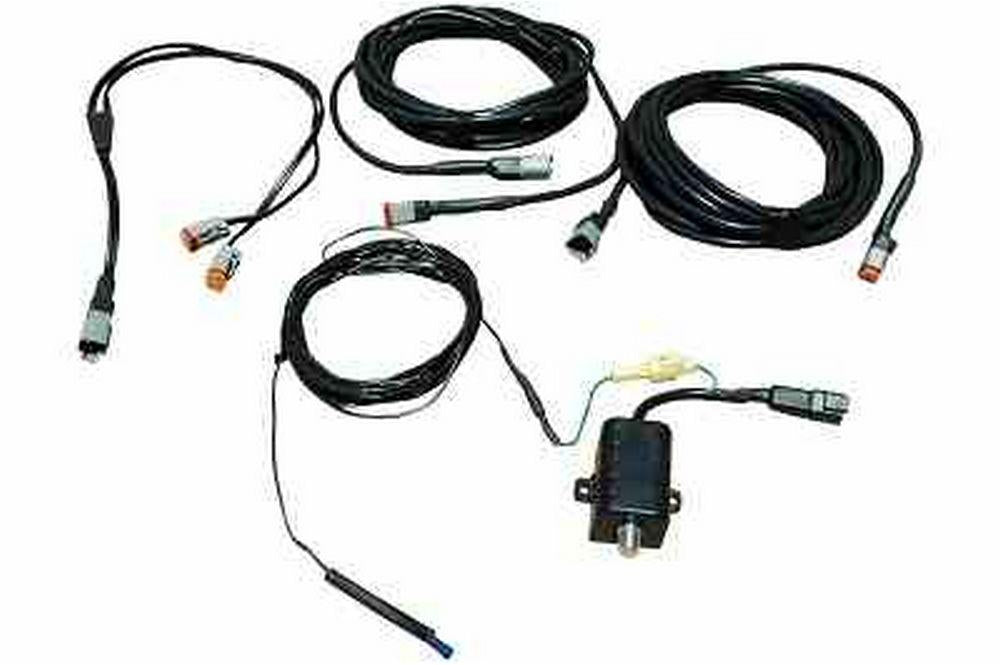

Wiring: Y-Splitter with Deutsch Connectors, (2) 20` 16/2 power harnesses, (1) 20` Harness for Signal Control Wire.
Switch Type: Rotary
Mounting: Handheld or Surface Mounted Toll Free: 1-800-369-6671
  Intl: 1-903-270-1187
  Fax:1-903-498-3364
  E-mail:
' Product Overview '
The PWM-SGV from Larson Electronics is a Pulse Width Modulation Controller Kit that is designed to dim LED lights between 100% and 50% of their light output capabilities. A convenient rotating switch allows the operator to quickly and easily adjust the brightness of the connected light. This pulse width modulator controller kit is designed to dim any and all LED lights with a pulse/signal wire, indicated with a "P" in the name. PWM controllers are CPU controlled, digital alternatives to resistance based rheostats. This PWM controller has a rotating switch that enables the operator to control the brightness of the LED light. Thus, many operators will use this as a "dimmer" switch. This PWM is designed to work inline with any of the Larson Electronics LED lights with a signal wire, including our LEDP10W series of LED lights. It works on 12V DC. Because this dimmer adjusts the pulse of the LED drivers and not the power going to the drivers, amperage does not affect nor limit this dimmer. There is no limit on how many LED lights that can be controlled from a single switch. It is equipped with a 2 pin Deutsch connectors so that it can be used inline with any Larson Electronics harness and/or cord solution. This PWM can be used as a handheld or it can be surface mounted. Mounting ears extend from the unit to enable operators to surface mount the unit. A dial extending from the end of the PWM enables operators to control the brightness of the attached LED light. The PWM-SGV comes with the dimmer control modular, a Y-Splitter terminated in Deutsch connectors, and a 20` harness for the signal control wire. Kit Includes: - Y-Splitter harness for splitting incoming power between existing light and PWM dimmer switch - (2) 20 16/2 SOOW harnesses terminated in Deutsch connectors. Used for extending the distance of the light and dimmer switch after Y splitter - (1) 20` 18 AWG single conductor harness for transmitting signal from light to dimmer switch. Includes Duetsch connector for dimmer connection, and (1) butt-splice with heat shrink for making connection to existing light fixture(s).
