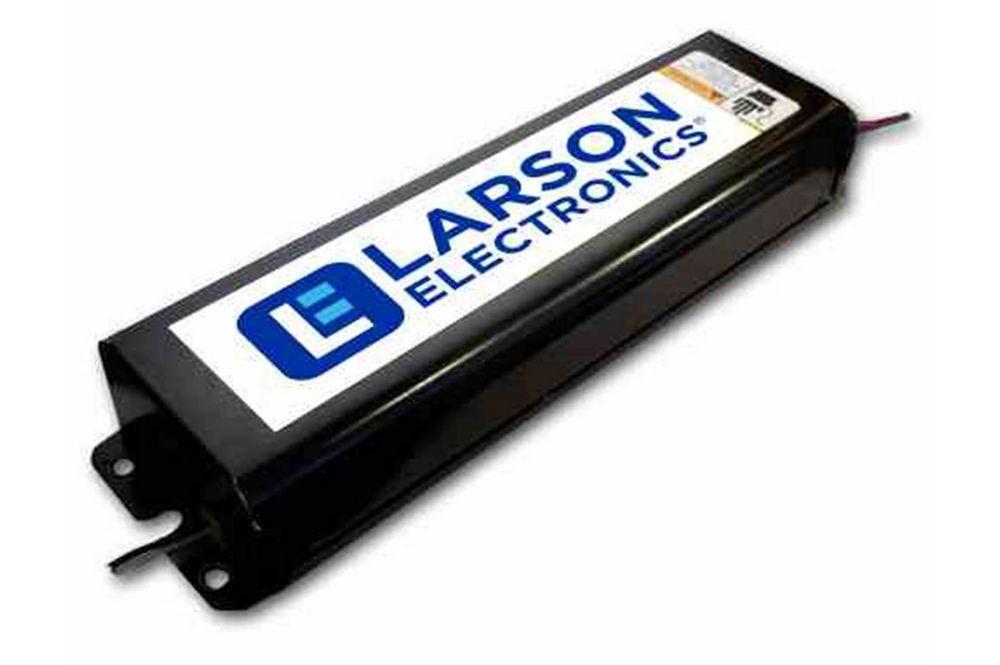

T12HO Magnetic Ballast - 120V AC - 60Hz - 1.5 Amps - Rapid Start - Thermally Protected

LARSON ELECTRONICSSKU: PL3-RBALL-T12HO-M-2L-1.5A
filler

Prix:
Prix réduit$394.00

Description

Specifications / Additional Information
RBALL-T12HO-M-2L-1.5A 120V T12HO Magnetic Ballast Ratings/Approvals
Type: T12HO Ballast UL Listed & CSA Certified
Dimensions: 11-3/4"L x 3-3/16"W x 2 5/8"H High Power Factor
Weight: 10 lbs Rapid Start
Line Voltage: 120V AC, +5%, -10%, 60Hz Maximum Ballast Case Temperature Not to Exceed 90°C
Input Current: 1.6 Amps Thermally Protected
Input Power: 177 Watts Install in Accordance to National Electric Code
Minimum Start Temperature: 15°C (60°F)
Power Factor: > 0.98
Ballast Factor: 0.92
Ballast Efficacy Factor: 0.52
T.H.D. %: <10
Crest Factor: <1.7
Sound Rated: B
Mounting: Magnetic
Remote Mounting: 15` w/ Minimum 18 AWG
' Product Overview '
The RBALL-T12HO-M-2L-1.5A from Larson Electronics is a 120V T12HO Magnetic Ballast that draws 1.5 amps and is designed for two lamp, F72T12 flourescent light fixtures. The RBALL-T12HO-M-2L-1.5A magnetic ballast is ideal for two lamp, F72T12 flourescent light fixtures. This 60Hz ballast draws 1.6 amps and is designed to operate with 120V AC current. The RBALL-T12HO-M-2L-1.5A can be used to replace lost, damaged, broken or otherwise compromised 120V T12HO ballasts.
