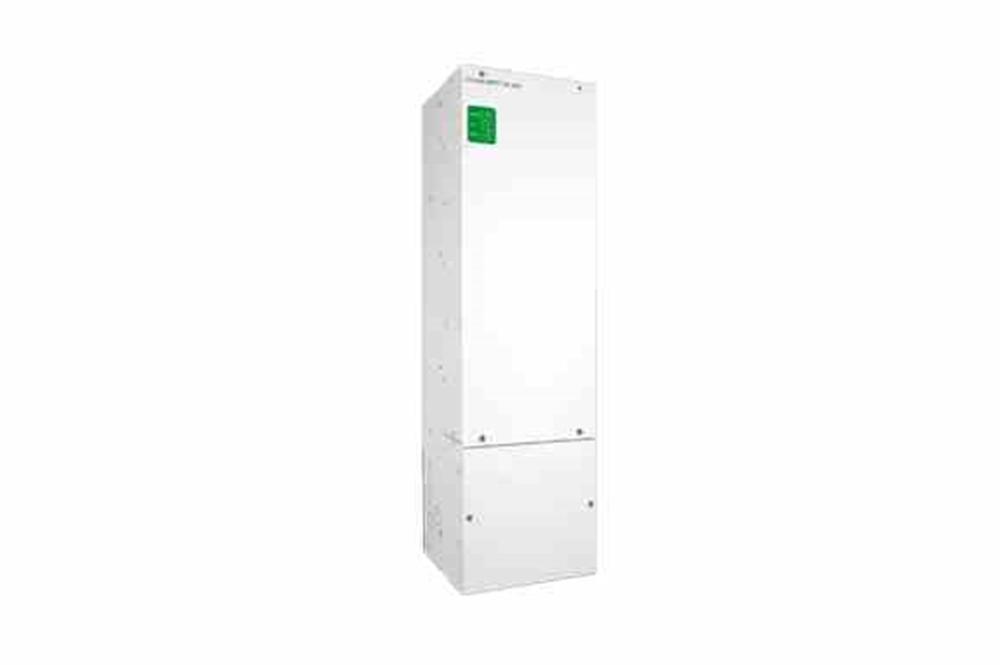

80A Charge Controller - 24-48V - Charge Batteries from Solar Panels - IP20

LARSON ELECTRONICSSKU: PL3-SPCC-80A-24.48V-R1
filler

Prix:
Prix réduit$7,116.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
SPCC-80A-24.48V-R1 Charge Controller Ratings
Unit Type: Solar Charge Controller IP20 Rated
Dimensions: 30" × 8.6" × 8.6" Remote Monitoring
Weight: 29.8 lbs Shade-tolerant Fast Sweep MPPT Algorithm
Input Voltage Range: 24-48V Selectable Multi‑stage Temperature-Compensated Charging
PV Array Operating Voltage: 195V to 550V
Battery Voltage Operating Range: 16V to 67V DC
Array Short-circuit Current: 35A
Maximum Charge Current: 80A
Maximum Output Power: 2,650W @ 24V, 4,800W @ 48V
Charger Regulation Method: Three‑stage (Bulk, Absorption, Float) + Manual Equalization, Two-stage (Bulk, Absorption) + Manual Equalization
Supported Battery Types: Flooded, GEL, AGM, Lithium-ion, Custom
Maximum Power Conversion Efficiency: 94% @ 24V, 96% @ 48V
Power Consumption at Night: < 1W
Battery Temperature Sensor: Included
Aux Output: Dry Contact Switching up to 60V DC, 30V AC, 8A
Ambient Operating Temperature: ‑20 °C to 65 °C
Materials: Aluminum Sheet Metal
Mount: Vertical Wall Mount
Recommended PV Wire Size: #6 AWG to #14 AWG
Knockout Sizes: 1/2", 3/4", 1" and 1 1/4"
Color: White
' Product Overview '
The Larson Electronics SPCC-80A-24.48V-R1 Solar Charge Controller provides a safe method for regulating power between solar panels and batteries. This 80-amp device is compatible with 24-48V and features remote monitoring, shade-tolerant fast sweep MPPT algorithm and selectable multi-stage temperature-compensated charging. Operators may mount the 80-amp unit vertically on walls. The SPCC-80A-24.48V-R1 enables efficient solar and battery charging operation for solar-powered systems. This unit is compatible with 24-48V input voltage range and has an 80-amp maximum charge current. Equipped with selectable multi-stage temperature-compensated charging, the device offers 2,650W maximum power at 24V (4,800W at 48V). Charge regulation methods include three-stage + manual equalization and two-stage + manual equalization. The solar charger supports flooded, GEL, AGM, lithium-ion and custom batteries. An included auxiliary output provides dry contact switching up to 60V DC, 30V AC (8 amps). This IP20 rated solar charge controller is protected by an aluminum sheet metal chassis. Knockouts/Wiring: The following knockout sizes can be found on the unit: 1/2", 3/4", 1" and 1 1/4". This solar charger accepts #6 AWG to #14 AWG wiring. Mount: The SPCC-80A-24.48V-R1 is designed for vertical wall mounting installations.
