(2) 300W Solar Panels w/ Pole Mounts - 60 Cell Utility Module - Anodized Aluminum Frame - Mounting Kit

LARSON ELECTRONICSSKU: PL3-SPK-PM-1X-300W-2KT
filler

Prix:
Prix réduit$3,538.00

Description

Specifications / Additional Information
(2) SPK-PM-1X-300W-2KT 300W Solar Panel w/ Mounting Kit Certifications
Solar Cells: Monocrystalline 6 inches (156.75 x 156.75mm) UL 1703 Certified and Registered
Dimensions (Per Panel): 64.9"L x 39.1"W x 1.38"H UL Module Fire Performance: Type 2
Cells Orientation (Per Panel): 60 Cells (6x10) CEC
Weight (Per Panel): 41 lb NEC2008 Compliant
Ambient Operating Temperature: -40°C to +85°C IEC 61215/61730
Maximum System Voltage (Per Panel): 1000V DC ISO 14001
Nominal Operating Cell Temperature (NOCT): 44°C High Performance Under Low Light Conditions
Temperature Coefficient of Pmax (Per Panel): - 0.40%/°C Locking Connectors for Easy and Fast Connections
Temperature Coefficient of Voc (Per Panel): - 0.31%/°C Can withstand 25mm hail stones @ 51mph
Temperature Coefficient of Isc (Per Panel): 0.06%/°C Mounting Kit Included
Peak Power Watts - PMAX (WP) (Per Panel): 300
Power Output Tolerance - PMAX (%) (Per Panel): 0 ~ +5
Maximum Power Voltage - VMP (V) (Per Panel): 32.2
Maximum Power Current - IMPP (A) (Per Panel): 9.33
Open Circuit Voltage - VOC (V) (Per Panel): 39.5
Short Circuit Current - ISC (A) (Per Panel): 9.84
Fuse Rating (Per Panel): 15 A
Module Materials: Andonized Aluminum, Black
Grounding: Grounding Points on Each Corner

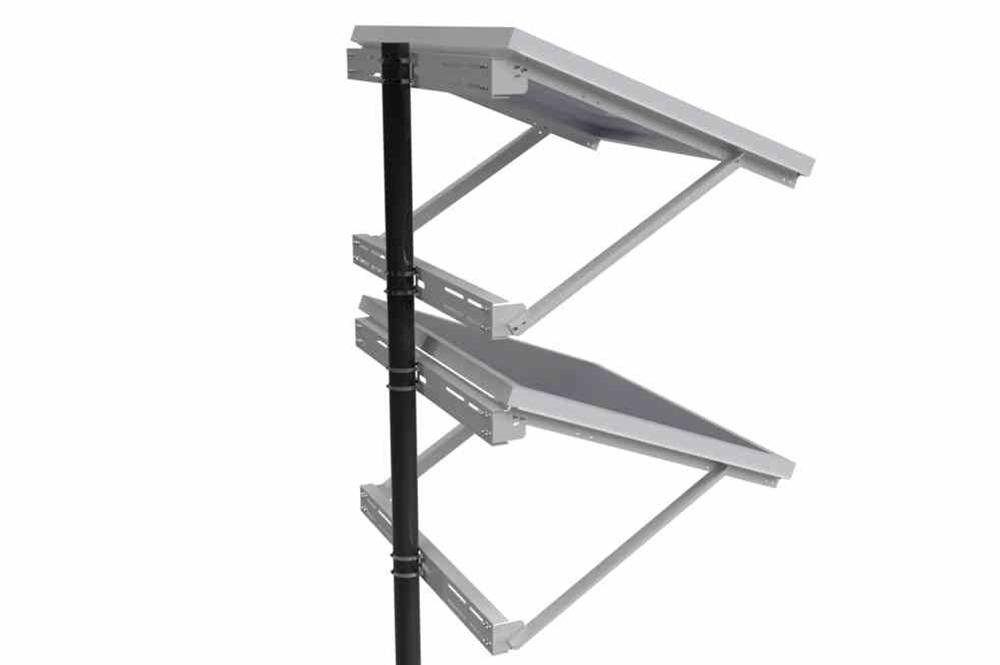

Mounting (Per Panel): (4) Pole Clamps w/ Hardware
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
The SPK-PM-1X-300W-2KT from Larson Electronics is a pair of 300W Solar Panels on Individual Mounts with high output modules designed for ground-mount installations that you can trust. The UV-stabilized anodized aluminum frame is easy to install with easily accessible grounding points on all four corners of the unit. The module's 60-cell form factor is ideal for maintaining the lowest BOS costs where space is not a constraint. It is ideal for large scale installations and is certified to withstand challenging environmental conditions. *Please note: Any free shipping offers do not apply to this solar panel.* The SPK-PM-1X-300W-2KT 300W Solar Panel features modules that offer the highest average output of any crystalline module. The unit's proven junction box technology has 12 AWG PV wiring and works with transformerless inverters. Locking plug-in connecters offer operators safe and quick connections. Mounting: Both units come with a mounting kit that allows the panel to be secured on poles measuring 2" - 6" in diameter. Each mounting kit includes four pole clamps and hardware. Mounting rails attach to the back of the solar panels for stability. Pole clamps are used to secure the railing components holding the solar panels to the pole. Operators can adjust the angle of the panel by moving the bottom pole clamp up and down until the desired position is achieved. After adjustment, simply tighten the bolts and clamps to complete the installation. The SPK-PM-1X-300W-2KT can either be mounted on the same pole together or on separate poles.
