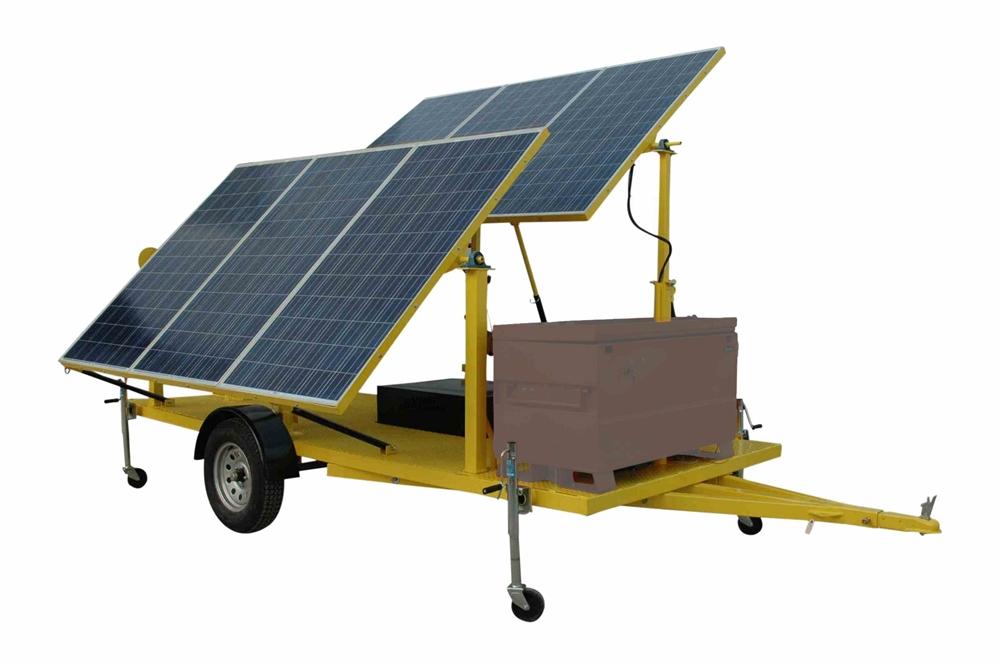

Solar Panel Trailer Frame Assembly - Can Hold Up To (6) 74.5"L x 50.5"W Solar Panels - Steel Frame/Stabilizing Jacks

LARSON ELECTRONICSSKU: PL3-SPL-6X-TPMK-TLR-M1
filler

Prix:
Prix réduit$20,966.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
SPL-6X-TPMK-TLR-M1 1.5kW Bolt-on Solar Panel Trailer Kit Ratings/Approvals
Unit Type: Solar Panel Trailer Frame Assembly Rotate and Tilt Control
Compatible Panel Dimensions: 74.5"L x 50.5"W
Max Number of Panels: 6
Stabilization: Locking Arms w/ Key Holes
Control: Rotate, Extend and Collapse
Frame Assembly Material: Steel w/ Industrial Grade Coating
Battery Box Enclosure: Included w/ N3R Cover
Battery Box Capacity: (8) 8D Batteries
Battery Box Enclosure Cooling: Natural; Bottom-located Vents
Wiring/Bolts: Customer Provided
Mount: Single-axle Trailer
Trailer Coating: Powder Coated or 2-part Epoxy Steel
Trailer Axle: 3,500 lbs Rating
Leveling: (4) 1,200 lbs Stabilizing Jacks
' Product Overview '
The SPL-6X-TPMK-TLR-M1 from Larson Electronics is a Solar Panel Trailer Frame Assembly that holds up to six solar panels measuring 74.5" long and 50.5" wide and offers portable mobility. Operators may tilt, rotate, extend or collapse installed panels for robust control when optimizing positions during harvesting/charging, storage or transportation. Equipped with a battery box enclosure, the trailer-mounted frame assembly is constructed of steel with an industrial-grade coating for added durability. **Please note that solar panels ARE NOT INCLUDED with this frame assembly** This trailer-mounted unit can be rotated until it faces inwards, which protects installed panels during transport. When deployed, the panels are rotated until they face upwards. In order to optimize sun capture, the panels can be set to +/- 15 degrees of the latitude of location on Earth. Houston, Texas, for example, is at a latitude of 30 degrees, so the winter setting is 45 degrees and the summer setting would be 15 degrees. While this does not make a huge difference, every little bit helps. The position of the panels are set via locking stabilization arms with key holes, which increases stabilization of the solar array during deployment in high wind applications. As part of the deployment, operators will set the four stabilizing jacks into position by pulling them out and pinning them into position. This assembly includes a battery box enclosure, which can hold up to eight, 8D batteries. The enclosure is protected by a top-located NEMA 3R rated cover. This cover serves as a shield and protects the unit from outdoor elements and weather. Natural cooling is provided by vented openings located at the bottom of the battery enclosure.
Click Photos to Enlarge
Trailer: The trailer itself is built on a 3500-pound rated axle and is approximately 16 feet long and 6 feet wide. The trailer is equipped with a removable tongue for storage, transport and security purposes. For an additional charge, we offer removable wheels in addition to the removable tongue for extra security. The four stabilizing jacks can be folded out from the frame and pinned into place. Four 1,200 lbs hand crank leveling jacks are used for leveling the unit up to a 37-degree slope. Jacks can be leveled by hand crank or attachment provided for power drills. The feet on the stabilizing jacks are over-sized and equipped with through holes for additional ground anchoring mechanisms into hard rock or concrete. Applications: Frame assembly for the following: solar powered systems, solar generators, remote powering of electronics, lights and equipment, as well as charging batteries and power packs for off-grid consumption.
