Pedestrian LED Crossing Sign - 24"x24" - Class I LED Beacon - Dual Motion Detector - Solar/Double Face

Pedestrian LED Crossing Sign - 24"x24" - Class I LED Beacon - Dual Motion Detector - Solar/Double Face

$6,094.00 CAD
$6,094.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
SPLED-IND-PED-WS-24.24-DF-2XMS Pedestrian LED Crosswalk Sign Ratings/Features
Listing: - SAEJ845, Class 1- Brightest Rating
Lamp Technology: LED Dual Motion Sensor
Dimensions: 24" x 24" (Sign Only) Multi-Strobe Pattern Options
Weight: 4 lbs (Strobe Light Only) Waterproof
Operation: 100% Remote Solar Power 25` Minimum Motion Sensing Range
Wattage: 14.4W 100% Remote Operation
Lumens: 1,440 lms Double Sided Sign
Luminous Efficiency: 100 Lumens per Watt
LED Lamp Life Expectancy: 50,000+ Hours
Strobe Color Options: Green, Amber, Red, White or Blue
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle (Strobe): Full, 360°
Lighting Configuration (Strobe): Strobing Flash
Sign Configuration: Double Faced
Power Efficiency: -
Power Factor: -
Motion Sensors: (2)
Sensor Adjustment Range: Independent; Up to 90 Degrees
Ambient Temp: -45°C to +55°C
Materials: Polycarbonate
Mount: Surface
Battery Type: Sealed Lead Acid
Wiring: 10` of 16/2 SOOW Cord b/w Solar Panel and Top of Sign
Sign Color: Yellow/ Black
' Product Overview '

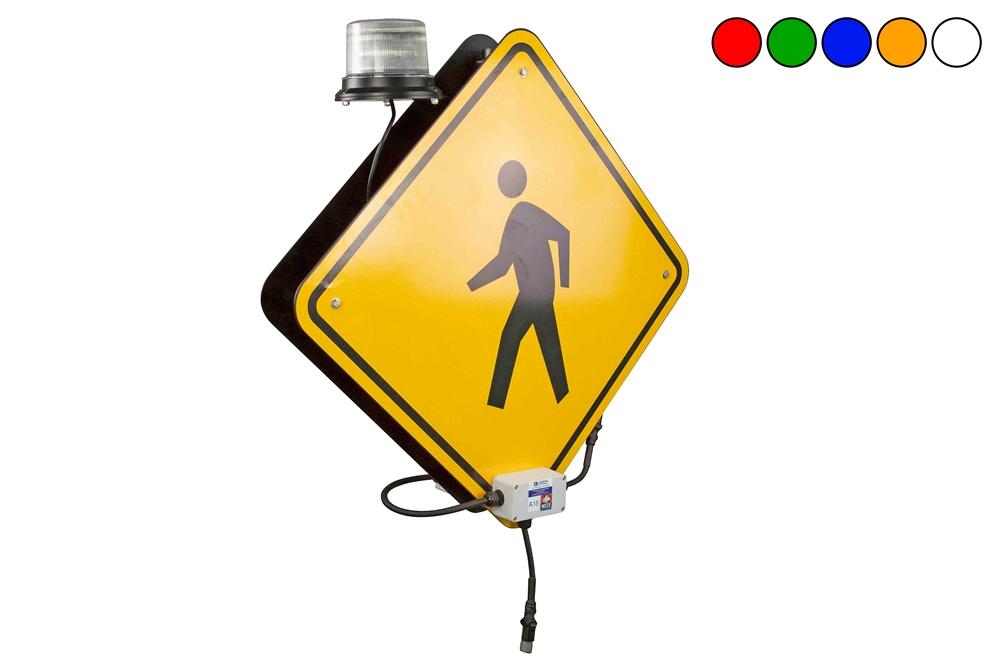

The Larson Electronics SPLED-IND-PED-WS-24.24-DF-2XMS Pedestrian LED Crossing Sign enhances pedestrian safety and is ideal for parking lots and sidewalks. The double-sided crosswalk sign measures 24"x24" and leverages a Class I rated LED strobe with dual adjustable motion sensors for illuminative notifications, when movement is detected. This unit is a 100% remote system powered by a solar panel. Color choices for the LED beacon include green, amber, red, white or blue. The SPLED-IND-PED-WS-24.24-DF-2XMS offers illuminated safety for pedestrians. Reflective material on the double-faced yellow/black sign ensures visibility, when viewed from different angles. Measuring 24"x24", the unit features a Class I rated LED beacon located above the sign. The LED strobe light is activated when movement is detected by any of the two adjustable motion sensors, which support a minimum sensing range of 25`. The motion sensors can be pointed in different directions, allowing the sign to face traffic, while one sensor faces the direction of crosswalk traffic and the second unit points to other high-activity areas. Operators may adjust both sensors up to 90 degrees for precise aiming of target areas. The light will stay on for 15 seconds after motion is detected by any of the two sensors. Sensitivity of both motion sensors can be adjusted to meet each application. The powerful LED beacon is equipped with 30 flash patterns, including four simulated rotating patterns. This beacon has a black powder coated die cast base that contains a fully potted circuit board. A clear polycarbonate lens protects the LED assembly; and the housing is waterproof, shock resistant and built for reliable operations. The strobe light is equipped with auxiliary LEDs on top, helping to make this a Class I rated beacon.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Power/Wiring: This unit is 100% remote, powered by a solar panel. The 30 watt solar panel recharges the battery in 5 hours with direct sunlight. As with all solar powered equipment, charging time is affected by the amount of available ambient light. When ambient light levels drop below a certain level, such as on very cloudy days, the unit will not recharge. A sealed lead acid battery pack is contained within the solar panel, not the crosswalk sign. The mounting apparatus is designed to allow a variety of mounting options including flat surfaces such as a wall and square or round pole mounting. The crosswalk sign is connected to the panel by a 10 foot 16/2 SOOW cord that provides flexibility for positioning of the solar panel and sign into their respective optimum locations independently of each other. Mount: The solar panel is weatherproof and designed to catch the maximum amount of sunlight possible when properly mounted. The motion sensors will activate the light upon detecting movement within range of the panel and keep the light on for 15 seconds after detection. For best results and to ensure clarity, the double-faced pedestrian sign should be mounted in a way that both sides are visible. Applications: Sidewalks, parking garages, busy industrial facilities, delivery bays, high-activity locations and more.
