50 Foot Telescoping Solar Megatowerâ„¢- 15-50' Light Tower - (2) Solar Panels - T-Head w/ (2) 5" x 5" Mounting Plates - 16' Trailer, (4) Outriggers - NVR/85' Coiled Cable - NDAA

LARSON ELECTRONICSSKU: PL3-SPLT-0.12K-LM50.6S-EW-240AL-2TB-TLR16-BCC-M3
filler

Prix:
Prix réduit$85,016.00

Description

Specifications / Additional Information
SPLT-0.12K-LM50.6S-EW-240AL-2TB-TLR16-BCC-M3 50' Six Stage Telescoping Solar Megatowerâ„¢ Quick Summary
Length: 13 feet - 50 feet National Defense Authorization Act (NDAA) Compliant - NVR
Weight: +-1300 lbs 13' to 50' Light Mast
Capacity: 150 lbs Steel Construction
Materials: Steel Powder Coated Finish
Finish: Powder Coated - Gloss Blue Removable Mast Head
Operation: Electric Winch 125 mph Wind Resistance
Winch Voltage Options: 120V or 240V AC 50/60 Hz Electric Operation
Cable: 3/16" Aircraft Cable Fully Solar
Mast Mounting: 1/2" Thick, 18" x 18" Six Bolt Hole Bracket (2) 60W Solar Panels
Equipment Mounting: 36" Wide T-Head w/ (2) 5" x 5" Mounting Plates on Underside for Customer Provided PTZ Camera Mounts 8CH NVR

Solar Specs
Solar Panels: (2) 60W
Solar Charge Controller Amps: 20A
Battery: 12V 240 aH Lithium Iron Phosphate
Battery Charger: 110/220 V w/ 5-10P Plug and 220V 2-pin Schuko Plug Adapter
Transformer: 10A 12V to 24V
Enclosure Type: Fan Cooled, Ventilated NEMA 3R
Maximum Runtime w/o Sun: 24 Hours @ 60W/24V Continuous Load
Cable: 85' Nycoil Coiled Cable
Protection: Cable Catcher/Guide
Job Box Size: 48" x 24" x 24" - Padlockable (No Locks Included)

NVR Specs
Device Type: Network Video Recorder - NDAA
Storage Capacity: 2 TB SATA Hard Drive
Channels: 8
Camera Resolution Support: Up to 8MP
Installation Type: Plug and Play
Incoming Bit Rate: 80Mbps
Outgoing Bit Rate: 64Mbps
FPS: 30 fps
Compression Format: H.265, H.264
Capabilities: Remote Configuration, Remote Viewing, Email Notification, Event Log, Event Notification and Video Analytics
Ethernet Speed: 10M/100M Self-adaptive
Ethernet Interface: RJ-45
Ethernet Port: (1)
Audio: Yes (Depends on Camera), 2-way Audio Streaming
Voltage: 52V DC
PoE: 802.3af / 802.3at
Power Consumption: ≤ 8W (without HDD)
Input: (1) RCA Audio
Output: (1) RCA Audio, (1) VGA, (1) HDMI, (1) USB 2.0, (1) USB 3.0
Amperage: -
Chassis: 1U Rack Mount
Operating Temp: 14°F ~ 131°F
Color: Black

Trailer Specs
Materials: Steel
Trailer Dimensions: 16'-L x 6'-W Trailer Bed
Hitch: 2" Ball Coupler
Wiring: 4-Pin Flat
Axle: 5,400 lbs
Suspension: 5,400 lbs 4-Leaf Double Eye Springs
Outriggers: (4) 30" Retractable Outriggers w/ 1,000 lb Manual Crank Leveling Support Jacks and Flat Feet
Wheels: (2) 15" 5x4.5 Steel Rims Special Orders - Requirements
Tires: ST205/75/D15 H188
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: ~16.5'-L x 4'-W x 5'-H Intl: 1-214-616-6180
Shipping Weight: +-2000 lbs
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '

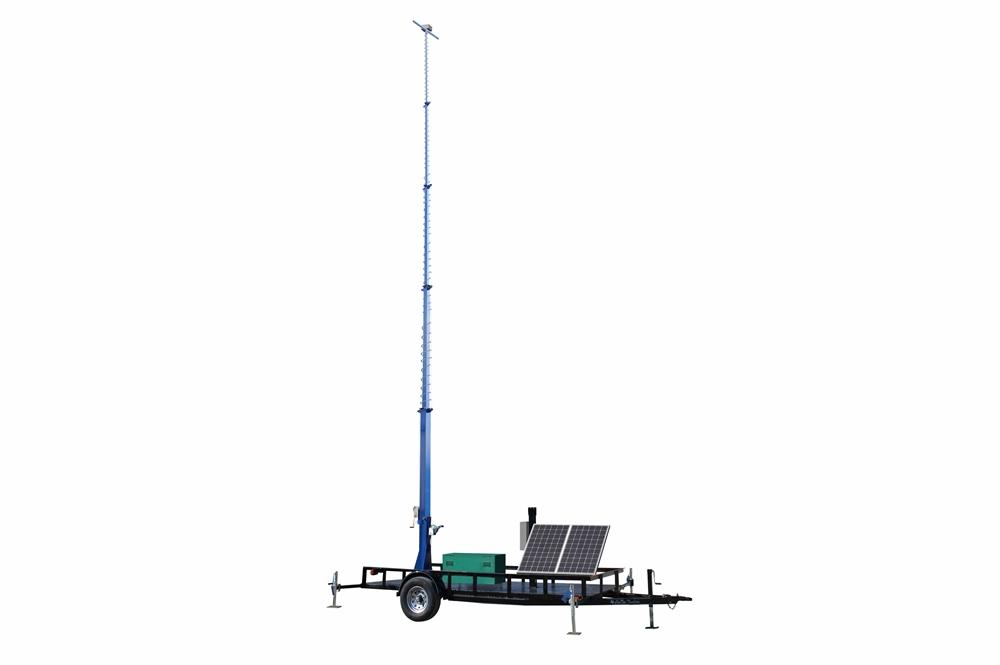

The Larson Electronics SPLT-0.12K-LM50.6S-EW-240AL-2TB-TLR16-BCC-M3 Solar Megatower™ provides a safe and effective way for operators to quickly deploy lights, security cameras, and other equipment to elevations up to fifty feet. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. Two solar panels, battery with battery charger, NDAA compliant NVR, job box and 85' of nycoil coiled cable with cable catchers are available on the system. The entire assembly is mounted onto a 16' single axle trailer with four retractable outriggers and flat feet, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping solar Megatower™ from Larson Electronics™ is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 50 feet for effective coverage. This 6-stage, aluminum light boom can be extended to 50 feet for maximum area coverage and collapsed to 13 feet for applications where a smaller footprint is required. Equipped with an 8-channel NVR and a padlockable job box, the tower is constructed of square aluminum tubing. The mast is extended to its full height using an electric winch with steel cable. The winch is available in either a 120V or 240V, 60 Hz configuration. Please make your selection below when ordering. The included NVR with the system complies with the 2019 National Defense Authorization Act (NDAA). The regulation bans federal governments, their contractors and businesses with national security interests from buying and using surveillance equipment made by specific major China-based manufacturers, including Hikvision, Dahua and their OEMs. Security products sold by Honeywell, Bosch, Panasonic, ADT, Flir and many more are affected by the ban. NDAA compliance also includes a ban on ZTE, Huawei and Hytera telecommunication equipment. The SPLT-0.12K-LM50.6S-EW-240AL-2TB-TLR16-BCC-M3 is equipped with two, 60-watt solar panels for harvesting sunlight and a 20-amp solar charge controller. Power storage is facilitated by a 12V, 240 aH lithium iron phosphate battery. When sunlight is insufficient, operators may replenish the battery using a 110/220V battery charger with a 5-10P plug and 220V 2-pin Schuko adapter. A 10-amp transformer is available, which steps up 12V to 24V and allows operators to power 24V equipment. All system components are housed in a fan cooled, ventilated NEMA 3R enclosure. The solar light mast is capable of operating 24V devices up to 60 watts. An empty job box measuring 48" x 24" x 24" is available on the trailer. Capable of holding customer-provided equipment, this box is padlockable (no locks included). This solar light tower comes with 85' of nycoil coiled cable for powering mounted equipment at the top of the mast from the NEMA 3R control box at the base. The top of the mast (center of the mast head) contains a 4" x 4" NEMA 3R junction box, which can be used to complete power connections between the coiled cable and equipment. The cable is protected by a wire mesh cable holder at the top of the mast to prevent binding when lowered. Cable catchers can be found at the top of the bottom stage, as well as at each additional stage to guide the cable when extending the tower.
 Device Power Runtime w/o Sun (Continuous Load)
15W 4 days
22.5W 3 days
30W 2 days
45W 2.5 days
60W 1 day
Network Video Recorder: The NDAA compliant NVR has 8 channels and can be used with compatible IP network cameras (up to 8MP resolutions). Installation only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes and 2TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 80Mbps incoming and 64Mbps outgoing at up to 30fps per channel. To maximize storage, the unit supports H.265 and H.264 video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes one ethernet port (RJ-45 interface). During recording, the unit handles the following data: remote configuration, remote viewing, event log, email notification, event notification and video analytics. Cameras hooked up to the NVR may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 52V DC power and is suitable for use in temperatures between 14°F - 131°F. This video recorder accepts USB mouse and keyboard inputs. USB mouse ships standard with the video recorder. USB keyboard sold separately. Inputs: (1) RCA audio Outputs: (1) RCA audio, (1) VGA, (1) HDMI, (1) USB 2.0, (1) USB 3.0
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistance and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via an 18" x 18", 3/8" thick mounting base-plate which has been drilled to accept six 1/2 inch anchor bolts. Equipment Mounting: A 36" wide and 1/8" thick mounting T head is attached to the upper section of the mast which provides a strong and stable platform for fixtures. The underside of the T-head is equipped with a pair of 5" x 5" mounting plates that each accept a PTZ pendant mount for a total of (2) PTZ pendant mounts. There is a hole in the bottom of the T-head that allows the operator to run camera wiring inside the T-head. *Please note: NO camera mounts are included. There are ONLY mounting provisions for customer provided camera mounts.* The LM family of telescoping Megatower™ a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 13 feet, the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°, regardless of the extended height of the mast. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. A total of four, 30" retractable outriggers with 1,000 lb support jacks and flat feet are available on this unit. During deployment, the outriggers create a wider footprint for the base of the trailer and aids leveling for stable operation. The outriggers also ensure stability, when exposed to high wind loads in order to prevent the tower from tipping over. This light tower weighs approximately 1300 lbs, can easily support and lift 150 lbs of fixtures and/or equipment. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 2000 lbs. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
