SPLT-1.2K-LM21-FM-6X200AH-4X750LTL-ISG.4KW-CPR Solar Light Mast | Quick Summary |
Light Mast Specs | 21.3` Solar Light Mast |
Tower Length: 21.3` | Aluminum Construction |
Materials: 6063 Aluminum Alloy, Steel Canopy | Fully Solar, No Fuel Needed |
Finish: Anodized Finish | (4) 1,000lb Outriggers |
Operation: Manual System | 40 Mph Wind Resistance |
Mast Type: Round | Removable Hitch Tongue |
Stages: 4 | (4) 300W Solar Panels |
4kW Genset Backup | |
Solar Panel/Battery/Genset Specs |  |
Panels: (4) 300 Watt panels |  |
Method of Deployment: Fixed Mount |  |
System Voltage: 24V DC |  |
Battery Bank: (6) 12V 200aH batteries |  |
Battery Capacity: 1,200aH Total / 600aH Usable |  |
Charge Time: 11 Hours | |
Runtime: 26 Hours | |
Expected Lifespan: 5-7 Years | |
Generator: 4Kw Diesel Genset | |
Genset Application: Instant Start, When Battery is Low Capacity | |
 |  |
Controller Specs | |
Unit Type: Morningstar PS-30 | |
Battery Voltage: 24V DC | |
Max. PV Open-Current/Voltage: 30A/60V | |
Protection: Low Voltage/High Voltage | |
Max. Battery Charging Current: 30A | |
 |  |
LED Light Specs | |
Unit Type: LED - (4) LED Fixtures | |
Dimensions: 49"-L x 12.46"-W x 3.54"-D | |
Voltage: 24V DC | |
Watts: 3,000W (750W per Lamp) | |
Lumens: 390,000 (97,500 lm per Lamp) | |
Efficiency: 130 lm/w | |
LED Life Expectancy: 50,000+ Hours | |
Color Temperature: 5,500K - 6,500K | |
Lighting Configuration: Flood | |
Operating Temp Range: -40°C to +80°C | |
Materials: Die Cast Aluminum Housing, PMMA Optics | |
 |  |
Trailer Specs | |
Type: Single Axle | |
Trailer Dimensions: 147" x 86.5" x 93.7" | |
Drawbar: Complies w/ US DOT Standards | |
Outriggers: (4) Manual Leveling Jacks | |
Tires/Rim Size: 185R/14C | |
Weight: +-600 lbs | |
Shipping: Common Freight | Toll Free: 1-800-369-6671 |
Shipping Dimensions: - | |
Shipping Weight: +-600 lbs | Fax: 1-903-498-3364 |
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail: |

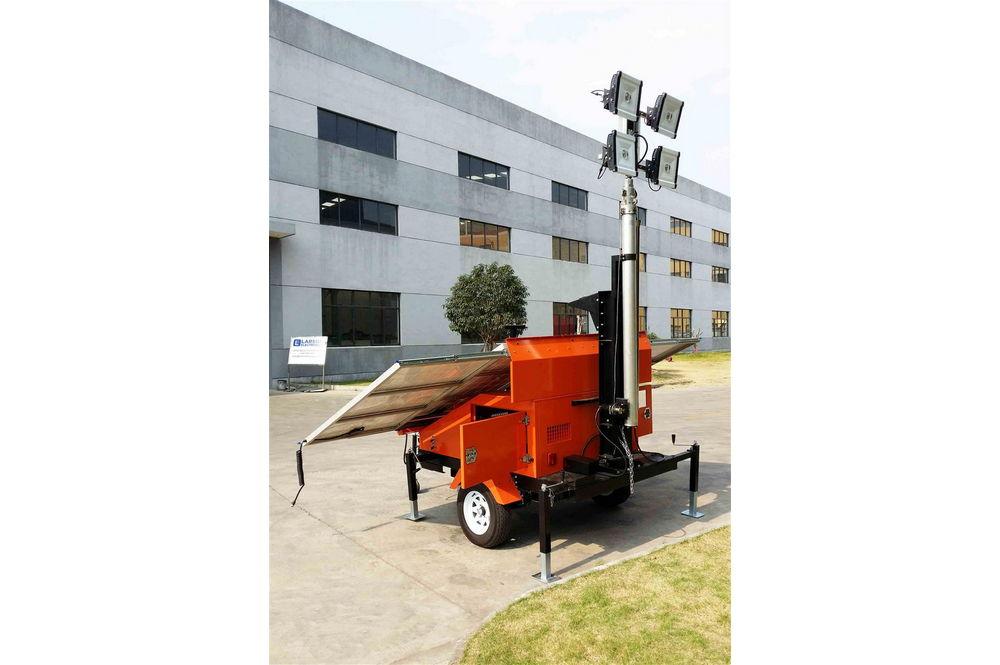

The Larson Electronics SPLT-1.2K-LM21-FM-6X200AH-4X750LTL-ISG.4KW-CPR Solar LED Light Tower offers wide-area illumination in outdoor locations from elevated positions up to 21.3`. This unit features four, 300-watt solar panels, four 750-watt LED fixtures for illumination, six 200aH gel batteries (600aH capacity) and a solar controller. The entire assembly is secured on a single-axle trailer. Constructed of aluminum alloy, the solar light mast provides a runtime of 26 hours per full charge and a 4kW diesel generator for backup. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This solar LED light tower is a portable, powerful lighting solution for outdoor locations. The unit is equipped with four 300-watt solar panels, four 750-watt LED fixtures, six 200aH gel batteries, 4kW diesel generator, Morningstar PS-30 controller and a sturdy junction box. All components are mounted on a single-axle trailer. The fixed-mount light mast extends up to 21.3 feet. LED Fixtures: The SPLT-1.2K-LM21-FM-6X200AH-4X750LTL-ISG.4KW-CPR features four, 750-watt LED fixtures for illumination. The LED units operate on 24V DC and provide 390,000 lumens of white light (97,500 lumens per lamp) with a color temperature rating of 5,500K - 6,500K. Constructed of die-cast aluminum, the LED fixtures are suitable for wide-area illumination in outdoor locations. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Light Mast: This telescoping four-stage aluminum light mast from Larson Electronics is designed to allow operators to quickly and safely deploy a reliable lighting system in locations where it must be elevated to heights up to 21.3` for effective coverage. The tower is constructed of round aluminum alloy tubing. The mast is extended to its full height using a manual lifting system. Junction boxes are mounted at the top of the first stage and at the very top of the mast for equipment setup, connection, and deployment. Solar Panels/Batteries/Genset: This unit is comprised of four 300-watt solar panels, with a 30-degree tilt for optimized sunlight exposure. The panels are wired to the solar charger control box which manages the charging system. A 24V DC Morningstar PS-30 controller, with a maximum PV open current/voltage protection of 30A/60V, manages power storage and allocation between the solar panels and batteries. The SPLT-1.2K-LM21-FM-6X200AH-4X750LTL-ISG.4KW-CPR features a total of six, 200aH gel deep cycle lead-acid batteries to store power. The power cells come with 600aH usable capacity and an expected lifespan range of 5-7 years. To ensure smooth operation, the power cells are supported by a 4kW diesel generator. The genset will start instantly, when battery levels reach low capacity. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly measures 147" x 86.5" x 93.7" and is secured on a single-axle trailer with 185R/14C tires/rims. The trailer tongue can be removed for long-term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with US DOT regulations. Applications: Security, monitoring, live events, concerts, law enforcement, military, commercial, industrial facilities, outdoor surveillance, outdoor illumination, remote locations and more. |
