1.8kW Portable Trailer Mounted Solar Tower - 30' Mast - (6) Panels, (56) LiFePO Batteries, BC, Inverter
1.8kW Portable Trailer Mounted Solar Tower - 30' Mast - (6) Panels, (56) LiFePO Batteries, BC, Inverter
SPLT-1.8K-30-2240AL-PTB-M1 Trailer Mounted Solar Mast | Quick Summary |
Mast Specs | 30` Solar Light Tower |
Tower Length: up to 30' | Steel Construction |
Stages: 5 | Powder Coated Finish |
Mast Head Length: 44" | Removable Mast Head |
Mast Head Base: Pan/Tilt | 125 mph Wind Resistance |
Materials: Steel | Manual or Optional Electric Operation |
Finish: Powder Coated - Gloss Blue | (6) 300 Watt Solar Panels |
Operation: (2) 1,000lbs Hand Winches, Electric Optional | Fully Solar, No Fuel Needed |
Mast Cable: - | Battery Charger |
 | Inverter |
Solar Specs | Â |
Panels: (6) 300W panels | Â |
Method of Deployment: Fixed Mount | Â |
System Voltage: 12 Volts | Â |
Solar Charge Controller: (2) 40A MPPT | Â |
Battery Bank: (56) 40aH Lithium Iron Phosphate Batteries (LiFePO) | Â |
Battery Capacity:Â 2,240aH Total / 2,240aH Usable | Â |
Battery Charger: 30A 240V w/ 6-30P or L6-30P Plug | Â |
Inverter: 750W 120/240V | Â |
System Runtime: Full Operation @ 500W Draw on 120V for 5 Days Without Sun | Â |
 | |
Trailer Specs | |
Materials: Steel | |
Trailer Dimensions: 16`L` x 6`W | |
Job Box: Included w/ Din Rail Mounting | |
Hitch: 2" Ball Coupler | |
Wiring: 7-Pin Flat | |
Axle: 3,500lb | |
Tongue: Removable | |
Outriggers: (4) Manual Crank | |
Wheels: (2) | |
Tires: - | |
 |  |
Transport Dimensions: - | |
Weight: +-1200 lbs | |
Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
Shipping Dimensions: 14`L x 10`W x 12`H | Intl:Â 1-214-616-6180 |
Shipping Weight: - | |
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |
Made in the USA

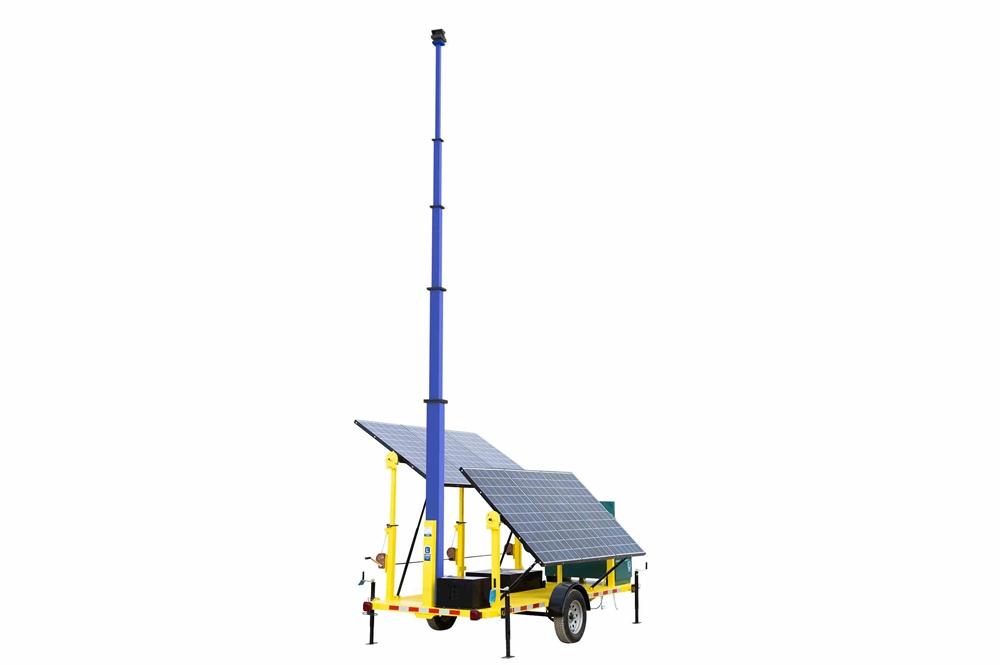

The Larson Electronics SPLT-1.8K-30-2240AL-PTB-M1 Portable Trailer Mounted Solar Tower provides a safe and effective way for operators to secure and use customer-provided equipment at a maximum height of 30'. This solar mast assembly features a manual crank tower with a removable mast head for storage when not in use. The unit features six 300-watt solar panels (fixed mount), a lithium-iron phosphate battery bank, battery charger, inverter and trailer mounted job box with din rail mounting components. The top of the five-stage mast features a pan/tilt base.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
The SPLT-1.8K-30-2240AL-PTB-M1 is a portable solar-powered system for outdoor and remote locations. This unit consists of a 30' manual crank mast, six 300-watt solar panels, LiFePO battery bank, battery charger, inverter, solar charge MPPT controllers, pan/tilt base at the top of the mast and job box with din rail mounting components. All components are mounted on a single-axle trailer. This system does not come with monitoring plans.
Operation:
(6) 300W solar panels w/ (2) solar MPPT charge controllers
(56) 40aH LiFePO batteries - 2,240aH total battery bank/2,240aH usable
30A 240V battery charger w/ 6-30p or L6-30p plug
750W inverter
All system components secured to a DOT-approved trailer
Trailer comes with (4) leveling jacks and vin#
LED Lights: The SPLT-1.8K-30-2240AL-PTB-M1 does not have LED lights. We can add LED outdoor lights for illumination during nighttime operations at an additional cost.
Outdoor Cameras: The SPLT-1.8K-30-2240AL-PTB-M1 does not come with outdoor cameras or network video recorders. We can add outdoor security cameras for monitoring remote sites at an additional cost.
PA System: This unit does not have a PA system. We can add a one-way or two-way system upon request and with additional costs.
Router/Wireless 4G Hotspot: This solar tower does not feature a professional-grade router. We can add a unit at an additional cost for remote operations requiring connectivity.
GPS Tracking: The system does not have GPS fleet tracking (we can add the feature at an additional cost). This feature enables operators to monitor the location of the solar-powered system easily. For models with GPS, cloud-based management tools enable access to the wireless network from compatible devices.
LED Strobe: The SPLT-1.8K-30-2240AL-PTB-M1 does not come with a security LED strobe light. We can add a blue, red or white LED strobe light at an additional cost (combination of colors is also possible).
|
