16' Solar Equipment Tower - 7.5' Trailer - 48V - (2) 300W Panels, (4) 40aH Batteries, Battery Charger - 40A CC/EMP Protection
16' Solar Equipment Tower - 7.5' Trailer - 48V - (2) 300W Panels, (4) 40aH Batteries, Battery Charger - 40A CC/EMP Protection
SPLT-.6K-LM16-48V-40AL-TLR7-LRG-M3 Trailer Mounted Solar Mast | Quick Summary |
Mast Specs | 10` to 16` Solar Light Tower |
Tower Length: Telescoping from 10' to 16' | Steel Construction |
Stages: 3 | Powder Coated Finish |
Mast Head Length: 44" | Removable Mast Head |
Materials: Steel | 125 mph Wind Resistance |
Finish: Powder Coated - Gloss Blue | Manual or Optional Electric Operation |
Operation: (2) 1,000lbs Hand Winches, Electric Optional | (2) 300 Watt Solar Panels |
Mast Cable: - | Fully Solar, No Fuel Needed |
 | 120V Battery Charger |
Solar Specs | EMP/Lightning Protection |
Panels: (2) 300W panels | Â |
Method of Deployment: Fixed Mount | Â |
System Voltage: 48 Volts | Â |
Solar Charge Controller: 40A MPPT | Â |
Battery Bank: (4) 40aH Lithium-ion Batteries - 48V |  |
Battery Capacity:Â 160aH Total / 160aH Usable | Â |
Battery Charger: 120V | Â |
Inverter: NA | Â |
System Runtime: - | Â |
System Protection: Grounding Rod @ Tower, EMP/Lightning Protection for Circuits | Â |
EMP/Lightning Protection Response Time: <600 Pico Seconds | Â |
EMP/Lightning Protection Modes: L1-L2; L1-N; L2-N; L-G; N-G | Â |
EMP/Lightning Protection Status Indicator: LEDs | Â |
 | |
Trailer Specs | |
Materials: Steel | |
Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75` total length | |
Hitch: 2" Ball Coupler | |
Wiring: 7-Pin Flat | |
Axle: 3,500lb | |
Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
Leveling Jacks: (4) 1,000 Manual Crank Leveling Jacks | |
Wheels: (2) 15" 5x4.5 Steel Rims | |
Tires: ST205/75/D15 H188 | |
 |  |
Transport Dimensions: 160.68"-L x 88"-W x 81.15"-H | |
Weight: +-1200 lbs | |
Shipping: Common Freight | Toll Free:Â 1-800-369-6671 |
Shipping Dimensions: 14`L x 10`W x 12`H | Intl:Â 1-214-616-6180 |
Shipping Weight: - | |
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |
Made in the USA

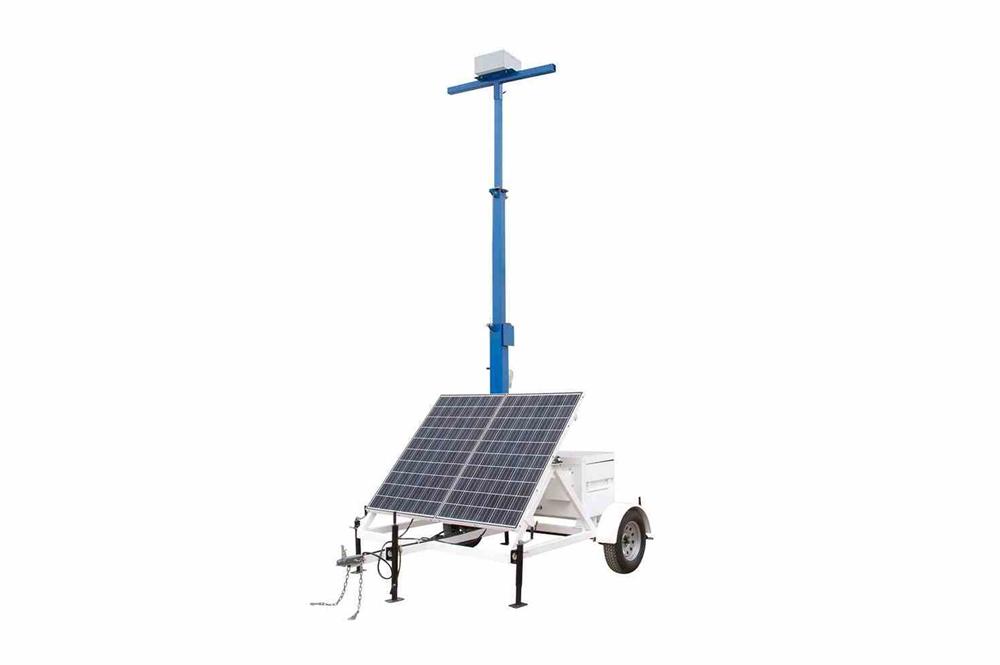

The Larson Electronics SPLT-.6K-LM16-48V-40AL-TLR7-LRG-M3 Solar Equipment Tower provides a safe and effective way for operators to secure and use customer-provided equipment from elevated positions between 10` to 16`. This solar mast assembly features a telescoping tower with a removable mast head for storage when not in use. The unit has two 300-watt solar panels (fixed mount), 120V battery charger, 160aH capacity lithium-ion battery bank with 48V output and lightning protection.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
The SPLT-.6K-LM16-48V-40AL-TLR7-LRG-M3 is a portable solar-powered system for outdoor and remote locations. This unit consists of a 10' to 16' telescoping mast, two 300-watt solar panels, lithium-ion battery bank wired in series for 48V output, battery charger and solar charge MPPT controller. All components are mounted on a single-axle trailer. This system does not come with monitoring plans.
Two-part lightning protection is available on the system: a grounding rod to earth and an EMP/lightning protection unit for circuitry. This unit is capable of handling lightning power surges with a response time of <600 pico seconds and offers the following modes of protection: L1-L2; L1-N; L2-N; L-G; N-G. Equipped with LED status indicator lights, the device accepts 10AWG wire size, as well as carries IP66 and NEMA 4 ratings for outdoor protection.
Operation:
(2) 300W solar panels w/ solar MPPT charge controller
(4) 40aH lithium-ion batteries wired in series for 48V output- 160aH total battery bank/160aH usable
120V battery charger
All system components secured to a DOT-approved trailer
Trailer comes with (4) leveling jacks and vin#
LED Lights: The SPLT-.6K-LM16-48V-40AL-TLR7-LRG-M3 does not have LED lights. We can add LED outdoor lights for illumination during nighttime operations at an additional cost.
Outdoor Cameras: The SPLT-.6K-LM16-48V-40AL-TLR7-LRG-M3 does not come with outdoor cameras or network video recorders. We can add outdoor security cameras for monitoring remote sites at an additional cost.
PA System: This unit does not have a PA system. We can add a one-way or two-way system upon request and with additional costs.
Router/Wireless 4G Hotspot: This solar tower does not feature a professional-grade router. We can add a unit at an additional cost for remote operations requiring connectivity.
GPS Tracking: The system does not have GPS fleet tracking (we can add the feature at an additional cost). This feature enables operators to monitor the location of the solar-powered system easily. For models with GPS, cloud-based management tools enable access to the wireless network from compatible devices.
LED Strobe: The SPLT-.6K-LM16-48V-40AL-TLR7-LRG-M3 does not come with a security LED strobe light. We can add a blue, red or white LED strobe light at an additional cost (combination of colors is also possible).
|
