20' Solar Security Tower - 7.5' Trailer - (2) 300W Panels - (4) 6MP Cameras, (4) LED Lights, BC - 4G Router/Wi-Fi

20' Solar Security Tower - 7.5' Trailer - (2) 300W Panels - (4) 6MP Cameras, (4) LED Lights, BC - 4G Router/Wi-Fi

$108,158.00 CAD
$108,158.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
SPLT-.6K-LM20-TLR7-PA-ACC-4X6MP.OZ-2TB-W4G-M1 Trailer Mounted Solar Security Mast Quick Summary
Mast Specs 12' to 20' Mast
Tower Length: 12' to 20' Steel Construction
Stages: 3 Powder Coated Finish
Mast Head Length: 44" Removable Mast Head
Materials: Steel (4) 1,000 lb Outriggers w/ Stabilizing Jacks
Finish: Powder Coated - Gloss Blue 65 MPH Constant Wind Speed Rating
Operation: (1) 2,500 lb Manual Crank Winch 85 MPH Gust Rating
Mast Cable: 3/16" Galvanized Aircraft Cable A-Frame for Mounted (2) 300 Watt Solar Panels
Cable Sheath: Sealtight Coiled Tubing Fully Solar, No Fuel Needed
Low Noise Operation
Solar Specs Wi-Fi and 4G/LTE Router
Panels: (2) 300 Watt Panels Easy Setup for Rapid Deployment
Method of Deployment: Fixed Mount 2TB NVR
System Voltage: 12 Volts Loud Speaker PA System for Voice Warnings
Solar Charge Controller: LCD Display - Charge/Real-time Status
Battery Bank: (12) 40aH Lithium Iron Phosphate
Battery Capacity: 480aH Total - 100% Usable
Battery Charger: 120V
Battery Enclosure Cooling: Fan
Battery Voltage Monitoring: Remote

Camera Specs
Unit Type: (4) Varifocal Security Cameras
Camera Dimensions: -
Camera Weight: -
Total Watts: -
Voltage: -
Mega Pixels: 6MP
Mounting: Tower
LED Light Specs
Lamp Qty: (4)
Lamp Type: CREE LED
Dimensions: W-9"   D-3.25"   H-6.5"
Weight: -
Total Watts: 240W
Single-lamp Watts: 60W
Total Lumens: 21,600 lms
Single-lamp Lumens: 5,400 lms
Luminous Efficacy: 90 lm/w
LED Life Expectancy: 50,000+ hours
Color Temp: 5600K
Color Rendering Index: 80
Beam Angle: 60° Vertical, 75° Horizontal
Lighting Configuration: Flood Beam
Amperage: -
Ambient Temp Range: -50°C to +70°
Housing Material: Cast Aluminum
Lens Material: Polycarbonate
Mounting: Tower
Wiring: -
Strobe Light Specs
Lamp Type: LED
Dimensions: 4.5"-High, 6.5" Diameter
Lamp Weight: 3 lbs
Wattage: 14.4
Lumens: -
Candela: -
Luminous Efficiency: -
Lighting Configuration: Strobing Flash
Color: Red and White
NVR Specs
Device Type: Network Video Recorder
Storage Capacity: 2 TB SATA Hard Drive
Channels: 8
Camera Resolution Support: Up to 8MP
Installation Type: Plug and Play
Incoming Bit Rate: 40Mbps
Outgoing Bit Rate: 80Mbps
FPS: 60fps Per Channel
Compression Format: H.265, H.264, H.264 OVC
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA
Export Format: MP4
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear)
Two-way Audio Input: 1-ch, RCA
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at
Alarm Input: 4x (Rear Panel), Camera Dependent
Alarm Output: 1x (Rear Panel), Camera Dependent
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart
Monitor: 14" HD Screen w/ Anti-glare Monitor
Mouse: Included
Power Requirements: 100 ~ 240 V AC
Housing Material: Aluminum
Operating Temp: 14°F ~ 131°F
Networking Cable: CAT5E
Remote Connectivity: Yes w/ Customer-provided 4G Service

PA System Specs
Loud Speaker PA: (1)
Remote Speak: Yes

Router/Antenna Specs
Router Type: 4G/LTE Rugged Router
Modem: 600 Mbps Minimum
Built-in Security: Yes
Monitoring: Uptime w/ Real-time Alerts
4G Plan/Service: Customer Provided
GPS: Included
External Antenna: Not Included
Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5'L x 7'W Trailer Bed- 10.75' Total Length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500 lb
Suspension: 3,500 lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crank Leveling Jacks
Lights: DOT Listed - All Running Lights
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lb
Shipping: Common Freight
Shipping Dimensions: 8'-L x 8'-W x 12'-H
Shipping Weight: +-600 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '

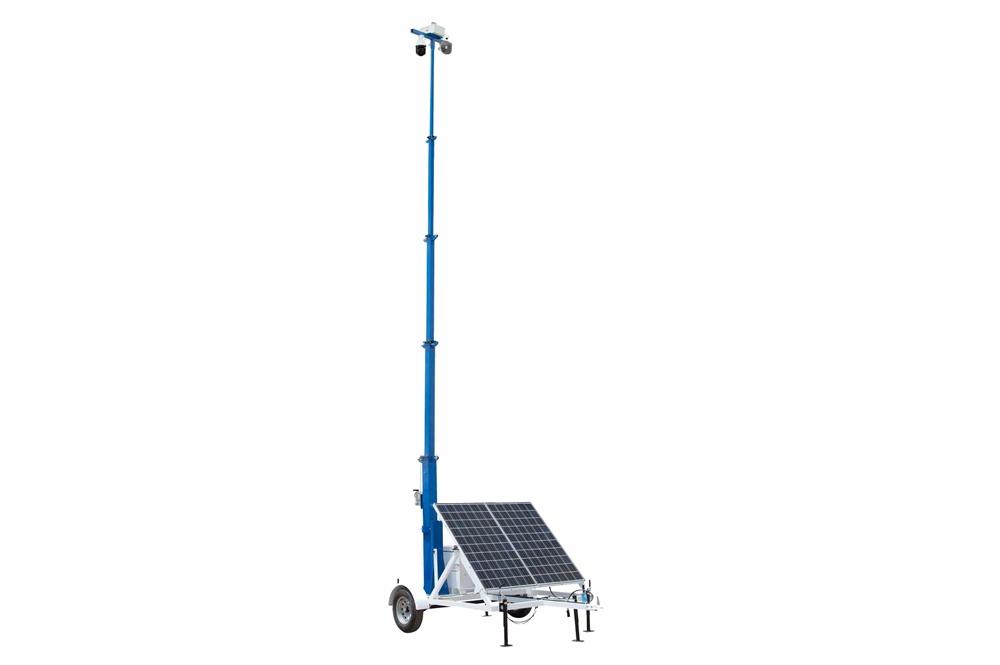

The SPLT-.6K-LM20-TLR7-PA-ACC-4X6MP.OZ-2TB-W4G-M1 from Larson Electronics is a Solar Security Tower that provides a safe and effective way for operators to quickly deploy equipment to elevations up to 20 feet. This solar security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows 360° rotation, and a removable mast head for storage when not in use. The low-noise unit features four outdoor cameras, four LED lights, one red/white strobe light, one loud speaker PA system, router/wireless 4G hotspot access (requires customer-provided 4G plan), two 300-watt solar panels and a 160aH capacity battery bank. A 2TB NVR can be found at the base of the mast. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The SPLT-.6K-LM20-TLR7-PA-ACC-4X6MP.OZ-2TB-W4G-M1 is a portable solar-powered security system for outdoor and remote locations. This unit consists of a 20' telescoping mast, two 300-watt solar panels, four cameras, NVR, red and white strobe light, wireless router, GPS tracking, battery bank, battery charger and solar charge MPPT controller. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this portable solar tower from location to location. Operation: €¢ (2) 300W solar panels w/ solar MPPT charge controller €¢ (12) 40aH batteries - 480aH total battery bank/480aH usable €¢ (4) 6MP bullet cameras, varifocal €¢ 2TB NVR €¢ 4G LTE router - wireless access point or cell network €¢ (1) Red and white strobe light €¢ (4) LED Lights €¢ (1) Loud Speaker PA €¢ 120V battery charger €¢ All system components secured to a DOT-approved trailer €¢ Trailer comes with (4) leveling jacks and vin# Bullet Cameras: Four 6MP bullet cameras provide operators with full-HD high resolution images. A varifocal lens automatically adjusts focus, providing operators with precise zoom levels. NVR: The solar tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 2TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 Ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR may use power directly via PoE (802.3af / 802.3at) during operation. NVR Inputs: (1) RCA, 4 Sensor Inputs NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear) LED Lights: There are four LED lights on the system for outdoor illumination. Each light assembly consists of six LEDs paired with high purity specular optics to produce a wide light distribution overpowering that of a 500 watt quartz flood lights. This light is constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center board is concentrated to go straight out while the boards on the side are 45° offset. The LED lamps consist of six LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. A 1/2" waterproof connector provides a secure and sealed power connection point and rounds out this unit`s weather resistant construction. An optional glare shield it shipped with this light. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. PA System: This unit features a loud speaker PA system. Operators can speak into the speaker from remote locations. Router/Wireless 4G Hotspot: Operators can connect to wireless access points or cellular networks via a professional-grade router. The unit supports WAN, LAN and Wi-Fi interfaces with 100Mbps throughput capabilities. Recommended for 1-60 users, this device works with all major carriers (CDMA/GSM/LTE). The access point can be disabled for security purposes upon request. Customers must provide a 6dbi antenna for the system (not included). GPS Tracking: The router is equipped with built-in GPS fleet tracking. This feature enables operators to monitor the location of the solar-powered system easily. Cloud-based management tools enable access to the wireless network from compatible devices. LED Strobe: The system has a red and white security LED strobe light. We can add a blue LED strobe light at an additional cost (combination of colors is also possible).
Solar Security Tower: This telescoping three stage steel mast from Larson Electronics is designed to allow operators to quickly and safely deploy equipment in locations where it must be elevated to heights up to 20' for effective coverage. This mast can be extended to 20' above the trailer floor for maximum area coverage, and collapsed to 12' for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12 feet in length and 4 inches in diameter, a middle section 8 feet in length and 3.5 inches in diameter, and an upper section 6 feet and 3 inches in diameter. Each section has 2` of overlap. The mast is extended to its full height using a manual cranks winch with 3/16" galvanized steel cable. Junction boxes are mounted at the top of the first stage and at the very top of the mast for equipment setup, connection, and deployment. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for equipment. A half-moon shaped mounting plate on the top of the mast head provides a secure mounting platform for the NEMA 3R 12" x 12" x 6" junction box, where operators can mount cameras, indicator lights, and route electrical cabling. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistance and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lb hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2' out from the side of the trailer for added stability. The unit features the following wind ratings: 65 mph constant wind and 85 mph gusts. Custom builds can be provided for higher wind speed resistance when fully raised.
Solar Panel Assembly: This unit is comprised of two 300-watt solar panels, generating a total maximum output of 0.60 KW. The panel is mounted to a stationary assembly. The panel is wired to the solar charger control box which manages the charging system. The solar panel is mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. An included solar charge controller features an LCD display, which provides information surrounding charge status and real-time (current) status. Batteries: The solar unit contains a battery bank that consists of twelve, 40aH lithium iron phosphate batteries for a 480aH battery bank (480aH usable). Compared to conventional SLA batteries, these units are 100% usable and lighter in weight. Over time, this results in lower operating and maintenance costs. An included battery level indicator provides real-time power monitoring for the battery bank. Operators can monitor the battery voltage remotely. The battery enclosure is fan cooled to reduce heat. Battery Charger: This system comes with a 120V battery charger, which can be plugged into a local wall outlet during use, such as prior to deployment or when local power is available at the remote site. We can add a 220V or 240V battery charger to power additional equipment from the solar tower at an additional cost (portable battery chargers are also available). Inverter: This unit does not come with an inverter. We can add an inverter to power additional equipment from the solar tower at an additional cost. Backup Generator: A backup generator is not available on the system. We can add one at an additional cost. For systems with battery chargers and backup generators, the battery charger is connected to the genset by default. It is possible to unplug the battery charger from the generator for local charging. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5' by 7', single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with a 3,500 lb axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. The trailer is equipped with complete DOT-listed running lights.
