600W Solar Light Tower - 30' Light Tower - 7.5' Trailer - (4) LED Lamps, (2) Panels, (14) Batteries - 12 Hours/Day
600W Solar Light Tower - 30' Light Tower - 7.5' Trailer - (4) LED Lamps, (2) Panels, (14) Batteries - 12 Hours/Day
Prix habituel
$77,310.00 CAD
Prix habituel
Prix promotionnel
$77,310.00 CAD
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
| SPLT-.6K-LM30-4XWP600E-ATDS-BC-TLR7-120V-M1 Trailer Mounted Light Tower | Quick Summary |
| Light Mast Specs | 8.75` to 30` Light Mast |
| Tower Length: 8.75` to 30` | Steel Construction |
| Mast Head Length: 44" | Powder Coated Finish |
| Materials: Steel | Removable Mast Head |
| Finish: Powder Coated - Gloss Blue | (4) 1,000lb Outriggers |
| Operation: (1) 3,500 lbs Manual Winch, Electric Optional | 125 mph Wind Resistance |
| Cable: 3/16" Galvanized Aircraft Cable | Manual or Optional Electric Operation |
| Forklift Pockets: On Mast for High Point Access | A-Frame for mounted (2) 300W Solar Panels |
|  | Fully Solar, No Fuel Needed |
| Solar Specs | Waterproof/Vapor Proof Lamps |
| Panes: (2) 300W Panels | 50,000+ Hour LED Life |
| Method of Deployment: Fixed Mount | Lamps ETL Approved for Wet Locations |
| System Voltage: 24 Volts | IP68 Waterproof Lamps |
| Battery Type: 24 Volt DC Deepâ€Âcycle Lithium (lifepo4) Battery Banks Comprised of lifepo4 (Sealed, No Maintenance) Batteries | DOT Compliant Trailer and Lighting |
| Battery Bank: (14) 80aH 12V Batteries, Wired in Series | Buy American Act (BAA Compliant) |
| Battery Capacity: 1,120aH Total/560aH Usable Battery Bank in 24V |  |
| System Runtime: 12 Hours/Day (1.5 Days of Automation w/o Solar or AC Charging) |  |
| Battery Charger: 25aH Battery Bank Rapid Charger for Backup via Generator or 20A 120V Power Sources |  |
| Cord: 10' 12/3 Cord w/ 20A 5-20P Cord Cap [125V] |  |
|  |  |
| LED Lamp Specs | |
| Lamp Type: CREE LED | |
| Total Watts: 240W | |
| Single-lamp Watts: 60W | |
| Total Lumens: 21,600 lms | |
| Single-lamp Lumens: 5,400 lms | |
| Luminous Efficacy: 90 lm/w | |
| LED Life Expectancy: 50,000+ hours | |
| Color Temp: 5600K, 4000K, or 3000K | |
| Color Rendering Index: 80 | |
| Beam Angle: 60° Vertical, 75° Horizontal | |
| Lighting Configuration: Flood Beam | |
| Timer Function: Automated, Timed Interval or Manual Lighting Start/Stop Times (Works Independent from Solar Panels) | |
| Motion Sensor: Passive Infrared Forward Looking Motion Detector (Controls Light Dimming and Load Management - Switches Between 50% and 100%) | |
| Dimming Setting: (2) LED Lights for 50% Power or (4) LED Lights for 100% Power | |
| Ambient Temp Range: -25°C to +60° | |
| Lamp Housing Material: Cast Aluminum | |
| Lamp Lens Material: Polycarbonate | |
|  |  |
| Towable Trailer Specs | |
| Materials: Steel | |
| Trailer Dimensions: 7.5`L` x 7`W Trailer bed - 10.75` Total Length | |
| Hitch: 2" Ball Coupler | |
| Forklift Pockets: On Trailer Base for Low Point Access | |
| Wiring: 7-Pin Flat | |
| Axle: 3,500 lb | |
| Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
| Stabilizers: Tongue Wheel Jack, 4-corner Jack Stabilizers | |
| Wheels: (2) 15" 5x4.5 Steel Rims | |
| Tires: ST205/75/D15 H188 | |
| Weight: +-600 lbs | |
| Shipping: Common Freight | Toll Free: 1-800-369-6671 |
| Shipping Dimensions: 8`-L x 8`-W x 12`-H | |
| Shipping Weight: +-600 lbs | Fax: 1-903-498-3364 |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail: |

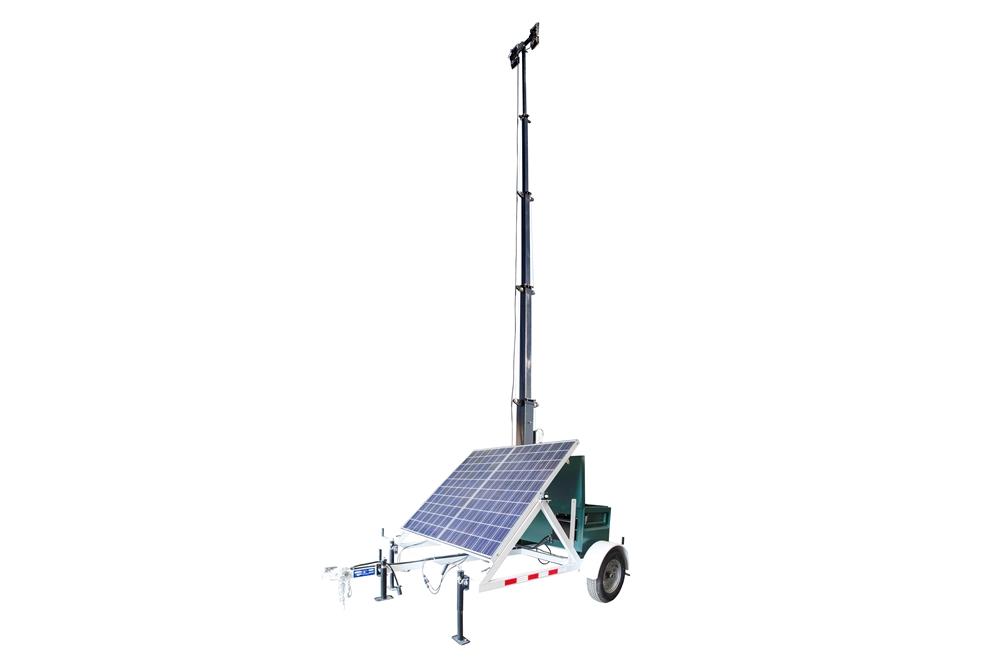

| Made in the USA The Larson Electronics SPLT-.6K-LM30-4XWP600E-ATDS-BC-TLR7-120V-M1 Solar-powered LED Light Tower provides a safe and effective way for operators to quickly deploy 240 watts of intense LED illumination to elevations up to thirty feet. This solar light plant features a telescoping light tower, a rotating boom that allows for 360° of rotation, and a removable mast head for storing the four LED light fixtures when not in use. This unit has two 300-watt solar panels and a 560aH usable battery bank in 24V. The entire assembly is mounted onto a 7.5` single axle trailer with DOT approved lighting and forklift pockets for low point access, allowing operators to transport this solar light tower from location to location. The SPLT-.6K-LM30-4XWP600E-ATDS-BC-TLR7-120V-M1 includes a 120V battery charger that allows the unit to be charged when local power is available. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This BAA compliant solar light tower includes two 300-watt solar panels, solar charging system, battery bank and manual crank up mast mounted on trailer with outriggers. This 0.6KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This fully independent off-grid lighting system delivers 24 volts for lighting mounted atop the 30` telescoping light mast. Fully assembled for immediate use, the system provides 12 hours/day operation or 1.5 days of automation without solar or AC charging. Light Mast: This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy four LED outdoor lights in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` for maximum area coverage and collapsed to 8.75` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 3,000 lbs hand winch with 3/16" galvanized steel cable. Forklift pockets on the mast cater to high point access. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. | ||||||||||||||||||||||
|
||||||||||||||||||||||
LED Light Fixtures: This solar light plant is equipped with four of Larson Electronics` LEDWP-600E high output LED light fixtures. The LEDWP-600E consists of six 10 watt LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. Mounting hardware for the LEDWP-600E consists of a stainless steel coated bracket and stainless steel screws to provide secure mounting and resistance to rust and corrosion. The mounting assembly provides for 360/180 degrees of rotation and tilt to allow the user to position the unit as desired once mounted.
LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Lamp Control: Each lamp can be powered on individually, allowing operators to power one lamp or all four lamps at a single time to fit the required illumination requirements (two lamps for 50% illumination or all four lamps for 100% illumination). An equipped timer enables automated timed interval or manual lighting start/stop functions (works independently from solar panels). This system includes a passive infrared forward looking motion detector to control light dimming and load management, which switches between 50% and 100%.
|
||||||||||||||||||||||
