SPLT-.6K-LM30-EW-TLR-ISDG-4X100-1XPTZ-4XFE-W4G-M2 Trailer Mounted Solar Security Mast | Quick Summary |
Mast Specs | National Defense Authorization Act (NDAA) Compliant |
Tower Length: Telescoping to 30'' | 30` Solar Light Tower |
Stages: 5 | Steel Construction |
Mast Head Length: 44" | Powder Coated Finish |
Materials: Steel | Removable Mast Head |
Finish: Powder Coated - Gloss Blue | 125 mph Wind Resistance |
Operation: Electric Winch | Electric Winch Operation |
Mast Cable: 3/16" Galvanized Aircraft Cable | (2) 300 Watt Solar Panels |
 | Fully Solar, No Fuel Needed |
Solar Specs | 120V Battery Charger |
Panels: (2) 300 Watt panels | Foldable Tongue |
Method of Deployment: Fixed Mount | 10 TB NVR |
System Voltage: 12 Volts | GPS Tracking |
Solar Charge Controller: 40A MPPT | Blue LED Strobe Light |
Battery Bank: (15) 40aH Lithium-ion Batteries | 600W Inverter |
Battery Capacity: 600aH Total / 600aH Usable | 4kW Backup Diesel Generator |
Battery Charger: 120V - Connected to Backup Genset | (4) LED Fixtures |
Inverter: 600W [120V] | (1) PTZ Camera |
System Runtime: - | (4) Fisheye Cameras |
Siren | |
Backup Generator Specs | Collapsed Mast Clears Standard Bridges |
Fuel Type: Diesel | Health Monitoring System |
Total Watts: 4,000W |  |
Fuel Tank Capacity: 30 Gallons |  |
Autostart: When Battery Bank Reaches Below 30% Capacity |  |
Generator Status Updates: Automatic Notification via SMS or Email |  |
 | |
LED Strobe Light Specs |  |
Lamp Type: LED |  |
Voltage: - |  |
Watts: - |  |
LED Expected Lifespan: 50,000+ Hours |  |
LED Color: Blue |  |
Light Pattern: Strobe |  |
Sensor Types: Motion and Day/Night |  |
Amps: - |  |
Materials: - |  |
Mount: Mast |  |
 |  |
Siren Specs |  |
Unit Type: Siren |  |
Sensor Type: Motion |  |
Mount: Mast |  |
 | |
LED Fixture Specs |  |
Lamp Qty: (4) |  |
Lamp Technology: LED |  |
Voltage: - |  |
Total Watts: 400W |  |
Single-lamp Watts: 100W |  |
Lumens: - |  |
LED Lifespan Expectancy: 50,000+ Hours |  |
Color Temp: - |  |
Sensor Types: Motion and Day/Night |  |
Timer: Included |  |
Materials: - |  |
Mount: Mast |  |
 | |
PTZ Camera Specs | |
Camera Type: PTZ Outdoor Camera | |
Camera Qty: (1) | |
Single-camera Watts: 25.5 (Max) | |
Voltage: - | |
Image Sensor: CMOS | |
Connectors: 1.0Vp-p, 75 Ohm, BNC | |
Resolution: 720p and 1080p | |
Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR | |
Electronic Shutter: 1 ~ 1/10,000s | |
Lens: 4.7-94mm Varifocal Lens | |
Angle of View: 58.3° (Wide) ~ 3.2° (Tele) | |
Rotation: 360° | |
Zoom: 12x Digital, 32x Optical | |
Day/Night: ICR | |
IR Distance: 492` (850 nm) | |
Video Framerate: 1080p @ 30fps | |
Video Offload: MP4 | |
Video Output: (1) BNC | |
Language: English | |
Ambient Temperature Range: -22°F to 149°F | |
Housing Materials: Aluminum | |
Lens Material: Polycarbonate | |
Mount: Mast | |
 | |
Fisheye Camera Specs | |
Camera Type: Fisheye Cameras | |
Camera Qty: (4) | |
Total Watts: - | |
Voltage: - | |
Megapixels: 5MP | |
Position: Downwards | |
Coverage: 360° (Trailer and Surrounding Area of Trailer) | |
Materials: - | |
Mount: Mast | |
Network Video Recorder Specs | |
Storage Capacity: 10 TB SATA Hard Drive | |
Channels: 8 | |
Camera Resolution Support: Up to 8 MP | |
Installation Type: Plug and Play | |
Incoming/Outgoing Bit Rate: : 40 Mbps/80 Mbps | |
Frame Rate (fps): 60 fps per Channel | |
Recording Modes: Continuous, Schedule, Event, Motion Detection and VCA | |
Export Format: MP4 | |
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear) | |
Two-way Audio Input: 1-ch, RCA | |
PoE: = 120W, Supported Standards- 802.3af and 802.3at | |
Alarm Input: 4x (Rear Panel), Camera Dependent | |
Alarm Output: 1x (Rear Panel), Camera Dependent | |
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart | |
Operating System: Linux Custom Software | |
Materials: Aluminum | |
 | |
Router Specs | |
Wireless Router Type: Pepwave MAX BR1 MK2 Router w/ CAT6 LTE Advanced Modem (Wireless Access Network and Cell Network) | |
WAN Interface: (1) GE, (1) Embedded LTE-A Modem | |
LAN Interface: (1) GE | |
Wi-Fi Interface: 802.11ac/a/b/g/n 2x2 MIMO Simultaneous Dual-Band, Wi-Fi WAN & AP | |
Router Throughput: 100Mbps | |
4G Bands: FDD LTE- B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 | |
3G Bands: WCDMA/HSPA+/DC-HSPA+- B1, B2, B3, B4, B5, B8 | |
Recommended Users: 1-60 | |
GPS Tracking: Built-in | |
SIM Slots: (2) | |
Cellular and GPS Antenna Connector: (2) SMA Antenna Connectors, (1) SMA GPS Antenna Connector, (2) Wi-Fi Connector | |
Power Input: DC Jack/Terminal Block: 10V – 30V DC | |
Power Consumption: 16W (Max) | |
Antenna: 6dbi (Not Included) | |
 | |
System Devices Specs | |
Monitor Type: 12" | |
Mouse Type: USB | |
Keyboard Type: USB | |
Pull-out Tray Type: Vibration | |
 | |
Trailer Specs | |
Materials: Steel | |
Trailer Dimensions: 10`L x 6`W (Trailer Bed) - 14`L (Tow Length) | |
Trailer Footprint: 14.65`L x 12.91`W | |
Wiring: 7-Pin Flat | |
Axle: 3,500lb | |
Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
Leveling Jacks: (4) 1,000 Manual Crack Leveling Jacks | |
Wheels: (2) 15" 5x4.5 Steel Rims | |
Tires: ST205/75/D15 H188 | |
Hitch: 2" Ball Coupler |  |
Transport Dimensions: 160.68"-L x 88"-W x 81.15"-H | |
Weight: +-1500 lbs | |
Shipping: Common Freight | Toll Free: 1-800-369-6671 |
Shipping Dimensions: 14`L x 10`W x 12`H | Intl: 1-214-616-6180 |
Shipping Weight: - | |
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements |
Made in the USA

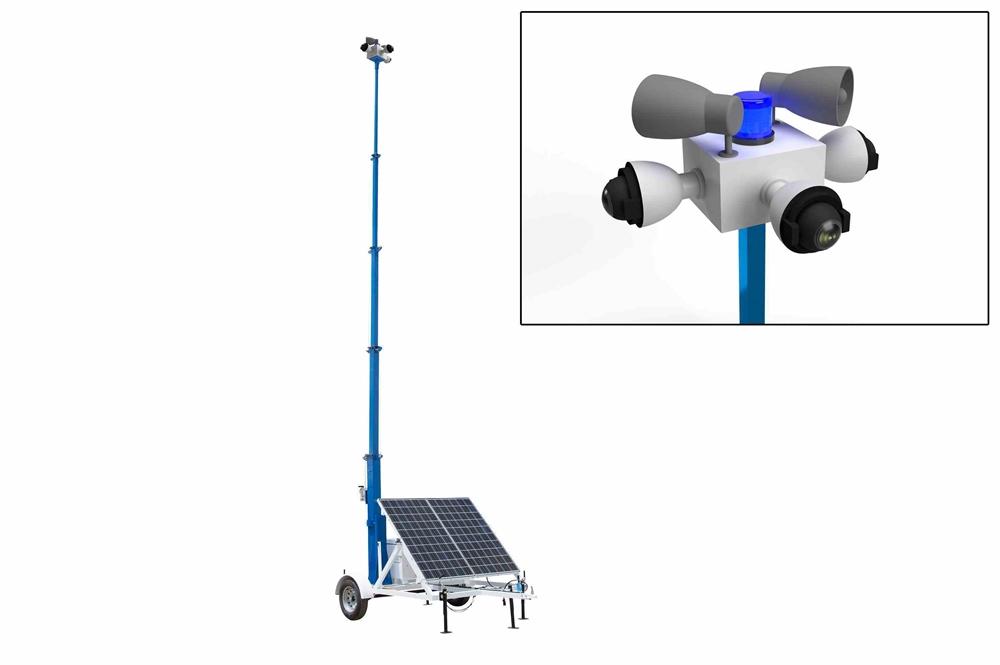

The Larson Electronics SPLT-.6K-LM30-EW-TLR-ISDG-4X100-1XPTZ-4XFE-W4G-M2 Portable Security LED Tower provides a safe and effective way for operators to monitor locations from elevated positions up to 30`. This solar security assembly features a telescoping tower with a removable mast head for storage when not in use. Five outdoor security cameras (one PTZ camera and four fisheye cameras - all NDAA compliant) can be used to record images, supported by a 10TB NVR. Equipped with a health monitoring system and GPS tracking, an included router facilitates wireless access point and cell network connections (6dbi antenna not included). This unit features two 300-watt solar panels (fixed mount), four LED fixtures, 600aH capacity lithium-ion battery bank (same capacity at 1200aH AGM), 4kW backup diesel generator, 120V battery charger and 600-watt inverter.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
The SPLT-.6K-LM30-EW-TLR-ISDG-4X100-1XPTZ-4XFE-W4G-M2 is a complete, portable solar-powered security LED system for outdoor and remote locations. This unit consists of a 30' telescoping mast with electric winch, two 300-watt solar panels, four LED fixtures, one PTZ camera, four fisheye cameras, siren, wireless router with two SIM card slots, GPS tracking, lithium-ion battery bank, backup diesel generator, battery charger, inverter and solar charge MPPT controller. All components are mounted on a single-axle trailer. This system features a health monitoring system, which closely checks and monitors battery voltage, battery charge, solar panel voltage and more (may require a subscription).
All cameras on this system comply with the 2019 National Defense Authorization Act (NDAA). The regulation bans federal governments, their contractors and businesses with national security interests from buying and using surveillance equipment made by specific major China-based manufacturers, including Hikvision, Dahua and their OEMs. Security products sold by Honeywell, Bosch, Panasonic, ADT, Flir and many more are affected by the ban. NDAA compliance also includes a ban on ZTE, Huawei and Hytera telecommunication equipment.
