20' Solar Security Tower - Manual Crank Mast, Job Box - Skid Mounting Platform

LARSON ELECTRONICSSKU: PL3-SPLT-SKM-0.75K-LM20-M1
filler

Prix:
Prix réduit$22,896.00

Description

Specifications / Additional Information
SPLT-SKM-0.75K-LM20-M1 Skid Mount Solar Mast Assembly Quick Summary
Tower Length: 12' to 20' 12' to 20' Mast
Stages: 3 Steel Construction
Mast Head Length: 44" Powder Coated Finish
Operation: Manual Crank Winch 65 MPH Constant Wind Speed Rating
Mast Cable: 3/16" Galvanized Aircraft Cable 85 MPH Gust Rating
Mounting Accommodation for Solar Panels: A-frame and Swivel Mount for (2) Customer-provided Solar Panels **Customer-provided Devices and Electronics Not Included**
Mounting Accommodation @ Mast Head: Customer-provided Cameras and Wireless Bridge
Mounting Accommodation for Electronics: Job Box w/ Fan
Materials: Steel
Finish: Powder Coated - Gloss Blue
Assembly Mount: Skid Platform w/ Skid Pockets and 4-corner D-rings Special Orders - Requirements
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8'-L x 8'-W x 12'-H Intl: 1-214-616-6180
Shipping Weight: +-600 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '

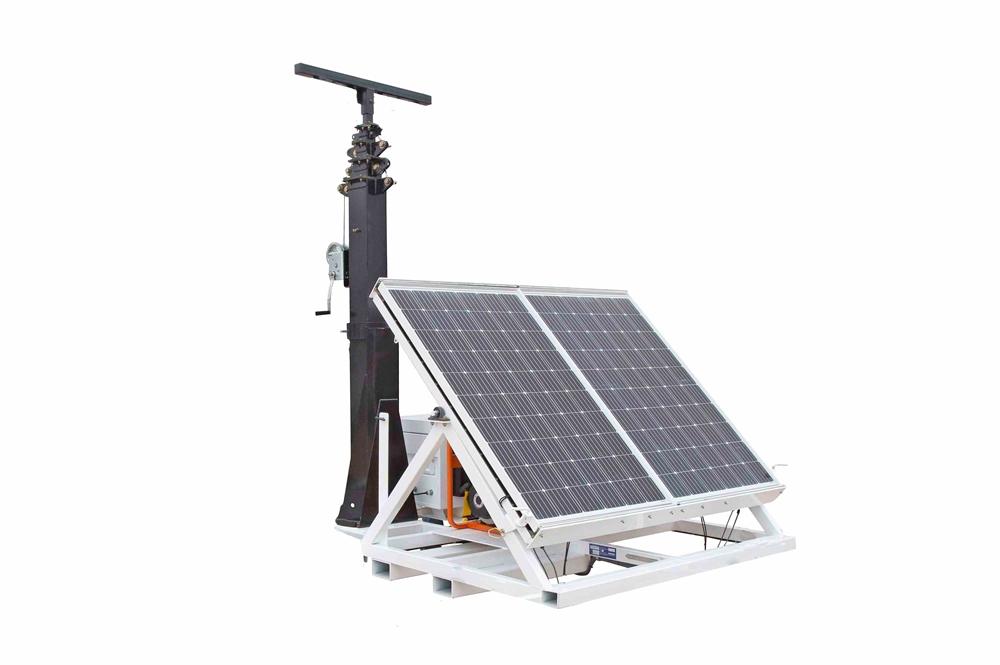

The SPLT-SKM-0.75K-LM20-M1 from Larson Electronics is a Solar Equipment Tower that provides a safe and effective way for operators to quickly deploy customer-provided equipment to elevations up to 20 feet. Secured on a skid platform with skid pockets, this solar plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows for 360° rotation, a removable mast head, A-frame and swivel mount for customer-provided solar panels, manual crank winch and job box with fan. Customers must provide supporting devices to complete the system. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This skid mounted solar mast enables customers to setup their equipment at remote locations. System electronics that are required for a fully working solar-powered tower system are not included and must be provided by the customer. This assembly includes a 12'-20' mast powered by a manual crank winch, job box with fan for mounting customer-provided devices, as well as an A-frame and swivel mount for securing up to two, 380-watt customer-provided solar panels. Mast: This telescoping three stage steel mast from Larson Electronics is designed to allow operators to quickly and safely deploy a variety of equipment in locations where it must be elevated to heights up to 20' for effective coverage. This mast can be extended to 20' above the skid floor for maximum area coverage, and collapsed to 12' for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12 feet in length and 4 inches in diameter, a middle section 8 feet in length and 3.5 inches in diameter, and an upper section 6 feet and 3 inches in diameter. Each section has 2` of overlap. The mast is extended to its full height using an included manual crank winch. Mounting accommodations for customer-provided cameras and wireless bridge are available at the top of the mast. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistance and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. The unit features the following wind ratings: 65 mph constant wind and 85 mph gusts. Custom builds can be provided for higher wind speed resistance when fully raised. Skid Mount: All assembly components are secured on a heavy-duty skid-mount platform with skid pockets. This platform contains 4-corner D-rings for picking.
