120W General Area LED Winchpod Light Tower - Adjustable 11' to 26' - 10,800 Lumens - 20' 16/3 SOOW

LARSON ELECTRONICSSKU: PL3-WAL-QP26-2XWP60E-20
filler

Prix:
Prix réduit$10,018.00

Description

Specifications / Additional Information
WAL-QP26-2XWP60E-20 Adjustable LED Winchpod Light Tower Ratings/Features:
Type: LED 11` to 26` Adjustable Tower
Light Head Dimensions: 11.69" L x 7.54" H x 4.94" D Manual Operation
Tower Dimensions: Adjustable 11` to 26` Tower 10,800 Lumen Production
Weight: 50` 16/3 SOOW Cable w/ General Area Cord Cap
Voltage: 120-277V AC, 50/60Hz Powder Coated Tower for Corrosion Resistance
Total Watts: 120W (60W per lamp) 4` Winchpod Support Legs
Total Lumens: 10,800 (5400 lumens per lamp) Solid Rubber Tires
Lighting Configuration: Flood Made in the USA
LED Lamp Life Expectancy: 50,000+ Hours
Color Rendering Index: 80
Color Temperature: 6000K - Cool White
Tower Materials: Steel
Tower Finish: Powder Coated - Glossy Blue
Wiring: 20` 16/3 SOOW w/ General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist. UK BS1363, Intl. Schuko, Pigtail
' Product Overview '

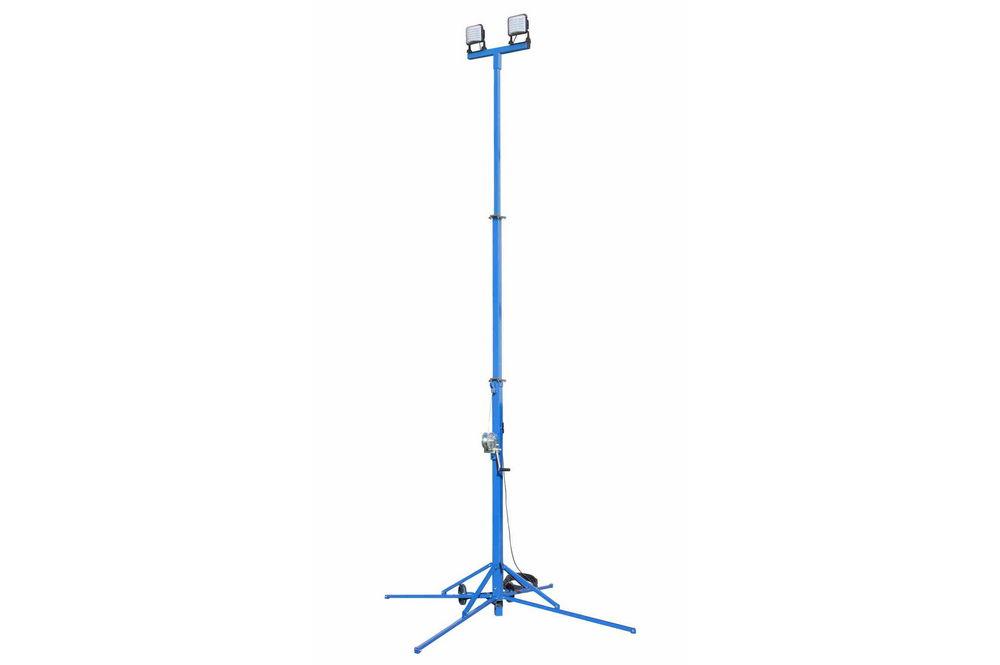

Made in Texas The WAL-QP26-2XWP60E-20 from Larson Electronics is a Winchpod LED Light Tower that offers operators the ability to raise the LED light heads to a maximum height of 26 feet using the three stage quadpod and manual hand crank winch. This portable light tower can be collapsed to 11 feet when a lower height is preferred or for operation during strong winds. The two LED light heads produce a combined 10,800 lumens of high-intensity LED light for bright illumination of the desired area. Light Features: The LED light heads on this quadpod provide 10,800 lumens of light and are an energy efficient alternative to 500 Watt quartz halogen lamps. Each flood light consists of 45 LEDs paired with purity specular optics to produce a wide light distribution. Each lamp is constructed of three angeled boards; the center board shines forward and the side boards have a 45° offset, shining to the side. The housing is waterproof powder coated aluminum and contains integral cooling fins for heat dissipation and LED longevity. The LEDs are protected by a polycarbonate lens sealed to the housing with a waterproof seal. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Mounting: This portable quadpod light tower is comprised of a removable LED light assembly fitted with two LED lamps mounted atop a four leg winch quadpod fabricated from heavy duty steel. This adjustable and collapsible quadpod can be extended to twenty-six feet and collapsed to eleven feet. Each leg is four feet in length for added support. The unit is extended and lowered using an included hand crank cable winch equipped with a brake for fast and safe deployment. The first stage is 9.42` in length and built from 4" x 4" square steel tubing, the second stage is 9.71` in length and built from 3" x 3" square steel tubing with the top stage measuring 10.13` in length and built from 2" x 2" square steel tubing. Included solid wheels allow the operator to tilt the unit back and simply roll the entire assembly to a new location when fully deployed. The light fixture assembly can be removed by releasing the hand knob and sliding the lights and mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamps can be easily adjusted up, down or from side to side independently of each other and locked into position for maximum coverage of the work area.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This general use winchpod LED light fixture is equipped with 20 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
