PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

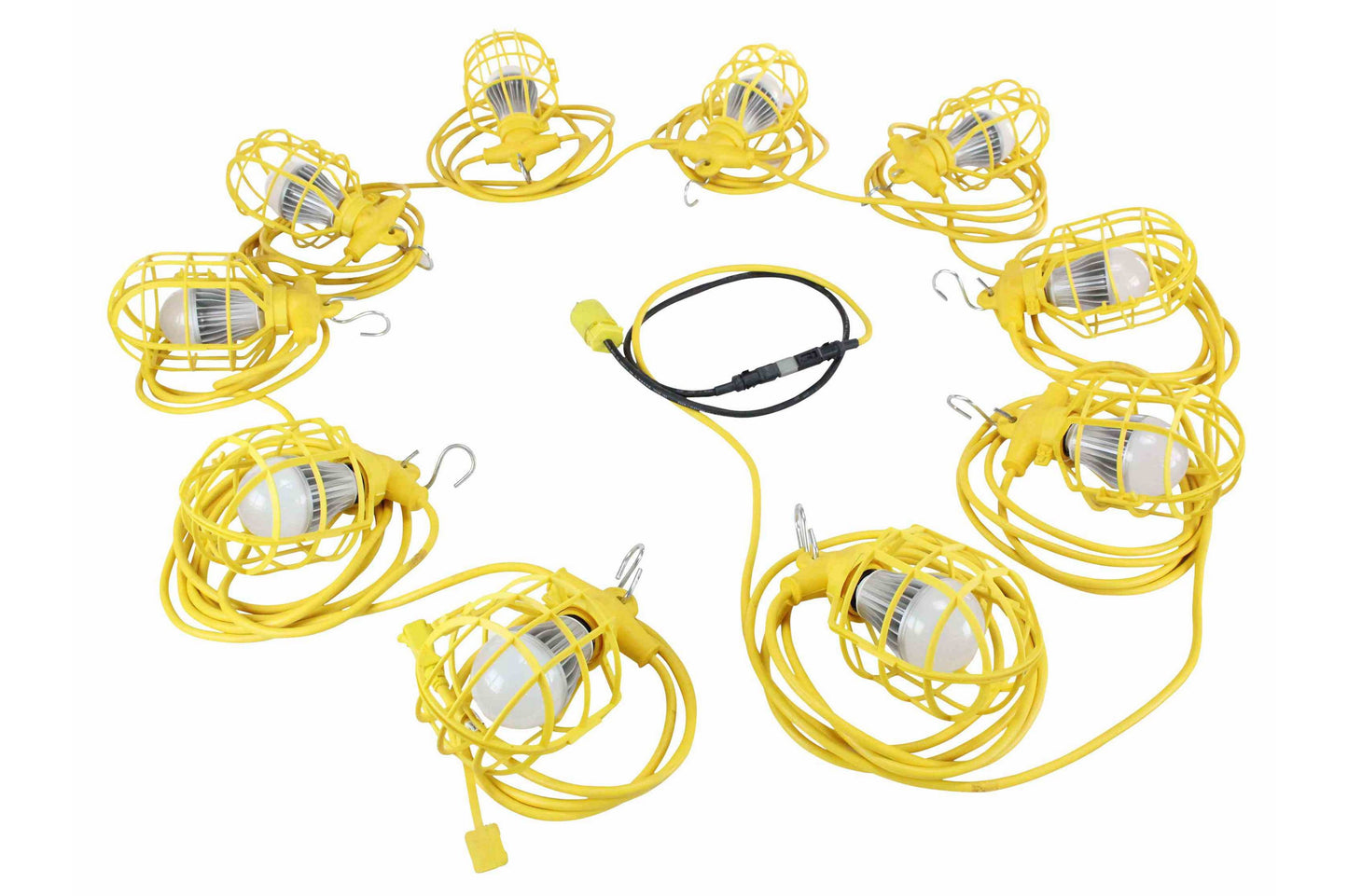

The Larson Electronics WAL-SL-10-LED-INTL-20 Work Area Lighting LED String Light is designed for high output job site illumination. The 10 watt LED lamps on this this work site light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power.
This work area string light consists of ten industrial grade LED lamps with 10 feet of 14/2 SJTW cable between each unit. This temporary LED string light is connected to power via an integrated 20 foot cable terminated with a standard international blade plug. Each globe light is equipped with a high output LED bulb which delivers more light output than a 100 watt incandescent. The 10 watt LED bulb draws 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. Each LED light screws into a molded E26 lamp socket and the bulb is enclosed in a bird cage style plastic guard.
100 Watt Incandescent Bulb
10 Watt LED Bulb
Each light has a yellow plastic mesh guard enclosure that provides protection for the enclosed bulb and a hook that allows operators to hang these tasks lights overhead. Multiple light stringers can be connected end to end to extend work area illumination. There are limits to how many strings can be interconnected based on the overall amp draw, power source, etc. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. Each LED trouble light has an effective range that approximately covers a 5 to 8 foot radius with 10-15 foot candles of light.
UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
Flying Leads / Pigtail Wires
Wiring:
This unit is equipped with SJTW cable terminated in an industrial grade cord cap and receptacle. Plug and outlet options include BS1363 3-blade plug for United Kingdom outlets, a two pin Schuko plug for European outlets, and flying leads for users to install user provided plugs and receptacles.
Stringer Energy Consumption Comparison
Incandescent
CFL
LED
Wattage
1000 watts
260 watts
100 watts
Amp Draw @ 120V AC
8.34 amps
2.17 amps
0.84 amps
Amp Draw @ 277V AC
3.61 amps
0.94 amps
0.36 amps
Amp Draw @ 12V DC
83.34 amps
21.67 amps
8.34 amps
Amp Draw @ 24V DC
41.67 amps
10.84 amps
4.17 amps
Lamp Life Expectancy
1,500 hours
8,000 hours
50,000 hours
Color Temperature
2800K
4300K
6000K
Operation cost per year
(8hs/day @ 11c/kWh)
$321.2
$83.52
$32.12
These lights are configured to operate with 120V-277VAC current and are available in an optional 12-24VDC configuration as well. These LED string lights provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
Lamp Features
Superior LED Benefits
1. 10 Watt LED Lamps
2. Outdoor Approved
3. No ballast, no flickering, instant on illumination
4. Yellow Cage Plastic Guards for added protection
5. 120-277V AC or 12-28V DC Operation
6. Durable solid state LED construction resists damage from impacts and vibrations.
7. Hanging hook for hanging and hands free operation.
8. 10 feet of 14/2 SJTW cable between each light. 20 foot whip.
9. End to end operations allows connecting multiple stringers together for maximum work site illumination.
10. Energy efficient alternative to incandescent and compact fluorescent temporary string lights
1. 50,000 hour lifespan.
2. Can SAVE 50% or more on energy.
3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs.
4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration)
5. 100% recyclable.
6. No toxins-lead, mercury.
7. No UV light, infrared radiation or CO2 emissions.
8. Qualifies buildings for LEED and other sustainable business certifications.
9. Bright, even light maintains consistent color over time.
10. Instant on/off – No flickering, delays or buzzing.
11. Very good color rendering.
12. Vibration/impact resistant.
13. Significantly cooler operation.
14. Less frequent outages, higher output improves workplace safety.
Specifications
Lamp Type: LED
Total Watts: 100 watts
Voltage: 120V-277VAC - 12-28VDC
Total Length: 106 Ft
Wiring: 10` 14/2 SJTW Cable Per Unit, 20 Foot Whip
Mounting: Aluminum Hook
Cord Cap: Male Schuko, BS1363, or Flying Leads
Receptacle: Female Schuko, BS1363, or Flying Leads
The Larson Electronics WAL-SL-10-LED-INTL-20 Work Area Lighting LED String Light is designed for high output job site illumination. The 10 watt LED lamps on this this work site light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power.
This work area string light consists of ten industrial grade LED lamps with 10 feet of 14/2 SJTW cable between each unit. This temporary LED string light is connected to power via an integrated 20 foot cable terminated with a standard international blade plug. Each globe light is equipped with a high output LED bulb which delivers more light output than a 100 watt incandescent. The 10 watt LED bulb draws 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. Each LED light screws into a molded E26 lamp socket and the bulb is enclosed in a bird cage style plastic guard.
100 Watt Incandescent Bulb
10 Watt LED Bulb
Each light has a yellow plastic mesh guard enclosure that provides protection for the enclosed bulb and a hook that allows operators to hang these tasks lights overhead. Multiple light stringers can be connected end to end to extend work area illumination. There are limits to how many strings can be interconnected based on the overall amp draw, power source, etc. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. Each LED trouble light has an effective range that approximately covers a 5 to 8 foot radius with 10-15 foot candles of light.
UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
Flying Leads / Pigtail Wires
Wiring:
This unit is equipped with SJTW cable terminated in an industrial grade cord cap and receptacle. Plug and outlet options include BS1363 3-blade plug for United Kingdom outlets, a two pin Schuko plug for European outlets, and flying leads for users to install user provided plugs and receptacles.
Stringer Energy Consumption Comparison
Incandescent
CFL
LED
Wattage
1000 watts
260 watts
100 watts
Amp Draw @ 120V AC
8.34 amps
2.17 amps
0.84 amps
Amp Draw @ 277V AC
3.61 amps
0.94 amps
0.36 amps
Amp Draw @ 12V DC
83.34 amps
21.67 amps
8.34 amps
Amp Draw @ 24V DC
41.67 amps
10.84 amps
4.17 amps
Lamp Life Expectancy
1,500 hours
8,000 hours
50,000 hours
Color Temperature
2800K
4300K
6000K
Operation cost per year
(8hs/day @ 11c/kWh)
$321.2
$83.52
$32.12
These lights are configured to operate with 120V-277VAC current and are available in an optional 12-24VDC configuration as well. These LED string lights provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
Lamp Features
Superior LED Benefits
1. 10 Watt LED Lamps
2. Outdoor Approved
3. No ballast, no flickering, instant on illumination
4. Yellow Cage Plastic Guards for added protection
5. 120-277V AC or 12-28V DC Operation
6. Durable solid state LED construction resists damage from impacts and vibrations.
7. Hanging hook for hanging and hands free operation.
8. 10 feet of 14/2 SJTW cable between each light. 20 foot whip.
9. End to end operations allows connecting multiple stringers together for maximum work site illumination.
10. Energy efficient alternative to incandescent and compact fluorescent temporary string lights
1. 50,000 hour lifespan.
2. Can SAVE 50% or more on energy.
3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs.
4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration)
5. 100% recyclable.
6. No toxins-lead, mercury.
7. No UV light, infrared radiation or CO2 emissions.
8. Qualifies buildings for LEED and other sustainable business certifications.
9. Bright, even light maintains consistent color over time.
10. Instant on/off – No flickering, delays or buzzing.
11. Very good color rendering.
12. Vibration/impact resistant.
13. Significantly cooler operation.
14. Less frequent outages, higher output improves workplace safety.
Specifications
Lamp Type: LED
Total Watts: 100 watts
Voltage: 120V-277VAC - 12-28VDC
Total Length: 106 Ft
Wiring: 10` 14/2 SJTW Cable Per Unit, 20 Foot Whip
Mounting: Aluminum Hook
Cord Cap: Male Schuko, BS1363, or Flying Leads
Receptacle: Female Schuko, BS1363, or Flying Leads
