10KVA XMFR - 480V to 120/240V Portable MiniPDU - (1) 30A and (2) 20A Outlets - 30' Cord w/ NPJ3483

LARSON ELECTRONICSSKU: PL3-WAL-TX-480.1P-10KVA-120.240-1X30A-2X20A-NPJ3483
filler

Prix:
Prix réduit$13,384.00

Description

Specifications / Additional Information
WAL-TX-480.1P-10KVA-120.240-1X30A-2X20A-NPJ3483 mini PDU
Primary Voltage: 480V AC 1P 60 Hz UL 1640
Line-In Cable: 30` 10/4 SOOW Cable NEMA 3R Weatherproof
Line-In Cord Cap: Industrial Grade NPJ3483 GFCI Outlets
Primary Breakers: 25A Din-Rail Mount [480V] Portable Casters
Transformer: 10KVA 480-1P to 120/240V-1P N3R Top mounted push handle for portability
Secondary Voltage: 120/240V-1P 60 Hz Top located cord management
Secondary Receptacles: (2) 120V 20A GFCI 5-20R Duplex and (1) 240V 30A 6-30R
Secondary Breakers: 20A [120V], 30A [240V]
Dimensions: 18.5"L x 33"W x 39.5"H
Weight: 85 lbs
Mounting: Portable / Base Stand w/ Polyurethane Swivel Casters
Fax:1-903-498-3364
  E-mail:
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

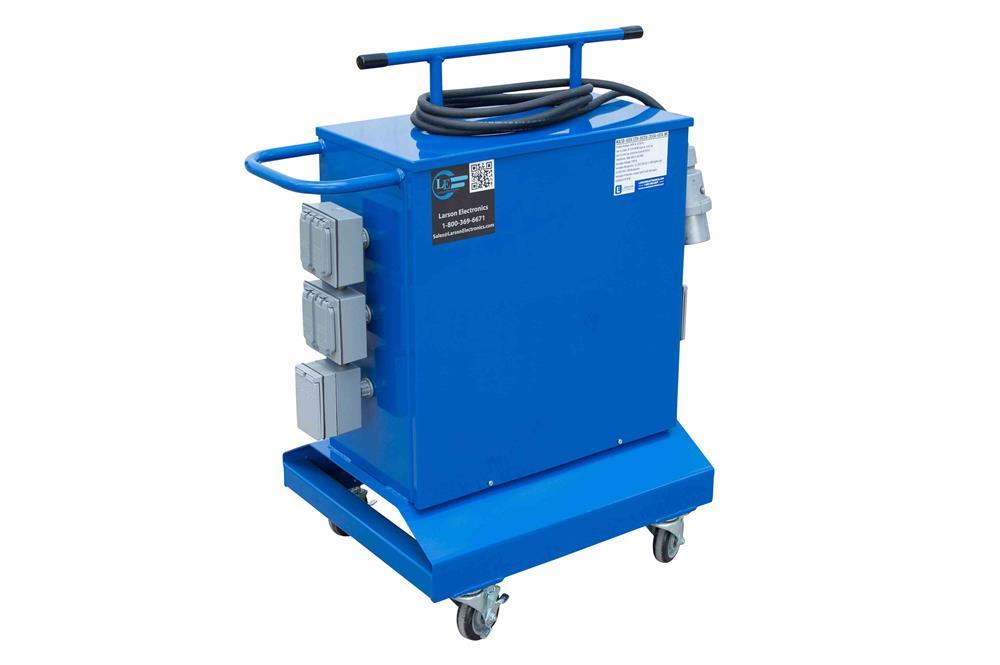

Made in Texas The Larson Electronics WAL-TX-480.1P-10KVA-120.240-1X30A-2X20A-NPJ3483 portable power distribution converts 480V AC 50/60 Hz input voltage and steps it down to 120/240V AC output voltage. This weatherproof portable power distribution unit allows operators to plug into 480V generators and welding outlets via a NPJ3483 male pin and sleeve cord cap. The WAL-TX-480.1P-10KVA-120.240-1X30A-2X20A-NPJ3483 portable wheeled mini PDU from Larson Electronics is built to provide operators with a reliable source of 120/240V power. This compact mini PDU is designed for portability and convenience as well as durability. Featuring an elevated base platform for protection from standing water and weatherproof construction, the WAL-TX-480.1P-10KVA-120.240-1X30A-2X20A-NPJ3483 is ideal for powering 120V and 240V equipment and lighting in construction, entertainment, job-site, marine, and outdoor locations where 480V generators are providing the power. This portable mini PDU features two 120V 20A GFCI 5-20R duplex receptacles and one 240V 30A 6-30R receptacle that provide sealed and secure connections for up to 3 devices. The maximum amperage for all 120V receptacles is 20A, protected by a din rail mount circuit breaker. The maximum amperage for the 30 240V receptacle is 30 amps, protected by a 30 amp din rail mount circuit breaker. The primary side of the transformer is protected by a 25 amp 480V din rail mount circuit breaker. Each receptacle feature a hinged watertight cover protecting the face from rain, water, and moisture when not in use. The housing on the WAL-TX-480.1P-10KVA-120.240-1X30A-2X20A-NPJ3483 is constructed from powder coated steel with a NEMA 3R enclosure rating. The angled base and low center of gravity ensure this low voltage transform does not tip over when in the field. The entire unit is powder coated with glossy blue finish for corrosion resistances and aesthetics. The assembly is mounted atop four swivel polyurethane casters, two standard swivel and two locking swivel, aiding in transportation within the job site. A top located adjustable push handle allows operators to guide this unit through the workspace. The WAL-TX-480.1P-10KVA-120.240-1X30A-2X20A-NPJ3483 portable mini PDU system primary voltage is brought in via 30` of 10/3 chemical and abrasion resistant SOOW cable that is fitted with an industrial grade male NPJ3483 pin/sleeve cord cap. A top located cord management system allows operators to roll up line-in cord when not in use, and roll up the extra slack in the power cable during use. A primary voltage indicator light illuminates when the primary side of the transformer is connected to live voltage. Larson Electronics is a manufacturer and as such can build transformers to your specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or
