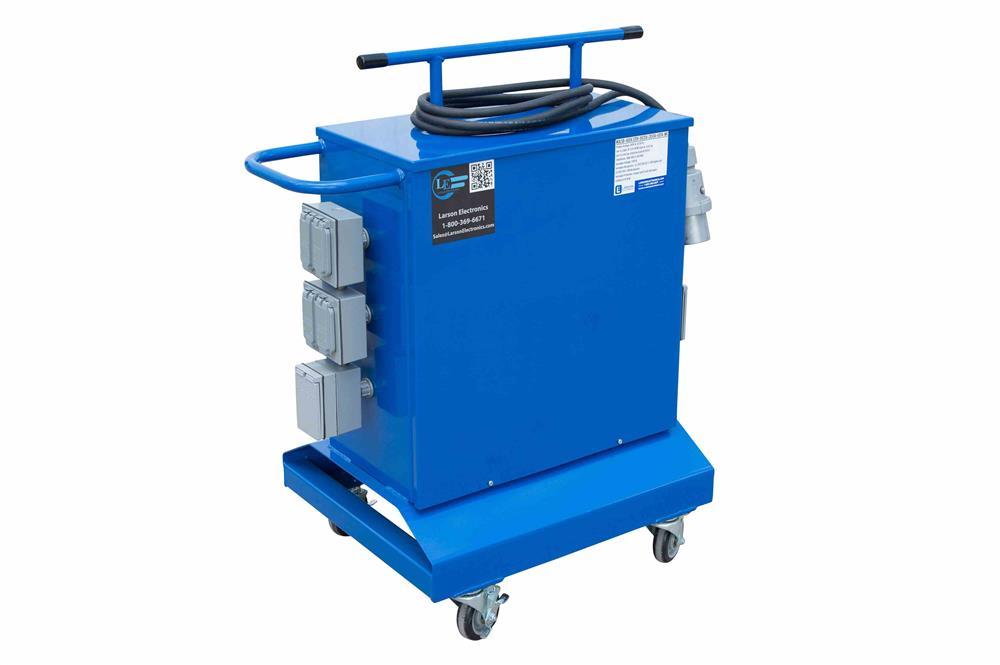

Portable Power Distribution Spiderbox - 400/230V 63A MCB - (3) 532R6W (6) 316R6W Receptacles - Inlet
Portable Power Distribution Spiderbox - 400/230V 63A MCB - (3) 532R6W (6) 316R6W Receptacles - Inlet
Sold by: LARSON ELECTRONICS
| WALSB-400.230-3X32A-6X16A Spider Box | Ratings |
| Power Inlet: 63A 563B6W 50/60 Hz [400Y/230V] | UL 1640 |
| Primary Voltage: 400Y/230VAC 50/60 Hz | NEMA 3R Weatherproof |
| Panel:Â 400Y/230V 3PH 63A MCB Mini Panel N3R | Overload Protection |
| Circuit Breakers: (1) 63A 3P [400V], (3) 32A 3P [400V] (3) 16A 1P [230V] | Top located cord management |
| Receptacles: (3) 32A 532R6W 50/60 Hz [400Y/230V], (6) 16A 316R6W 50/60 Hz [230V] | |
| Protection:Â Circuit Breakers, Weatherproof Covers | |
| Max Primary OCP:Â 63AÂ @ 400V | Toll Free:Â 1-800-369-6671 |
| Dimensions: 18.5"W x 39.5"H | Intl:Â 1-214-616-6180 |
| Weight: 150 lbs | Fax:Â 1-903-498-3364 |
| Mounting: Portable / Base Stand w/ Polyurethane Swivel Casters | E-mail:Â |
| Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| This unit is Made In USA - Manufactured in Texas The Larson Electronics WALSB-400.230-3X32A-6X16A portable power distribution provides 400Y/230VAC input via a 63-amp 563B6W power inlet to nine 400V and 230V outlets. This weatherproof portable power distribution unit allows operators to plug into 400Y/230V generators and welding outlets via the 63-amp, 563B6W power inlet. The WALSB-400.230-3X32A-6X16A portable wheeled spider box from Larson Electronics is built to provide operators with a reliable source of 400V, 3PH and 230V, 1PH power. This spider box is designed for portability and convenience as well as durability. Each receptacle features a hinged watertight cover protecting the face from rain, water and moisture when not in use. The WALSB-400.230-3X32A-6X16A power distribution unit features overload protection. In the instance of circuit overload, the unit automatically trips the circuit breaker to protect the unit from damage, and operators manually reset the breaker. The housing on the WALSB-400.230-3X32A-6X16A is constructed from powder coated steel with a NEMA 3R enclosure rating. The angled base and low center of gravity ensure this unit does not tip over when in the field. The entire unit is powder coated with glossy blue finish for corrosion resistances and aesthetics. The assembly is mounted atop four swivel polyurethane casters, two standard swivel and two locking swivel, aiding in transportation within the job site. A top located adjustable push handle allows operators to guide this unit through the workspace. The WALSB-400.230-3X32A-6X16A portable spider box system provides 63-amps of 400Y/230VAC outlets. Primary voltage is brought into the 400Y/230V, 63-amp mini main circuit breaker NEMA 3R panel using a 63-amp, 400Y1230V, 563B6W power inlet, which is distributed to nine 400V and 230V outlets. The panel contains three 32-amp, 400V, 3 pole mini circuit breakers protecting three 32-amp, 400Y/230V, 532R6W receptacles, and three 16-amp, 230V, 1 pole mini circuit breakers protecting six 230V, 316R6W receptacles. A top located cord management system allows operators to roll up line-in cord when not in use and roll up the extra slack in the power cable during use. Applications: This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. Larson Electronics is a manufacturer and as such can build portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
