Larson Power Transformer and Wiring System for WALTP-L2X4-25CC-1227-AB0001 LED Light Tripod
Larson Power Transformer and Wiring System for WALTP-L2X4-25CC-1227-AB0001 LED Light Tripod
Sold by: Larson Electronics

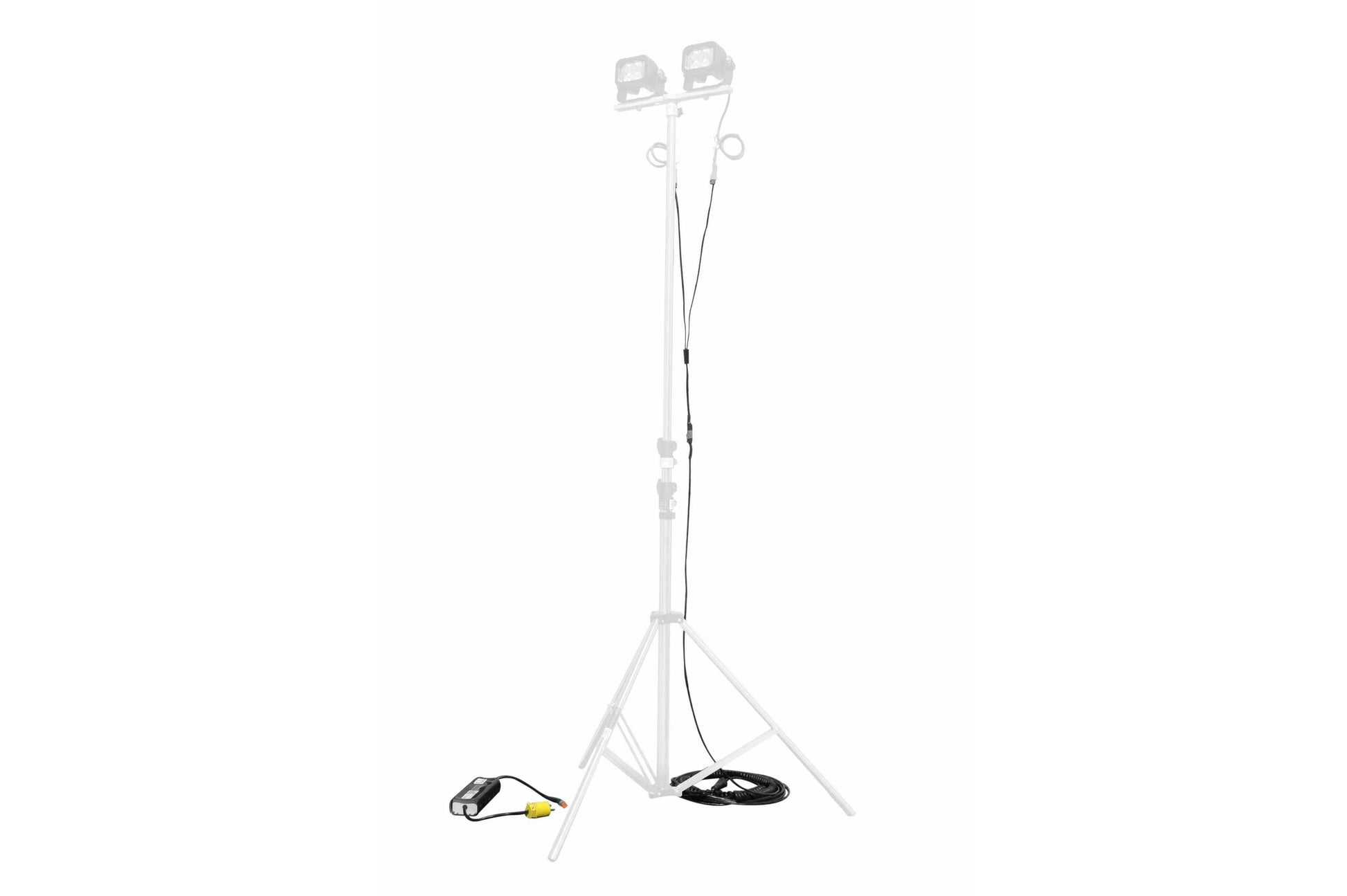

The WALTP-L2X4-25CC-1227-AB0002 from Larson Electronics is a power transformer and wiring system for the WALTP-L2X4-25CC-1227-AB0001 Tripod Mounted Dual LED Light. This wiring system includes a power transformer that allows the unit to be plugged into general area outlets, a cigarette coil cord and plug for powering the lights from a vehicle and sixteen feet of 16/2 SOOW cord with a quick disconnect plug.
Power:
These LED tower lights are equipped with a 25` cord and an in-line transformer that allows operation with standard 120-277V AC current. Alternatively, operators can disconnect the transformer and power these lights directly from 12 to 24 volt DC power sources via the 16` coil cord cigarette plug cable, as they can operate natively with DC current ranging from 9 to 32V DC. You do not need to anything special to operate these light bars in their multi-voltage 9-32 Volt configuration. They will sense the incoming voltage and adapt accordingly.
5-15 Straight Blade Plug
15 Amp / 125V Rated
L5-15 Twist Lock Plug
15 Amp / 125V Rated
L6-15 Twist Lock Plug
15 Amp / 250V Rated
UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
Flying Leads / Pigtail Wires
Wiring and Plug:
This power transformer and wiring system comes with a 11` Y harness that is fitted with a quick disconnect for connecting to the 16` coil cord with cigarette plug or 16` inline tranformer with industrial grade cord cap for easy connection to common wall outlets. Plug options for the transformer include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
These LED tower lights are equipped with a 16 foot coil cord and cigarette plug, allowing operators to power this LED light tower from any portable battery pack, vehicle, equipment, ATV or boat equipped with a cigarette lighter port. You do not need to anything special to operate these light bars in their multi-voltage 9-32 Volt configuration. They will sense the incoming voltage and adapt accordingly.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Voltage: 9-32VDC
Amps: 0.2 @ 120V AC, 2 @ 12V DC
Wiring: 11` Y Harness, Inline Transformer w/ 16` 16/2 Straight Cable, 16` Coil Cord w/ Cig Plug
Cord Cap: 5-15, L5-15, L6-15, BS1363, Schuko, or Pigtail / Cigarette Plug
Unit Weight: 3 lbs Total
