Specifications / Additional Information
WCDE-4-20KW-MHL-CPR-MOD2 Mobile Light Tower Protection
Genset Specs: 20kW Perkins Genset
Engine: Perkins/404D-22G EPA Tier 4 30 Gallon Fuel Capacity
Engine Type: 4-cycle, Water Cooled, Direct Injection, Natural Intake 19+ Hours of Continuous Illumination
Engine Speed: 1800 RPM External Grounding
No. of Cylinders: 4 Low Oil, High Engine Temp Auto Shut-Off
Rated Power: 20 kW Deepsea Controller
Rated Standby Output: 22 kW Four Point Outrigger System
Generator: Stamford PI144D, Brushless - Insulation H Steel Trailer w/ Industrial Grade Paint Finish
Voltage: 120/240V 60Hz 3PH High Output MH Lamps
Battery 12V @ 60Ah, 550 CCA 440,000 Total Lumen Output
Fuel Cell Capacity: 30 Gallons Independently Adjustable Light Heads
Fuel Delivery: Electric Individual Light Switch Circuit Breakers
Receptacles: (1) 50A CS8269 [240V], (1) 20A 5-20R Duplex [120V] Dial-in Adjustability per light head
Noise Level: Db level 65 @ 23 ft 110 Lumens Per Watt Efficiency
Withstands 50Mph Winds at Full Extension
Light Mast Specs: Brushless Generator
Mast Type: Manual Crank-Up Class H Insulation
Boom Height: Up to 25`
Materials: Aluminum
Operation: Dual Winch System
Winch: 1,500 lbs - Self-Braking
Stages: Four
Features: Coiled Mast Cord, (1) Lifting Eye and Fork Pockets
Light Specs:
Lamp Type: Metal Halide
Lamp Qty: 4
Total Lumens: 440,000 (110,000 per lamp)
Luminous Efficacy: 110 lm/w
Color Temperature: Neutral White - 4100K
Life Expectancy: 20,000 hours
Coverage: 7.5 Acres @ 0.5 fc
Trailer Specs
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: Combo-type for 2" Ball and 2.5" Pintle Hook
Finish: Industrial Grade Paint
Axle: (1) 2,200 lbs
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (4) Adjustable Outriggers w/ 2,000 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: 155R13
Dimensions: 137" x 93.3" x 53.9"
Weight: -
' Product Overview '

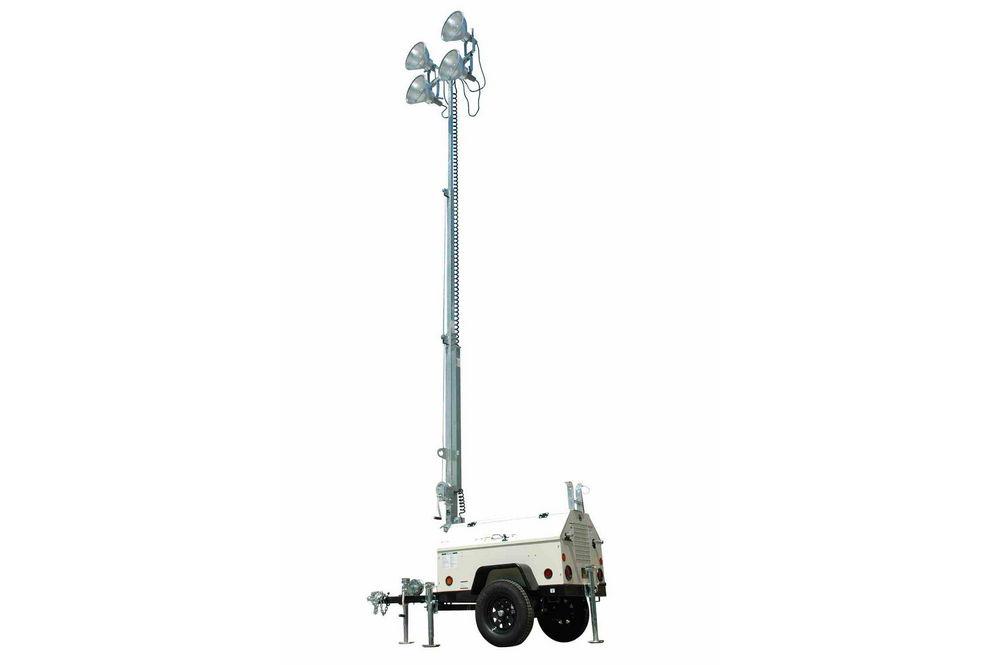

Made in Texas The WCDE-4-20KW-MHL-CPR-MOD2 mobile light tower from Larson Electronics is a towable lighting package powered by a 20 kW generator. With four 1,000 watt metal halide lamps producing 440,000 lumens, this 30-gallon unit will illuminate a 7.5 acre area continuously (at a rate of 0.5 fc) without refueling for 19+ hours. A Deepsea controller is available for monitoring the real-time status of the IP65-rated unit. The Tier 4, brushless generator (Class H insulation) is equipped with one, 50-amp 240V and one 20-amp 120V reeptacles. The WCDE-4-20KW-MHL-CPR-MOD2 mobile light tower is a metal halide lighting solution for outdoor, remote locations. This unit is supported by a 4-cycle, water cooled, direct injection, natural intake Perkins/404D-22G engine (Tier 4 diesel), which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. The light mast can provide 19+ hours of continuous illumination, at extended heights up to 25 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed. With engine speeds of 1,800 rpm, the four-cylinder unit is capable of generating 22 kW on standby and 20 kW during prime use. As a low-rpm generator, it operates quieter than 3,600 rpm "throw-away" models. Because 3,600 rpm generators have higher speeds, the units wear out faster and require less copper during operation. This generator is brushless and features a Class H insulation rating. A 12V DC battery inside the unit provides up to 550 CCA.
Fuel Consumption @ 19.8 Gal Gallons
Full Load 1.23
3/4 Load 0.95
1/2 Load 0.68
1/4 Load 0.34
The WCDE-4-20KW-MHL-CPR-MOD2 is designed to support 120/240V 60Hz. It features three-phase 120/240V at 48.11 amps, as well as five power outputs and an ATS plug. This unit will automatically shut down in the event of an abnormal condition related to water temperature, engine oil pressure, low coolant, low DEF, overspeed and overcrank. An emergency stop switch allows operators to manually shut down the system. Operators can power equipment using the following receptacles on the unit: (1) 50-amp CS8269 240V and (1) 20-amp 5-20R duplex 120V. Lights: The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 7.5 acres (at a rate of 0.5 fc) with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. Controls: A DSE3110 Deepsea controller provides operators with a wide viewing panel and robust monitoring of the brushless generator. The system displays frequency, battery voltage, runtime and more. A protective feature notifies operators about low oil pressure, high water temperature, over/under voltage and over/under speed. The controller can be used in manual or auto start mode. Configurable timers and alarms provide flexibility and real-time monitoring of the system. Telescoping Boom: The telescoping boom consists of four sections extending up to 25 feet through the use of a dual, self-braking winch and allows for rotating the lights 360 degrees. The telescoping boom is constructed of aluminum to resist rusting and corrosion and is capable of withstanding 50 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a four-point design with one located under the trailer tongue, two on the sides and one on the back of the unit. The two side outriggers are adjustable and include 2,000 lbs swivel jacks for leveling and stabilizing the tower. A combo-type hitch is available for 2" ball and 2.5" pintle hook. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side wing doors provide access to the interior while latches provide secure closing when the unit is in use. The design and construction of this enclosure helps this unit operate at a low 65 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the top section of the light mast. The entire unit is mounted onto a two-wheel trailer with a 2,200 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing. Applications: This portable generator is suitable for use in remote locations, such as temporary camps, construction sites, military bases and areas without reliable access to the grid. It can be utilized to power a wide range of heavy duty tools and equipment, including laptops, portable machines and mobile devices. The unit’s robust recharging options offer flexibility in environments where access to reliable power sources are severely limited.
