30' Security LED Light Tower - 6,000W Generator - (4) 480W LED Fixtures - (4) Cameras - 2TB

LARSON ELECTRONICSSKU: PL3-WCDE-4-4X360W-LED-4X3MP-2TB
filler

Prix:
Prix réduit$70,058.00

Description

Specifications / Additional Information
WCDE-4-4X360W-LED-4X3MP-2TB Mobile Security Light Plant Protection
Genset Specs 6KW Kubota Brushless Genset
Engine: Kubota D1105-BG-ET01 30 Gallon Fuel Cell
Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine Up to 80+ Hour Continuous Operation
Engine Speed: 1800 RPM External Grounding
No. of Cylinders: 3 Low Oil, High Engine Temp Auto Shut-Off
Generator: Marathon Pancake 6KW 4-Pole Brushless Hour Meter - Alternator Warning
Voltage: 120/240V Single Phase High Output LED Lamps
Auxiliary Power Supplies: 120V Duplex Receptacle, 240V Twist Lock Extreme Area Coverage
Battery 12V Direct Replacement for (4) 1000W MH Light Plants
Fuel Cell Capacity: 30 Gallons 1,920W LED compared to 4000W MH
Fuel Delivery: Electric 240,000 Total Lumen Output
Noise Level: Db level 63 @ 23 ft Independently Adjustable Light Heads
Individual Light Switch Circuit Breakers
Light Mast Specs Dial-in Adjustability per light head
Mast Type: Manual Crank-Up 98% Transmission High Purity PMMA Optics
Boom Height: Up to 30` Multiple LED Banks for Heat Dispersion
Materials: Galvanized Steel 125 Lumens Per Watt Efficiency
Operation: Manual Hand Crank Winch 70% Lumen Retention after 80,000 Hours
Winch: (2) 1500lb, Self-Braking IP67 Waterproof LED Fixtures
Stages: Three Steel Trailer w/ Industrial Grade Paint Finish
Three Point Outrigger System
LED Light Specs Withstands 65Mph Winds at Full Extension
Lamp Type: Cree® LED
Total Watts: 1,920 (480W per lamp)
Total Lumens: 240,000 (60,000 per lamp)
Luminous Efficiency: 125 lm/w
LED Color Temperature: Cool White - 5500-6500K
LED Life Expectancy: 80,000 hours
Optics Efficiency: 98% - PMMA High Transmittance Optics
LED Drive: 90%
Power Factor: >97%
Mounting: Stainless Steel Trunnion Mount U-Bracket
Materials: Die Cast Aluminum Housing, Acrylic Optics
Housing Color: Natural Aluminum
Ambient Temperature Range: -40°C to +80°C
Waterproof Rating: IP67
Coverage: 6 to 7 Acres
Security Camera Specs
Camera Type:Infrared IP Camera
Power Supply: 12V DC
Sensor: CMOS
Viewing Angle: 79 Degrees
Connectivity: IP/Network Wired
Lens: 4mm @ F2.0
Minimum Illumination: 0.07 Lux
Network Interface: RJ-45 10/100Mb Ethernet Slot
Pixels: 3MP Mini CCTV Camera
Image Resolution: 2048 x 1536
System Capacity: ONVIF, PSIA, CGI, ISAPI
Video Compression: H.264/M-JPEG
Video Recorder Specs
Video Recorder Type: 3300 Series 8-Channel Network Video Recorder
Storage Capacity: 2TB
Ethernet Speed: X1 10 /100/1000 Mbps Self-Adaptive Ethernet Interface x8 10 /100 Mbps PoE Ethernet Interfaces
Bit Rate: 80 Mbps Incoming, 160 Mbps Outgoing
Compression Type: H.265/H.264/H.264 OVC
Recording Resolution: Up to 8 MP
Frame Rate (fps): Up to 60fps Per Channel
Recording Modes: Schedule, Continuous, Motion Detection and Event
Video Offload: MP4
Operating Humidity: 10% ~ 90%
Operating Temp: 14°F ~ 131°F
Input: (1) RCA
Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear)
Dimensions: 1.8" H x 15" W x 11.4" D
Weight: 6.6 Lbs
Trailer Specs
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Hitch: 2" Ball Coupler
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs
Suspension: 2,000 lbs Double Eye Leaf Springs
Outriggers: (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: ST175/80/D13
' Product Overview '

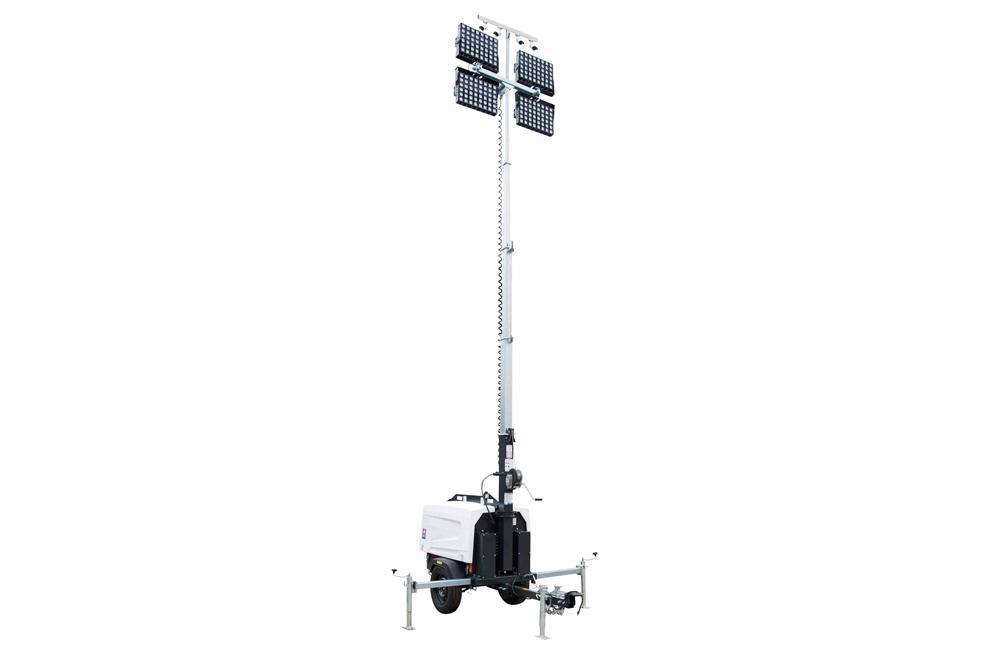

Made in Texas The Larson Electronics WCDE-4-4X360W-LED-4X3MP-2TB Security LED Light Tower is a towable, self-contained LED light plant powered by a water cooled diesel engine turning a single bearing 4 pole generator, which produces 6,000 watts and 120/240V@60Hz. The four 480 watt LED lamps included with this unit produce a combined total of 240,000 lumens illuminating an area 6-7 acres. Equipped with four PoE powered IP cameras and a 2TB NVR, this 1,920 watt LED lighting package is a direct replacement for 4,000 watt metal halide light plants. This trailed mounted light tower and generator set comes equipped with a 30 gallon fuel tank that will run continuously without refueling for up to 80 hours consecutive hours. The WCDE-4-4X360W-LED-4X3MP-2TB mobile light tower is a self contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. Observation of the area is facilitated by four outdoor IP cameras with a 2TB NVR. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to four 480 watt LED lamps producing 60,000 lumens each for a combined total of 240,000 lumens of light. This unit can run uninterrupted for 80 hours straight without refueling and includes a telescoping light mast which can elevate the four LED lamps to a height of 30 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed.
The WCDE-4-4X360W-LED-4X3MP-2TB mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 80+ hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 Hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Click Photo to Enlarge
Lights: The lighting system on this unit is comprised of four 480 watt LED lamps producing 60,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a 6 acres with a combined total of 240,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. In addition, should an LED failure occur, these LED flood lights are field serviceable. Each bank of six LEDs can be replaced with the fixture installed. This allows for the tower to stay in operation until repairs can take place, and eliminates the need to remove and disassemble the entire fixture for repairs. Durability: As well as unparalleled heat control, the GAU-LTL series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The Cree® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We use these LED lights for applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Outdoor Cameras: This mobile security light tower features four, PoE powered IP cameras, fix mounted on the tower. Glare shields can be found on the unit, which prevents light from interfering with the camera. Each camera supports up to 3 megapixels (2048 x 1536 resolution), 4mm lens with a 79-degree viewing angle, a CMOS sensor, and an infrared LED array with automatic cutover for low light recording. The camera may be used with a RJ-45 10/100Mb ethernet slot.
Resolution Frame Rate Operation Record Time
720p 15 24/7 16 Days
720p 25 24/7 6 Days
2MP 15 24/7 7 Days
2MP 25 24/7 4 Days
1080p 15 24/7 7 Days
1080p 25 24/7 3 Days
3MP 15 24/7 4 Days
3MP 25 24/7 3 Days
For video recording options, the tower comes with a NVR, mounted at the base of the unit. This component is locked to prevent tampering or theft. The 3300 Series 8-Channel NVR supports 2TB of storage and 80/160 Mbps incoming/outgoing bit rate. This unit features four recording modes (Schedule, Continuous, Motion Detection and Event) with MP4 video offload format. One RCA input and four output (VGA, HDMI, USB 2.0 and USB 3.0) slots can be found on the NVR. Note: Reviewing footage must be done by connecting a monitor and mouse to the unit (supplied separately).
Click Photo to Enlarge
Controls: The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240V twist lock power receptacle. Telescoping Boom: The telescoping boom consists of three sections extending up to 30 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 65 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two rear outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
