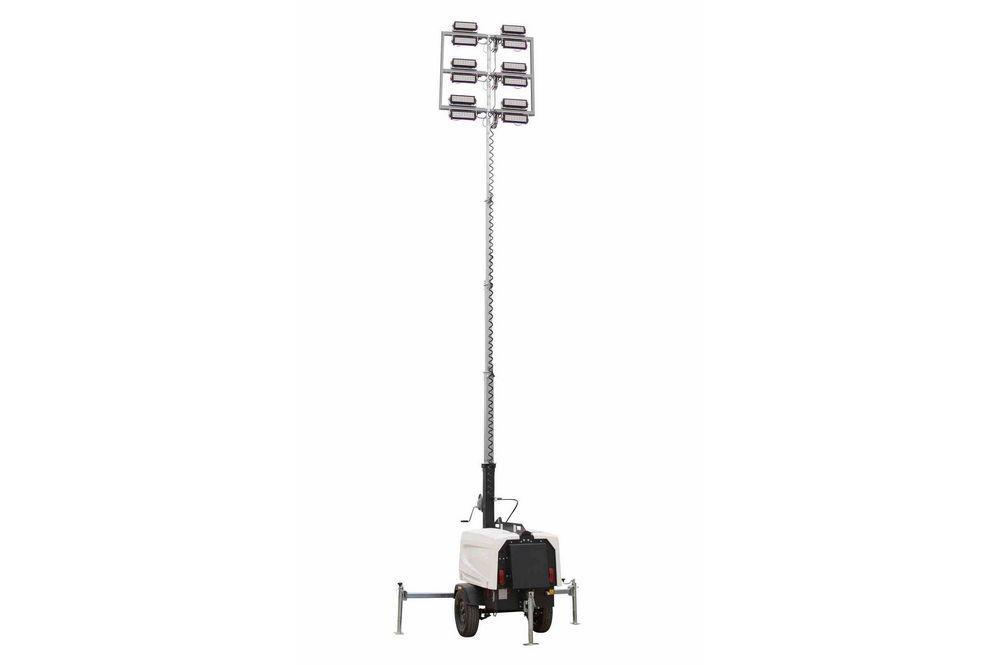

6,000 Watt Generator - Water Cooled Diesel Engine - 50' Megatowerâ„¢ - 12 LED Fixtures

LARSON ELECTRONICSSKU: PL3-WCDE-4-50-12X160WSA-LED
filler

Prix:
Prix réduit$107,392.00

Description

Specifications / Additional Information
WCDE-4-50-12X160WSA-LED  Mobile Megatower™ Protection
Power: KUBOTA Water Cooled Diesel Engine External Grounding
Generator: 6000 watts, 120V/240V @ 60hz, 1800rpm Low Oil, High Engine Temp Auto Shut-Off
Lamps: (12) 160 watt LED lamps Three Point Outrigger System
Total Lamp Watts: 1,920 watts Hour Meter - Alternator Warning
Fuel: 30 Gallon Fuel tank  Individual Light Switch Circuit Breakers
Auxilliary Power Supplies): 120V Duplex Receptable, 240V Twist Lock Withstands 65Mph Winds at Full Extension
Boom Height: Up to 50 Feet
Efficiency: 98.6 Lumens per Watt
Total Lumens: 176,676
Coverage: 4 to 6 Acres
Noise Level: Db level 63 @ 23 ft
Mounting: Towable Trailer, 2000lbs Axle, 2" Ball Coupling
Run Time: 60 Hours on Single Tank of Fuel

' Product Overview '
The WCDE-4-8X160WSA-LED mobile Megatowerâ„¢ from Larson Electronics is a towable lighting package powered by a water cooled diesel engine turning a single bearing 4 pole generator which produces 6,000 watts and 120/240V@60Hz. With eight 160 watt LED lamps producing 176,676 lumens this unit will illuminate a 4-6 acre area continuously without refueling for 60 hours. The WCDE-4-50-12X160WSA-LED mobile Megatowerâ„¢ is a self contained towable light tower package that produces enough light to illuminate an area up to 6 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to twelve 160 watt LED lamps producing 14,723 lumens each for a combined total of 176,676 lumens of light. This unit can run uninterrupted for 60 hours straight without refueling and includes a telescoping light mast which can elevate the twelve LED lamps to a height of 50 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed.
The WCDE-4-8X160WSA-LED mobile Megatowerâ„¢ incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 60 hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Click Photo to Enlarge
Lights: The lighting system on this unit is comprised of twelve 160 watt lamps producing 14,723 lumens of light each attached to the end of the 50` telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 4 acres with a combined total of 176,676 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. Durability: As well as unparalleled heat control, the LED10WSA series of LED lights from Larson Electronics also offer IP69K rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40°C to +80°C, are waterproof to three meters, can withstand high pressure and high temperature wash downs, and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The CREE XM-L2™ LEDs help these units achieve up to 60Grms rated resistance to vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use. We recommend these LED lights for use in applications that require regular intensive cleaning and are exposed to a lot of vibration, dust, dirt, and abusive working conditions are encountered. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or “duty cycle” accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Adjustable Brackets: Each LED light head is equipped with an innovative trunnion style mounting bracket that allows the light to be attached to flat surfaces and adjusted through 360 degrees of vertical movement. The LED light head is secured to the mounting bracket with shock dampening rotating inserts. The insert provides precision aiming down to 1° while providing increased longevity to the LED fixture. To vertically adjust the unit, the user simply loosens the screws located on either side of the unit, moves it into the desired position, then retightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise positioning. The stainless steel trunnion bracket has preset angles marked in 5° intervals, allowing operators to precisely aim each fixture.
Click Photo to Enlarge
Controls: The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240V twist lock power receptacle. Telescoping Boom: The telescoping boom consists of five sections extending up to 50 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. The first stage of the boom measures 12` in length, with the four consecutive stages measuring 10` in length. The telescoping boom is constructed of carbon steel with a powder coated finish to resist rusting and corrosion and is capable of withstanding 65 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two rear outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Side doors provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 63 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing.
