Larson 6000W Generator - Water Cooled Diesel Engine - 30' Telescoping Tower - (4) MH Fixtures - Mining Grade

Larson ElectronicsSKU: PL3-WCDE-4-MHL-4TN4000
filler

Prix:
Prix réduit$44,066.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in Texas

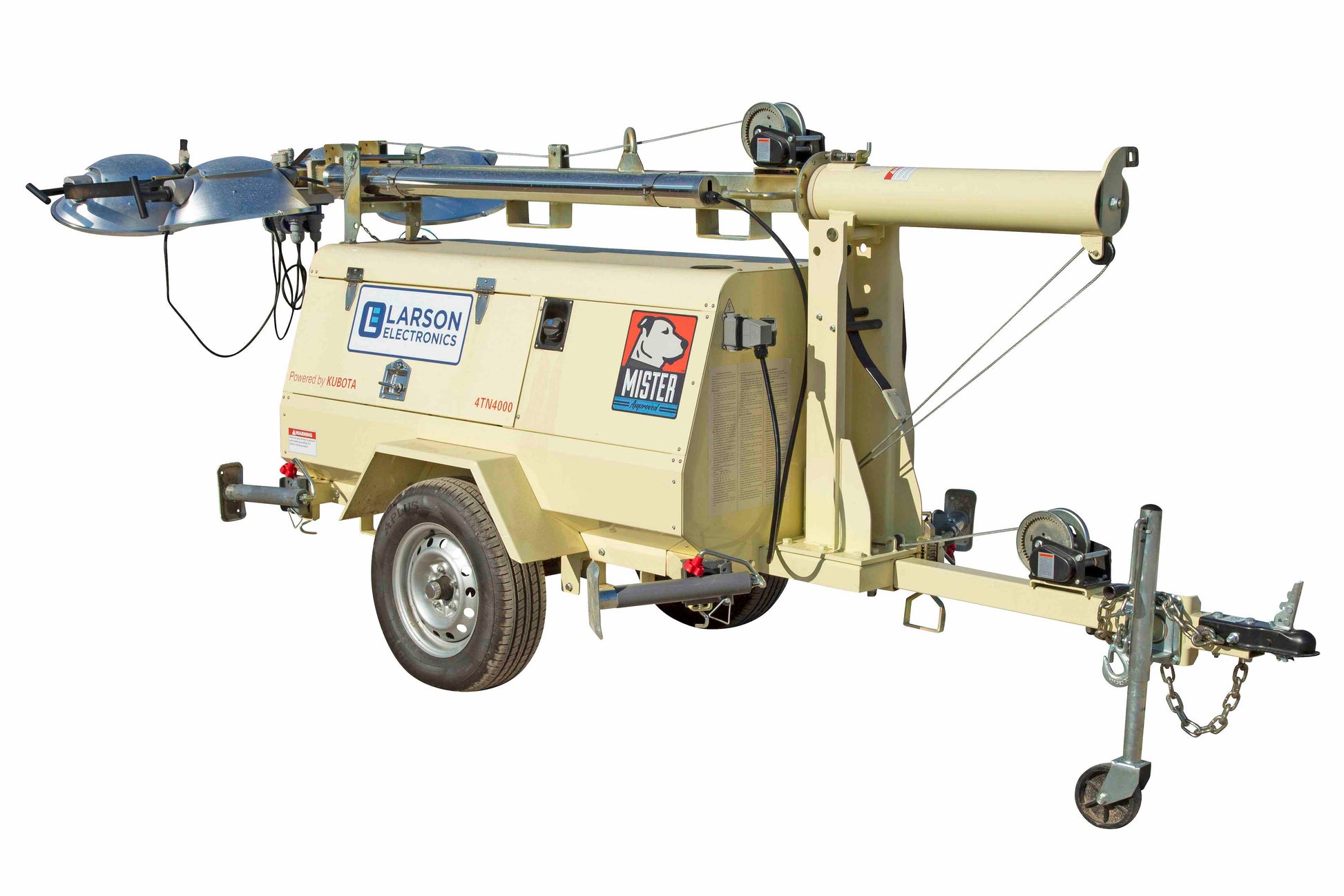

The WCDE-4-MHL-4TN4000 Mobile Light Tower from Larson Electronics is a mining-grade towable lighting package powered by a water cooled diesel engine turning a single bearing 6,000 watt generator. With four 1,000 watt metal halide lamps producing 440,000 lumens, this unit will illuminate a 6-7 acre area continuously without refueling for up to 60+ hours.
The WCDE-4-MHL-4TN4000 mobile light tower is a self contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. This unit can run uninterrupted for 60+ hours straight without refueling and includes a telescoping light mast which can elevate the four metal halide lamps to a height of 30 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed.
The WCDE-4-MHL-4TN4000 mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 44.9-gallon fuel tank allows the engine to operate for 60+ hours continuously without refueling. The 7,500 watt generator is a single bearing design and produces 240 volt current at 60 Hz. Operators may access one 30-amp 240V L6-30R and one 20-amp 120V 5-20R duplex receptacles on the unit. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Lights:
The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating a minimum of 5 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
Controls:
The operating system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch and two power receptacles.
Telescoping Boom:
The telescoping boom consists of five sections extending up to 30 feet through the use of a manual self braking winch and allows for rotating the lights 360 degrees. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 44.7 mph winds when extended to its full height and the stabilizing outriggers deployed. The stabilizing outriggers are a four point design with one located under the trailer tongue, two on the sides and one on the back of the unit. The two side outriggers are adjustable and include 1,000 lbs swivel jacks for leveling and stabilizing the tower.
Housing:
All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. A spillage free frame with an external drain system will contain all fluids to prevent road hazards or damage to the environment. Side wing doors provide access to the interior while latches provide secure closing when the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 72 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the top section of the light mast. The entire unit is mounted onto a two-wheel trailer with a 2,000 lbs leaf spring axle. A standard two-inch ball coupling and two standard safety chains allow for easy hookup and towing.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Engine: Kubota D1105-E4BG1
Engine Type: 4 Cycle Water Cooled Diesel
Engine Speed: 1800 RPM
No. of Cylinders: 3
Generator: 6000W Mecc Alte LT3N-130/4
Voltage: 240V 1PH, 60Hz
Battery: 12V
Receptacles: (1) 30A L6-30R [240V], (1) 20A 5-20R Duplex [120V]
Fuel Cell Capacity: 44.9 Gallons
Runtime: 60+ Hours
Noise Level: 72 dBA @ 23 ft
Mast Type: Manual Crank-Up
Boom Height: Up to 30`
Materials: Galvanized Steel 14ga Sheet Steel Enclosure
Operation: Manual Hand Crank Winch
Winch: 2500lb, Self-Braking
Stages: Three
Lamp Type: Metal Halide
Lamp Qty: 4
Total Lumens: 440,000 (110,000 per lamp)
Luminous Efficacy: 110 lm/w
Efficacy Luminous : 110 lm/w
: Kubota D1105-E4BG1 4 Cycle Water Cooled Diesel 1800 RPM 3 240V 1PH, 60Hz 12V (1) 30A L6-30R [240V], (1) 20A 5-20R Duplex [120V] 44.9 Gallons 60+ Hours 72 dBA @ 23 ft Manual Crank-UpUp to 30` Galvanized Steel Manual Hand Crank Winch 2500lb, Self-Braking Three Metal Halide 4 440,000 (110,000 per lamp)Luminous Efficacy 110 lm/w Neutral White - 4100K 20,000 hours 6 to 7 Acres 14ga Sheet Steel Enclosure2in ball / pintle combo Industrial Grade Paint (1) 2,000 lbs Leaf Springs(4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling JacksDOT Approved tail, side, brake, and directional lights (2) 14" Steel Rims Regular 171.6" x 56.29" x 57.08" 1-214-616-6180 2116.4 lbs 1(647) 254-9757 - 1-903-498-3364 - info@purilite.ca
Color Temperature: Neutral White - 4100K
Life Expectancy: 20,000 hours
Coverage: 6 to 7 Acres
Materials: Galvanized Steel 14ga Sheet Steel Enclosure
Hitch: 2in ball / pintle combo
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs
Suspension: Leaf Springs
Outriggers: (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 14" Steel Rims
Tires: Regular
Dimensions: 171.6" x 56.29" x 57.08" -
Weight: 2116.4 lbs -
Shipping Dimensions: -
Shipping Weight: -
