25' Telescoping Metal Halide Light Tower - 7,500W Generator - Water Cooled Diesel Engine - 30 Gal
25' Telescoping Metal Halide Light Tower - 7,500W Generator - Water Cooled Diesel Engine - 30 Gal
WCDE-4-MHL-MOD2 Mobile Light Tower | Protection |
Genset Specs: | 6.8KW Kubota Genset |
Engine: Kubota Z482 EPA Tier 4 | 30 Gallon Fuel Cell |
Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine | Up to 50+ Hour Continuous Operation |
Engine Speed: 3600 RPM | External Grounding |
No. of Cylinders: 2 | Low Oil, High Engine Temp Auto Shut-Off |
Generator: Sincro EK 2 MCT | Hour Meter - Alternator Warning |
Voltage: 120/240 Single Phase | High Output MH Lamps |
Battery 12V | 440,000 Total Lumen Output |
Fuel Cell Capacity: 30 Gallons | Independently Adjustable Light Heads |
Fuel Delivery: Electric | Individual Light Switch Circuit Breakers |
Noise Level: Db level 73 @ 23 ft | Dial-in Adjustability per light head |
Receptacles: (1) 50A Twist-lock C56369 [120/240V] rated at 25A, (1) 30A Twist-lock L14-30R [120/240V], (1) 30A Twist-lock L5-30R [120V] rated at 25A, (2) 20A 5-20R (one duplex) [120V] | 110 Lumens Per Watt Efficiency |
Steel Trailer w/ Industrial Grade Paint Finish | |
Light Mast Specs: | Four Point Outrigger System |
Mast Type: Manual Crank-Up | Withstands 50Mph Winds at Full Extension |
Boom Height: Up to 25` |  |
Materials: Galvanized Steel | |
Operation: Manual Hand Crank Winch | |
Winch: 2500lb, Self-Braking | |
Stages: Five | |
Light Specs: | |
Lamp Type: Metal Halide | |
Lamp Qty: 4 | |
Total Lumens: 440,000 (110,000 per lamp) | |
Luminous Efficacy: 110 lm/w | |
Color Temperature: Neutral White - 4100K | |
Life Expectancy: 20,000 hours | |
Coverage: 6 to 7 Acres | |
Trailer Specs | |
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis | |
Hitch: 2in ball / pintle combo | |
Finish: Industrial Grade Paint | |
Axle: (1) 2,000 lbs | |
Suspension: 2,000 lbs Double Eye Leaf Springs | |
Outriggers: (4) Adjustable Outriggers w/ 2,500 lbs Manual Leveling Jacks | |
Lighting: DOT Approved tail, side, brake, and directional lights | |
Wheels: (2) 13" 5x4.5 Steel Rims | |
Tires: 155R13 | |
Shipping Dimensions: 72"L x 48"W x 108"H | |
Shipping Weight: 1600 lbs |
Made in Texas

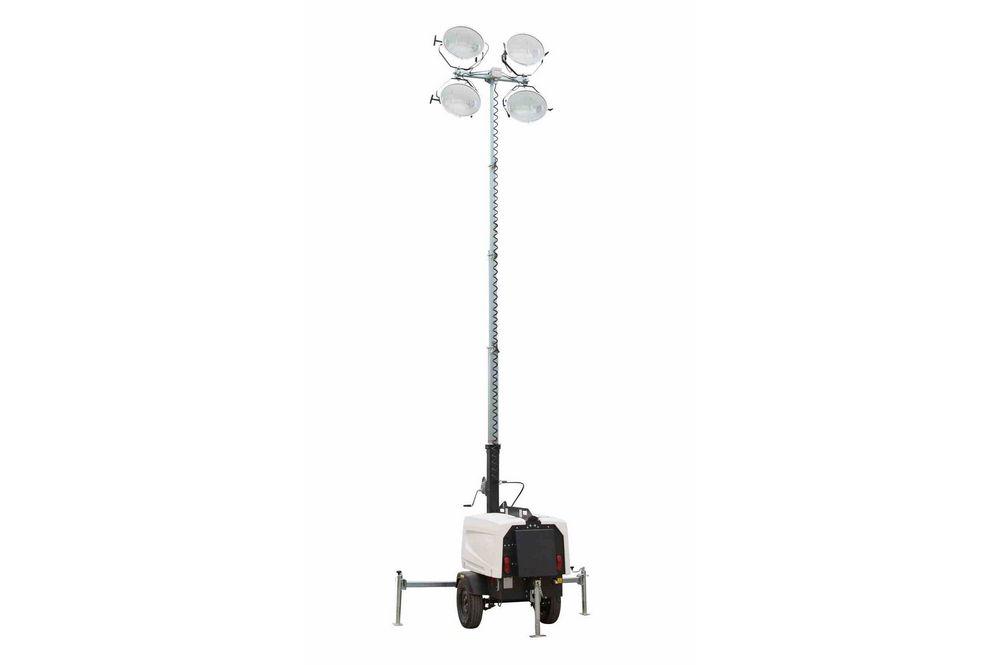

The WCDE-4-MHL-MOD2 mobile light tower from Larson Electronics is a towable lighting package powered by a water cooled diesel engine turning a single bearing 7,500 watt generator. With four 1,000 watt metal halide lamps producing 440,000 lumens, this unit will illuminate a 6-7 acre area continuously without refueling for up to 50 hours. This metal halide light tower contains a 30-gallon fuel tank and receptacles.
The WCDE-4-MHL-MOD2 mobile light tower is a self contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering a 7,500 watt generator, which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. This unit can run uninterrupted for 50 hours straight without refueling and includes a telescoping light mast which can elevate the four metal halide lamps to a height of 25 feet. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations and anywhere an extended operation capable mobile lighting solution is needed.
|
|||||||||||||
 |
