Made in the USA

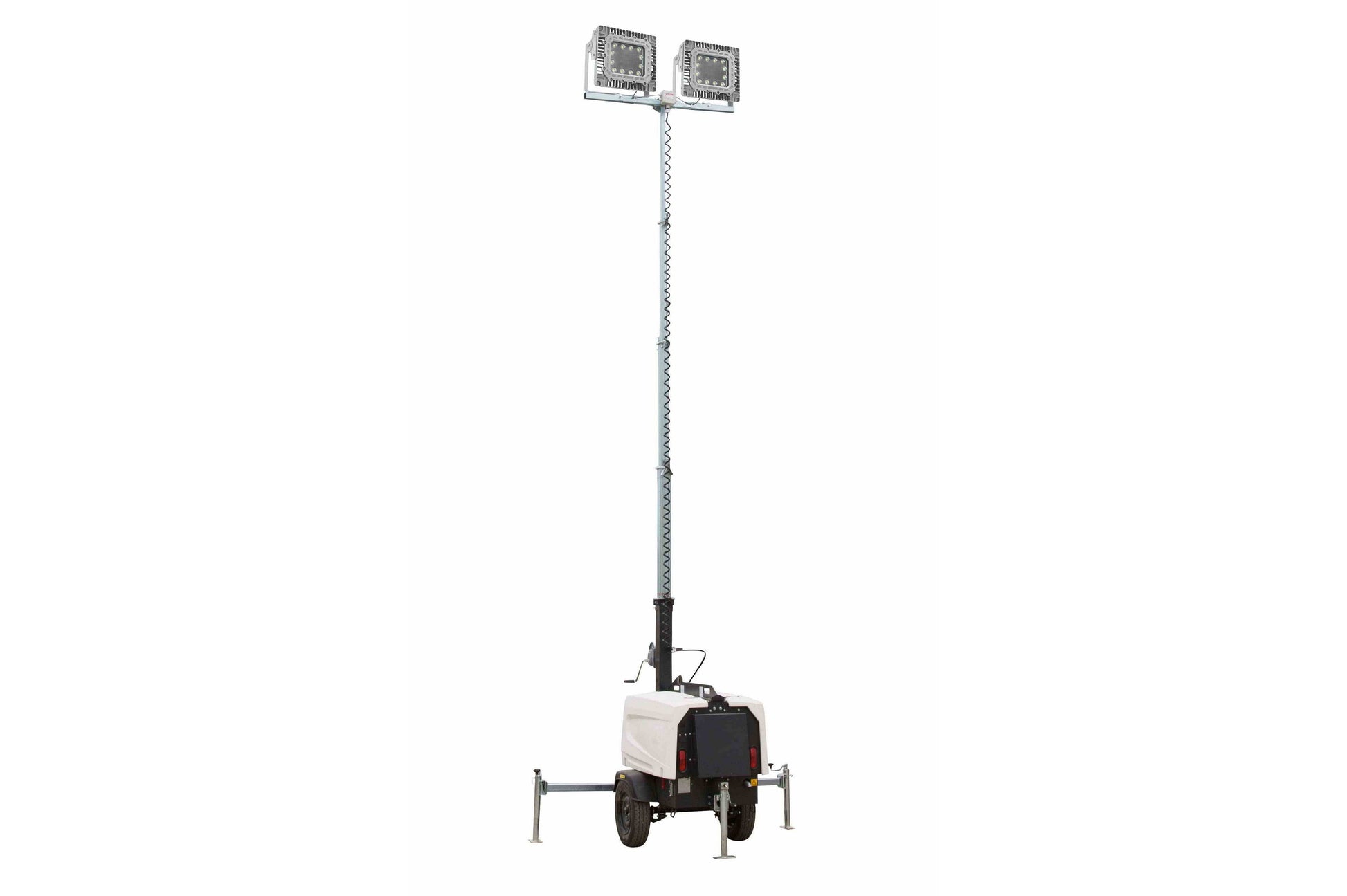

The WCDE-HAL-6-2X150RT-LED Explosion Proof Telescoping Tower from Larson Electronics is a towable, self-contained LED light plant powered by a water cooled diesel engine turning a single bearing 4 pole generator which produces 6,000 watts at 120/240V @ 60Hz for combustible work sites and hazardous locations. The two 150-watt C1D2 LED lamps included with this unit produce a combined total of 35,000 lumens, which can illuminate a 3-4 acre area. This 300-watt LED lighting package is a direct replacement for metal halide light plants. This trailer mounted light tower and generator set comes equipped with a spark arrestor and a 30 gallon fuel tank that will run continuously without refueling for up to 120 consecutive hours.
The WCDE-HAL-6-2X150RT-LED exlosion proof LED light tower is a self-contained towable light tower package that produces enough light to illuminate an area up to 4 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to two C1D2 150-watt explosion proof LED lamps producing 17,500 lumens each for a combined total of 35,000 lumens of light. This unit can run uninterrupted for 120 hours straight without refueling and includes a telescoping light mast which can elevate the two LED lamps to a height of 25 feet. This mobile floodlight package is ideal for C1D2/C2D1 flammable work sites, hazardous locations and anywhere an extended operation cable mobile lighting solution is needed.
This explosion proof LED light tower is equipped with a spark arrestor to prevent the ignition of combustible substances in the environment.
The WCDE-HAL-6-2X150RT-LED mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 120+ hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 Hz. The generator uses a two wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Lights:
The LED explosion proof light tower is equipped with two Class 1 Division 2, Class 2 Division 1 & 2 explosion proof light fixtures. The units provide 17,500 lumens of high quality light while drawing only 150 watts each, for a combined total of 35,000 lumens and 300 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
The explosion proof LED lights are universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. The fixtures are IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
The explosion proof LED fixtures come with a color temperature of 5000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4000K natural white color temperature options (longer lead times may apply for non-standard temperatures).
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Controls:
The operations system for this unit is a centrally located control panel within the light tower enclosure. Two circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240V twist lock power receptacle.
Telescoping Boom:
The telescoping boom consists of three sections extending up to 25 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 51 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two rear outriggers are adjustable and include 1,000 lbs. swivel jacks for leveling and stabilizing the tower.
Housing:
All of the operating components are housed within a protective compartment constructed of recyclable LMDPE (linear medium density polyethalene) plastic. This material is extremely corrosion resistant and retains its orignal appearance even after years of use. The enclosure is high impact crack resistant and retains resale value for longer than metal counterparts while also minimizing environmental impact. The highly durable plastic material is fully UV stabilized, contains long term antioxidants and is resistant to both high and low temperatures. The plastic enclosure of the WCDE-HAL-6-2X150RT-LED is significantly lighter than comparable metal enclosures while offering a more attractive appearance. A vertical lift door provides access to the interior while latches provide secure closing while the unit is in use. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs. leaf spring axle. A standard two inch ball coupling, three inch pintle hitch and two standard safety chains allow for easy hookup and towing.
Applications:
Hazardous locations, explosive work sites, outdoor locations, elevated lighting, oil and gas, petrol processing, construction, mining, security, perimeter lighting and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Genset Specs:
Engine:
Engine Type:
Engine Speed:
No. of Cylinders:
Generator: Marathon Pancake 6KW 4-Pole Brushless
Voltage: 120/240V Single Phase 100-277V AC, 50/60Hz
Auxiliary Power Supplies): 120V Duplex Receptacle, 240V Twist Lock
Battery 12V
Fuel Cell Capacity:
Fuel Delivery:
Noise Level: Db level 63 @ 23 ft.
Combustible Safety: Spark Arrestor
Light Mast Specs:
Mast Type: Manual Crank-Up
Boom Height: Up to 25`
Materials: Galvanized Steel Copper Free Cast Aluminum (Housing), Hardened Borosilicate Glass (Lens), Silicone (Gasket) Plastic Enclosure, 12ga Formed Steel Chassis
Operation: Manual Hand Crank Winch
Winch: (2) 1500lb, Self-Braking
Stages: Three
LED Light Specs:
Lamp Type: Cree® LED
Voltage: 120/240V Single Phase 100-277V AC, 50/60Hz
Total Watts: 300 (150W per lamp)
Total Lumens: 35,000 (17,500 per lamp)
Luminous Efficiency: 116.67 Lm/W
LED Color Temperature: 5,000K
LED Life Expectancy: 60,000+ hours
Lighting Configuration: Flood
Beam Angle: 60° or 125°
Mounting: 3/4†Pendant & Swivel Mount
Materials: Galvanized Steel Copper Free Cast Aluminum (Housing), Hardened Borosilicate Glass (Lens), Silicone (Gasket) Plastic Enclosure, 12ga Formed Steel Chassis
Ambient Temperature Range: -50° C to +65°C
Temp Rating: T5
Waterproof Rating: IP67
Trailer Specs
Materials: Galvanized Steel Copper Free Cast Aluminum (Housing), Hardened Borosilicate Glass (Lens), Silicone (Gasket) Plastic Enclosure, 12ga Formed Steel Chassis
Hitch: 2" Ball Coupler and 3" Pintle Hitch
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs.
Suspension: 2,000 lbs. Double Eye Leaf Springs
Outriggers: (2) Adjustable Outriggers w/ 2,500 lbs. Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: ST175/80/D13
Made in the USA
The WCDE-HAL-6-2X150RT-LED Explosion Proof Telescoping Tower from Larson Electronics is a towable, self-contained LED light plant powered by a water cooled diesel engine turning a single bearing 4 pole generator which produces 6,000 watts at 120/240V @ 60Hz for combustible work sites and hazardous locations. The two 150-watt C1D2 LED lamps included with this unit produce a combined total of 35,000 lumens, which can illuminate a 3-4 acre area. This 300-watt LED lighting package is a direct replacement for metal halide light plants. This trailer mounted light tower and generator set comes equipped with a spark arrestor and a 30 gallon fuel tank that will run continuously without refueling for up to 120 consecutive hours.
The WCDE-HAL-6-2X150RT-LED exlosion proof LED light tower is a self-contained towable light tower package that produces enough light to illuminate an area up to 4 acres in size. This unit contains a water cooled diesel engine powering a 6,000 watt generator, which supplies the current to two C1D2 150-watt explosion proof LED lamps producing 17,500 lumens each for a combined total of 35,000 lumens of light. This unit can run uninterrupted for 120 hours straight without refueling and includes a telescoping light mast which can elevate the two LED lamps to a height of 25 feet. This mobile floodlight package is ideal for C1D2/C2D1 flammable work sites, hazardous locations and anywhere an extended operation cable mobile lighting solution is needed.
This explosion proof LED light tower is equipped with a spark arrestor to prevent the ignition of combustible substances in the environment.
The WCDE-HAL-6-2X150RT-LED mobile light tower incorporates a long list of impressive features. The diesel engine is a water cooled Kubota that operates at 1800 rpm. This engine features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 120+ hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces 120/240 volt current at 60 Hz. The generator uses a two wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems.
Lights:
The LED explosion proof light tower is equipped with two Class 1 Division 2, Class 2 Division 1 & 2 explosion proof light fixtures. The units provide 17,500 lumens of high quality light while drawing only 150 watts each, for a combined total of 35,000 lumens and 300 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
The explosion proof LED lights are universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. The fixtures are IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
The explosion proof LED fixtures come with a color temperature of 5000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4000K natural white color temperature options (longer lead times may apply for non-standard temperatures).
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Controls:
The operations system for this unit is a centrally located control panel within the light tower enclosure. Two circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240V twist lock power receptacle.
Telescoping Boom:
The telescoping boom consists of three sections extending up to 25 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 51 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two rear outriggers are adjustable and include 1,000 lbs. swivel jacks for leveling and stabilizing the tower.
Housing:
All of the operating components are housed within a protective compartment constructed of recyclable LMDPE (linear medium density polyethalene) plastic. This material is extremely corrosion resistant and retains its orignal appearance even after years of use. The enclosure is high impact crack resistant and retains resale value for longer than metal counterparts while also minimizing environmental impact. The highly durable plastic material is fully UV stabilized, contains long term antioxidants and is resistant to both high and low temperatures. The plastic enclosure of the WCDE-HAL-6-2X150RT-LED is significantly lighter than comparable metal enclosures while offering a more attractive appearance. A vertical lift door provides access to the interior while latches provide secure closing while the unit is in use. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast. The entire unit is mounted onto a two wheel trailer with a 2,000 lbs. leaf spring axle. A standard two inch ball coupling, three inch pintle hitch and two standard safety chains allow for easy hookup and towing.
Applications:
Hazardous locations, explosive work sites, outdoor locations, elevated lighting, oil and gas, petrol processing, construction, mining, security, perimeter lighting and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Genset Specs:
Engine:
Engine Type:
Engine Speed:
No. of Cylinders:
Generator: Marathon Pancake 6KW 4-Pole Brushless
Voltage: 120/240V Single Phase 100-277V AC, 50/60Hz
Auxiliary Power Supplies): 120V Duplex Receptacle, 240V Twist Lock
Battery 12V
Fuel Cell Capacity:
Fuel Delivery:
Noise Level: Db level 63 @ 23 ft.
Combustible Safety: Spark Arrestor
Light Mast Specs:
Mast Type: Manual Crank-Up
Boom Height: Up to 25`
Materials: Galvanized Steel Copper Free Cast Aluminum (Housing), Hardened Borosilicate Glass (Lens), Silicone (Gasket) Plastic Enclosure, 12ga Formed Steel Chassis
Operation: Manual Hand Crank Winch
Winch: (2) 1500lb, Self-Braking
Stages: Three
LED Light Specs:
Lamp Type: Cree® LED
Voltage: 120/240V Single Phase 100-277V AC, 50/60Hz
Total Watts: 300 (150W per lamp)
Total Lumens: 35,000 (17,500 per lamp)
Luminous Efficiency: 116.67 Lm/W
LED Color Temperature: 5,000K
LED Life Expectancy: 60,000+ hours
Lighting Configuration: Flood
Beam Angle: 60° or 125°
Mounting: 3/4†Pendant & Swivel Mount
Materials: Galvanized Steel Copper Free Cast Aluminum (Housing), Hardened Borosilicate Glass (Lens), Silicone (Gasket) Plastic Enclosure, 12ga Formed Steel Chassis
Ambient Temperature Range: -50° C to +65°C
Temp Rating: T5
Waterproof Rating: IP67
Trailer Specs
Materials: Galvanized Steel Copper Free Cast Aluminum (Housing), Hardened Borosilicate Glass (Lens), Silicone (Gasket) Plastic Enclosure, 12ga Formed Steel Chassis
Hitch: 2" Ball Coupler and 3" Pintle Hitch
Finish: Industrial Grade Paint
Axle: (1) 2,000 lbs.
Suspension: 2,000 lbs. Double Eye Leaf Springs
Outriggers: (2) Adjustable Outriggers w/ 2,500 lbs. Manual Leveling Jacks
Lighting: DOT Approved tail, side, brake, and directional lights
Wheels: (2) 13" 5x4.5 Steel Rims
Tires: ST175/80/D13
