WCDE-HG-6-WCDE-6-4X1000W-M1 Mobile Light Tower | Features |
Genset Specs | Kubota Genset |
Engine: Kubota | 30 Gallon Fuel Cell |
Type: Liquid Cooled w/ Auto-shut Off Protection | Up to 60+ Hour Continuous Operation |
Engine Speed: 1800 RPM | External Grounding |
No. of Cylinders: 3 | Low Oil, High Engine Temp Auto Shut-Off |
Exhaust: Tier 4 | Hour Meter - Alternator Warning |
Generator: 8KW Marathon Pancake Brushless Alternator | High Output MH Lamps |
Voltage: 120/240V Single Phase 60Hz | 440,000 Total Lumen Output |
Amps: 50/25A | Independently Adjustable Light Heads |
Receptacles: (1) NEMA 5-20R 120 V AC 20 Amp GFCI Duplex Outlet & (1) NEMA L6-30R 240 V AC 30 Amp Twistlock Outlets | Individual Light Switch Circuit Breakers |
Battery 440 CCA Wet Cell Battery | Dial-in Adjustability per light head |
Fuel Cell Capacity: 30 Gallons | 110 Lumens Per Watt Efficiency |
Fuel Delivery: Electric | Steel Trailer w/ Hot Dipped Galvanized Finish |
Runtime: 60 Hours | Three Point Outrigger System |
Noise Level: Db level 68 @ 23 ft | Withstands 50 Mph Winds at Full Extension |
Internal Light Stowage | |
Bracket for Mounting License Plate w/ Light | |
Light Mast Specs | (2) Parts/Service Manuals Included |
Mast Type: Manual Crank-Up | 55 Mph Limit for Towing |
Boom Height: Up to 30' |  |
Mast Rotation: 360° |  |
Materials: Galvanized Steel |  |
Operation: Manual Hand Crank Winch |  |
Winch: 1500 lb, Self-Braking |  |
Stages: Four | |
Light Specs | |
Lamp Type: Metal Halide | |
Lamp Qty: 4 | |
Total Lumens: 440,000 (110,000 per lamp) | |
Luminous Efficacy: 110 Lm/W | |
Color Temperature: Neutral White - 4100K | |
Life Expectancy: 10,000 hours | |
Coverage: 6 to 7 Acres | |
Lighting Configuration: Flood | |
Protection: Individual Breakers, Quick Disconnect | |
Trailer Specs | |
Materials: 14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis | |
Hitch: 2in Ball / 2.5in Pintle Combo | |
Finish: Hot-dipped and Galvanized Finish | |
Axle Configuration: Single | |
Suspension: 2,200 lb Leaf Spring Axle |  |
Outriggers: (4) Adjustable Outriggers w/ 2,000 lbs Manual Leveling Jacks |  |
Lighting: DOT Approved Tail, Side, Brake, Recessed Rear and Directional Lights |  |
Doors: Stainless Steel w/ Hinges |  |
Lifting Components: (1) Crane Eyelet, Integrated Forklift Pockets |  |
Wheels: (2) 15" Blackwall Tubeless Tires | Special Orders - Requirements |
Tires: ST175/80D13 – 6 ply | |
Data Plate Info: Vehicle Nomenclature, Manufacturer's Model #/Serial #, Shipping Weight, Loading Cubage, Dimensions, Landing Gear/Axle Loads, Lift/Tie Down Info, Manufacturer's Address/Phone #, Date of Manufacture, NSN #, CN #, Part Lubrication Info | |
Transport Dimensions: Less than 84"-W x 78"-H x 180"-L | |
Total Weight @ Normal Operation: Less than 2,500 lbs | |
Shipping Weight: - |
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}

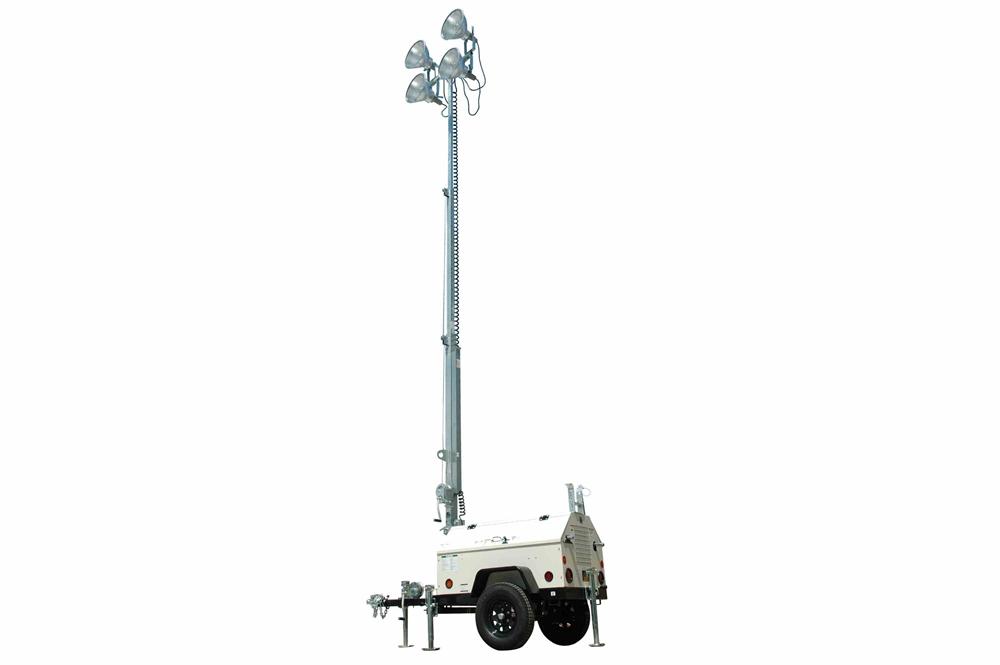

Made in Texas The WCDE-HG-6-WCDE-6-4X1000W-M1 mobile light tower from Larson Electronics is a Towable Lighting package powered by a water cooled diesel engine turning a single bearing 4 pole generator which produces 6,000 watts and single-phase 120/240 V @ 60 Hz. With four 1,000 watt metal halide lamps producing 440,000 lumens, this unit will illuminate a 5-7 acre area continuously without refueling for 60 hours via a 30-gallon fuel tank. All lights are sealed for protection from moisture, rain, dust, and rough weather conditions. The WCDE-HG-6-WCDE-6-4X1000W-M1 mobile light tower is a self contained towable light tower package that produces enough light to illuminate an area up to 7 acres in size. This unit contains a water cooled diesel engine powering an 6,000 watt generator, which supplies the current to four 1,000 watt metal halide lamps producing 110,000 lumens each for a combined total of 440,000 lumens of light. This unit can run uninterrupted for 60 hours straight without refueling and includes a telescoping light mast which can elevate the four metal halide lamps to a height of 30 feet. The system is designed for operation in rainy, dusty, windy and rugged environments. This mobile floodlight package is ideal for emergency services, large scale event illumination, construction, mining, industrial operations, and anywhere an extended operation capable mobile lighting solution is needed. The WCDE-HG-6-WCDE-6-4X1000W-M1 mobile light tower incorporates a long list of impressive features. The liquid cooled diesel engine operates at 1800 RPM. This engine with a tier 4 exhaust features key operated electric starting, a full twelve volt electrical system, automatic low oil pressure and high temperature safety shutoffs, dual fuel filters, and easy access oil and radiator drain ports to facilitate maintenance. A 30 gallon fuel tank allows the engine to operate for 60 hours continuously without refueling. The 6,000 watt generator is a single bearing design and produces single-phase 120/240 volt current at 60Hz. The generator uses a four wire hookup system with an external ground allowing for setting up both electrical and mechanical safe grounding systems. Lights: The lighting system on this unit is comprised of four 1,000 watt metal halide lamps producing 110,000 lumens of light each attached to the end of the telescoping light boom. These floodlights produce a wide flood light pattern capable of illuminating 7 acres with a combined total of 440,000 lumens of light. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. Controls: The operations system for this unit is a centrally located control panel within the light tower enclosure. Four circuit breaker protected switches allow individual control of the lights while an individual hour meter tracks unit operating time. Also included is an alternator warning light, fuel primer system, preheating switch, 120 volt GFCI duplex receptacle for auxiliary power takeoff and a 240 V twist lock power receptacle. Telescoping Boom: The telescoping boom consists of four sections extending up to 30 feet through the use of two manual self braking winches and allows for rotating the lights 360 degrees. One winch is mounted to the trailer tongue and acts to raise the tower into a vertical position while the other is mounted to the boom and is used to extend the tower to the desired height. An accessible bracket is available for mounting a license plate with the lighting system. The telescoping boom is constructed of galvanized steel to resist rusting and corrosion and is capable of withstanding 50 mph winds when extended to its full height and the stabilizing outriggers are deployed. The stabilizing outriggers are a three point design with one located under the trailer tongue and two on the rear sides of the unit. The two side outriggers are adjustable and include 3,000 lb swivel jacks for leveling and stabilizing the tower. Housing: All of the operating components are housed within a protective compartment constructed of 14 gauge steel and designed to provide airflow for cooling. Stainless steel side doors with hinges provide access to the interior while latches provide secure closing while the unit is in use. The design and construction of this enclosure along with the commercial grade muffler system helps this unit operate at a low 68 Db noise level @ 23 ft. The entire unit can be loaded and unloaded onto trucks via forklift sleeves mounted to the outer section of the light mast or a single lifting eyelet suitable for use with cranes. The entire unit is mounted onto a two-wheel trailer with a 3,500 lb leaf spring axle. A standard two inch ball coupling and two standard safety chains allow for easy hookup and towing. Two sets of parts/service manuals are included with this unit. |
- 1.1. Engine
- 1.1.1. Liquid cooled, diesel engine
- 1.1.2. Standby – 12.2 hp @ 1800 rpm
- 1.1.3. Prime – 10.5 hp @ 1800 rpm
- 1.1.4. 3 cylinder
- 1.1.5. 0.95 L displacement
- 1.1.6. Fuel consumption (prime) – 0.50 gph (1.89 Lph)
- 1.1.7. 60 Hz engine/generator
- 1.1.8. Industrial engine exhaust system
- 1.1.9. Rubber vibration dampers isolate engine/generator from frame 1.1.10. Cooling system capable of operating at 120°F
- 1.1.11. Full flow oil filter, spin on type
- 1.1.12. Fuel filter with replacement element
- 1.1.13. Dry type cartridge air filter
- 1.1.14. Polyethylene fuel tank with large diameter opening
- 1.1.14.1. 30-gal capacity
- 1.1.14.2. 60-hr run capacity
- 1.1.14.3. 3 ½-in fill port
- 1.2. Engine Controls
- 1.2.1. Engraved, aluminum punched and anodized control panel
- 1.2.2. Four (4) position keyed switch – glow plugs (preheat, off, run, start) 1.2.3. Hour meter
- 1.2.4. Automatic low oil/high temperature shutdown system
- 1.3. Generator
- 1.3.1. Brushless
- 1.3.2. 6 kW standby output
- 1.3.3. 120/240 VAC – 50/25A
- 1.3.4. +/-6% capacitor voltage regulation
- 1.4. Electrical System and Controls
- 1.4.1. Individual floodlight circuits with 15A breakers
- 1.4.2. Ballast indicator lights
- 1.4.3. 30A start limit breaker
- 1.4.4. Standard individually breakered convenience outlets:
- 1.4.4.1. (1) 120 VAC 20 Amp GFCI duplex outlets (Nema 5-20R type) 1.4.4.2. (1) 240 VAC 30 Amp twistlock outlets (Nema L6-30R type) 1.4.5. 440 CCA wet cell battery
- 1.5. Floodlights
- 1.5.1. Four light fixtures – 1000 watts each – metal halide
- 1.5.2. Oval aluminum reflector
- 1.5.3. Tempered glass lens
- 1.5.4. Silicone gaskets for moisture and dust protection
- 1.5.5. Individual floodlight On/Off switches
- 1.6. Wiring
- 1.6.1. All wiring is sized to the amperage draw required
- 1.6.2. AC and DC wiring diagrams are provided
- 1.7. Mast
- 1.7.1. 30-ft maximum extension, 3-section, tubular steel
- 1.7.2. Urethane guides on all sides of mast tubes
- 1.7.3. Industrial black powder coat finish
- 1.7.4. Automatic locking system in horizontal position for travel
- 1.7.5. 1500-lb automatic self-braking winches
- 1.7.6. 360° rotation with locking system
- 1.7.7. Coiled mast cord
- 1.7.8. Dual winch system located at ergonomic height allowing single person operation 1.7.9. Equipped with single lifting eye and fork pockets
- 1.8. Enclosure
- 1.8.1. Steel enclosure – 14-gauge
- 1.8.1.1. UV and fade resistant, high temperature cured, white polyester powder paint 1.8.1.2. 68 dB(A) at 23 ft – prime power
- 1.8.2. Stainless steel hinges on doors
- 1.8.3. Multi-lingual operating/safety decals
- 1.8.4. License plate holder with light
- 1.8.5. Manual holder with operating manual
- 1.9. Trailer
- 1.9.1. Mast support – 3-in square tube, 1/4-in wall
- 1.9.2. Removable tongue – 48-in long
- 1.9.3. Tubular steel frame – 3/16-in wall
- 1.9.4. Four (4) 2,000-lb adjustable leveling jacks – 4-point stance
- 1.9.5. All jacks transport and lock in horizontal position for storage
- 1.9.6. Side outriggers – 8-ft 1/4-in span
- 1.9.7. Safety chains with spring loaded safety hooks
- 1.9.8. Split hitch; 2-in ball hitch and pintle hook lunette
- 1.9.9. Single wall polyethylene fenders
- 1.9.10. DOT approved tail, side, brake, and directional lights
- 1.9.10.1. Recessed rear lights
- 1.9.11. 2,200-lb. leaf spring axle
- 1.9.12. ST175/80D13 – 6 ply
- 1.9.13. 40.75-in axle span
