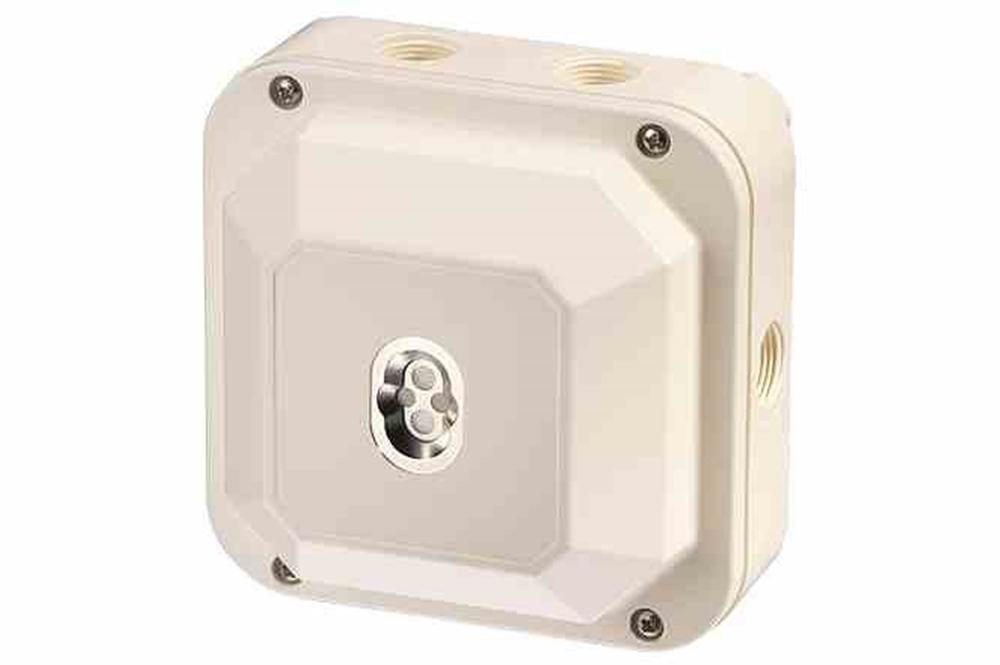

Infrared Flame Detector - (3) Infrared Sensors - Built-in Alarm Indicator
Infrared Flame Detector - (3) Infrared Sensors - Built-in Alarm Indicator
Sold by: LARSON ELECTRONICS
| XLE-FA-FD-IR-3X-R1 Infrared Flame Detector | Features/Ratings |
| Unit Type: Infrared Flame Detector | EN 54-10, EN 54-17 Standards |
| Dimensions: 5.31"L x 5.31"W x 3.03"H | VdS: G204010 |
| Weight: - | LPCB: 126bc/05 |
| Operating Voltage: 12-33 V DC (Addressed); 14-28 V DC (Collective) | DNV GL (Marine): MEDB00003UN |
| Operating Current: 0.7 mA (Addressed); 0.5 mA (Collective) | FDnet: FS20, AlgoRex, SIGMASYS |
| External Alarm Indicators: 2 | C-NET: FS720, FC360 |
| Operating Temperature: -35°C - +70°C |  |
| Storage Temperature: -40°C - +75°C |  |
| Air Humidity: ≤95% (Relative) |  |
| Communication Protocol: FDnet/C-NET or Collective (with and without current limitation) |  |
| Cable Cross Section: 0.2-1.5 mm² |  |
| Collective System Compatibility: CZ10, BC10, FC10, XC10, CS11, FC700A, FC330A, SIGMASYS, BMS, SM80/88/D100 |  |
| Color: White | Special Orders - Requirements |
| Waterproof Rating: IP67 | |
| Materials: Aluminum | |
| Housing Materials: Fiberglass Reinforced Plastic Housing | |
| Mount: Surface |
| The XLE-FA-FD-IR-3X-R1 from Larson Electronics is an Infrared Flame Detector that offers reliable flame detection with three infrared sensors. This flame detector can be used for both indoor and outdoor applications and utilizes fuzzy logic and wavelet analysis for superior false alarm immunity. The XLE-FA-FD-IR-3X-R1 detects infrared radiation which means that it can detect both liquid and gas fires with no smoke and organic fires with smoke. The XLE-FA-FD-IR-3X-R1 has an integrated line separator that allows the defective part of on the detector line is located by the fire control panel and then isolated between two FDnet/C-NET devices. The aluminum enclosure on this flame detector shields the unit against electromagnetic interference while the fiber-glass-reinforced plastic housing offers electronics protection. The built-in alarm indicator and collective signal processing make the XLE-FA-FD-IR-3X-R1 a great option when choosing an infrared flame detector. Mount: The XLE-FA-FD-IR-3X-R1 can be surface mounted. Applications: Industrial storage rooms, power plants, chemical production facilities, transformer stations, warehouses for chemicals, print shops, gas depots and pump stations, motor test beds, arc welding, malls, ferries and cargo ships, wood storage areas, machine rooms on ships, hangars for military and civil aircrafts, subway tunnels, and anywhere flame detection capabilities are needed, wanted, or required. |
