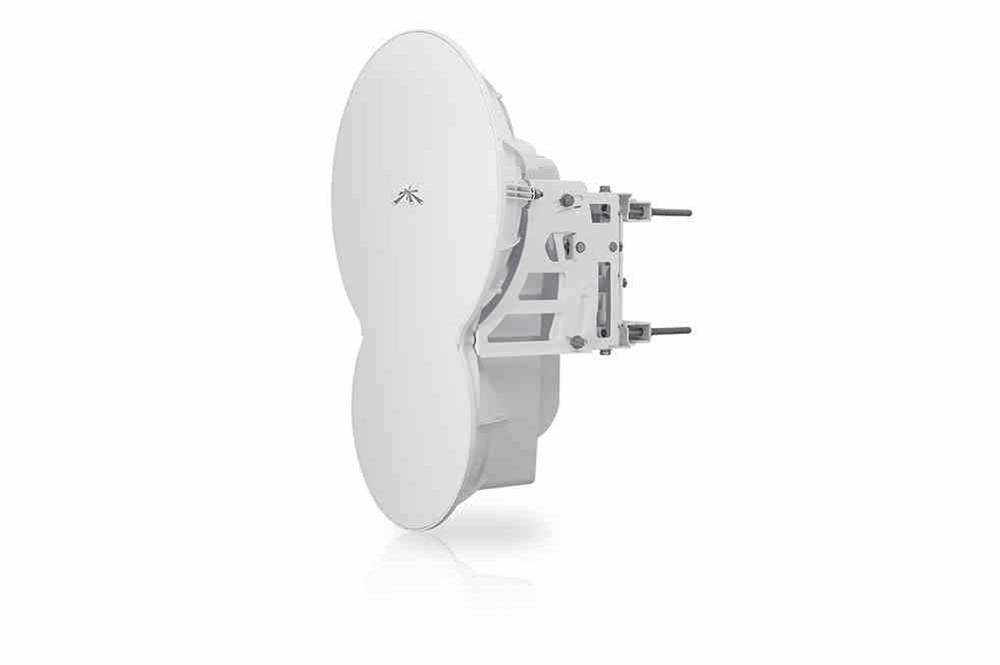

Wireless Antenna - 24 GHz Frequency - Range of 8.70 Miles - Pole Mount
Wireless Antenna - 24 GHz Frequency - Range of 8.70 Miles - Pole Mount
Sold by: LARSON ELECTRONICS
| XLE-NW-AT-24GZ-MS-R1 Wireless Antenna | Ratings |
| Dimensions: 25.55" x 16.77" x 11.93" | Certified to CE, FCC, IC |
| Weight: 23.13 lbs |  |
| Voltage: 50V (42-58V DC) Passive PoE |  |
| Max Power Consumption: <50W |  |
| Amps: 1.2A |  |
| Operating Frequency: 24.05 – 24.25 GHz |  |
| Maximum Throughput: 1.5+ Gbps |  |
| Maximum Range: 13 km (8.7 miles) |  |
| Packets per Second: > 1 million |  |
| Encryption: 128-bit AES |  |
| Uplink/Downlink Ratio: 50% Fixed |  |
| Latency: < 200 µs at Full Throughput (Full Duplex Mode), < 2 ms at Full Throughput (Half Duplex Mode) |  |
| MTU: Up to 9600 |  |
| LEDs: (8) Status LEDs - Data Port Speed, Data Port Link/Activity, Configuration Port Speed, Configuration Port Link/Activity, GPS Synchronization, Modulation Mode, Master/Slave and RF Status |  |
| Interface: (1) 10/100/1000 Ethernet Port - Data Port, (1) 10/100 Ethernet Port - Configuration Port, (1) RJ-12, Alignment Tone Port - Aux Port |  |
| Operating Temp: -40 to 55° C |  |
| Wind Load: 480 N @ 200 km/hr (108 lbf @ 125 mph) | |
| Wind Survivability: 200 km/hr (125 mph) | |
| Material: - | |
| Mount: Pole Mount | |
| Power: PoE GigE Adapter | |
| Ground Wire: Min 8AWG or 10mm |
| The Larson Electronics XLE-NW-AT-24GZ-MS-R1 Wireless Antenna is designed for seamless data transmission in industrial sites. With a 24.05 to 24.25 GHz operating frequency, this device is powered by passive PoE. Operators can mount the unit on poles (mounting kit included). The XLE-NW-AT-24GZ-MS-R1 is a powerful wireless antenna with an extended range of 8.7 miles. This unit offers 24 GHz point-to-point connection with 1.5+ Gbps maximum throughput. Equipped with 128-bit AES encryption, this device has a 50% fixed uplink/downlink ratio. There are eight status LEDs associated with the following features: Data Port Speed, Data Port Link/Activity, Configuration Port Speed, Configuration Port Link/Activity, GPS Synchronization, Modulation Mode, Master/Slave and RF Status. Accessible ports include: (1) 10/100/1000 Ethernet Port - Data Port, (1) 10/100 Ethernet Port - Configuration Port, (1) RJ-12, Alignment Tone Port - Aux Port. This wireless antenna is capable of sending more than 1 million packets per second. Power/Wiring: The XLE-NW-AT-24GZ-MS-R1 operates on 50V, Passive PoE. A 1.2A PoE GigE adapter is included with the device. Operators must provide a ground wire for this unit (min 8AWG or 10mm). Mount: This device comes with a pole mount kit that caters to installation on vertical poles and pipes. When installed properly, the wireless antenna can withstand wind loads up to 480 N @ 200 km/hr (108 lbf @ 125 mph). |
