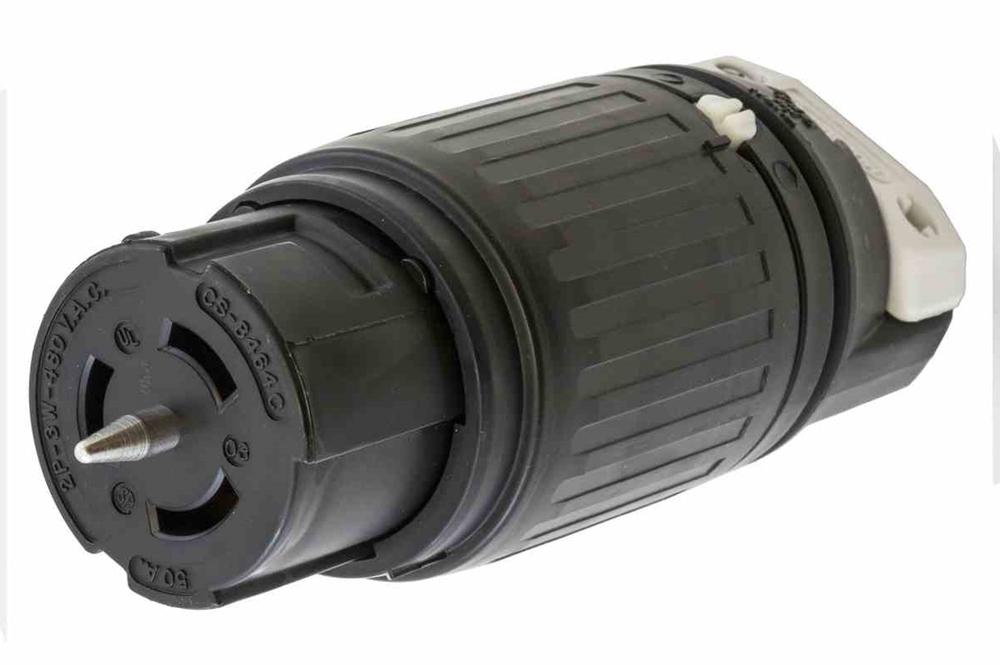

California Standard CS8464C, Twist-Lock 50-Amp Female Connector, 480V 1PH 2P3W, IP20

LARSON ELECTRONICSSKU: PL3-XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-C
filler

Prix:
Prix réduit$258.00

Description

Specifications / Additional Information
XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-C Industrial Connector Ratings/Features:
Type: California Standard 50A Twist Lock Connector Listed for United States and Canada
Dimensions:
Weight: 1.2 lbs Mating Plug: XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-P
Voltage: 480V AC Mating Receptacle: %Recpt%
Amps: 50A Mating Connector: XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-C
Max Wattage: 24000W Mating Inlet: XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-B
Configuration: 2-pole, 3-wire
Gender: Female Cross Compatible: CS8464C
Dielectric Voltage Withstand: 2,000V Minimum
Operating Temperature: -40°C to +75°C
Color: Black/White
Housing Material: Black Supertough Nylon
Hardware Material: Stainless Steel, Polyester, Brass
Terminal Gauge Accepted:  10-6 AWG
Cord Diameter Accepted: 0.830"-1.25"
' Product Overview '
The XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-C from Larson Electronics is a California Standard CS8464C Connector for completing electrical connections and power distribution systems. This 2-pole, 3-wire accessory accepts 10-6 AWG terminal gauges and 0.830"-1.25" cord diameters. Listed for the US and Canada, the 50-amp unit operates on 480V 1-Phase AC 50/60 Hz. The Larson Electronics XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-C is a California Standard 50-amp rated twist lock Female Connector for industrial applications. Capabile of supporting up to 24000W, this 50-amp XLE-PA-IP20-CS.50-50A-1PH-480V-2P3W-P is cross compatible with CS8464C, operates on 480V 1-Phase AC and operates on a 2-pole, 3-wire configuration. Capable of withstanding a dielectric voltage of 2,000V (minimum), the accessory accepts a terminal gauge size of 10-6 AWG and a cord diameter range of 0.830"-1.25". The device is constructed from durable materials with stainless steel, polyester and brass hardware, for a long-lasting wiring device solution.
